D-LINK 24 PORT SWITCH GIGA
D-LINK 24 PORT SWITCH GIGA
Couldn't load pickup availability

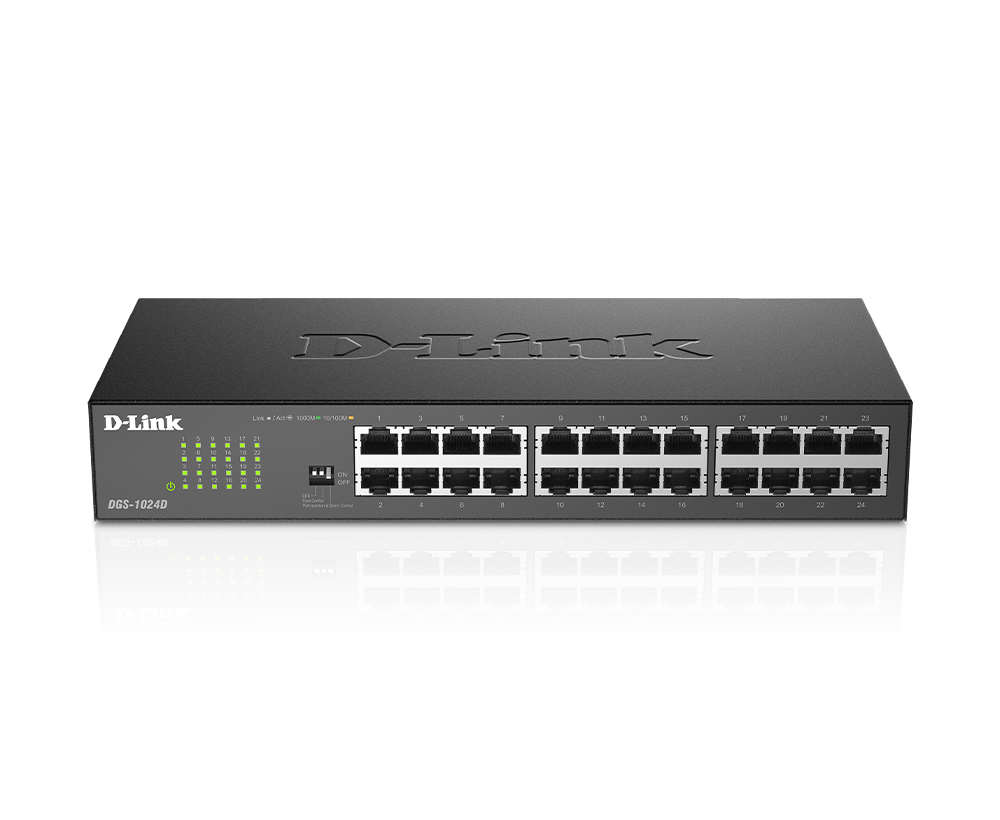

The D-Link DGS-1024D is a 24-port Gigabit Ethernet switch engineered to deliver seamless high-speed wired connectivity for growing business networks, server rooms, and office workgroups.
Product Specifications
|
Specification |
Details |
|---|---|
|
Model Number |
DGS-1024D |
|
Port Count |
24 × 10/100/1000 Mbps Gigabit RJ-45 Ports |
|
Switching Capacity |
48 Gbps (Non-Blocking) |
|
Forwarding Rate |
35.71 Mpps |
|
Packet Buffer Memory |
512 KB |
|
MAC Address Table |
8,192 Entries (8K) |
|
Jumbo Frames |
Up to 9,600 / 10,000 Bytes |
|
Ethernet Standard |
IEEE 802.3 (10BASE-T) |
|
Fast Ethernet Standard |
IEEE 802.3u (100BASE-TX) |
|
Gigabit Ethernet Standard |
IEEE 802.3ab (1000BASE-T) |
|
Flow Control |
IEEE 802.3x (Full-Duplex) |
|
Quality of Service (QoS) |
IEEE 802.1p |
|
Energy-Efficient Ethernet |
IEEE 802.3az (EEE) |
|
Auto-MDI/MDIX |
Supported on All Ports |
|
Form Factor |
19-inch 1U Rackmountable / Desktop |
|
Rackmount Brackets |
Included |
|
Power Supply |
Internal Universal AC Input |
|
Input Voltage |
100–240V AC, 50/60Hz |
|
Power Consumption |
Approx. 13.3–16W Maximum |
|
Operating Temperature |
0°C |
