Shieldplus
D-LINK CAT-6 I/O
D-LINK CAT-6 I/O
Regular price
Rs. 177.00
Regular price
Sale price
Rs. 177.00
Unit price
/
per
Taxes included.
Couldn't load pickup availability

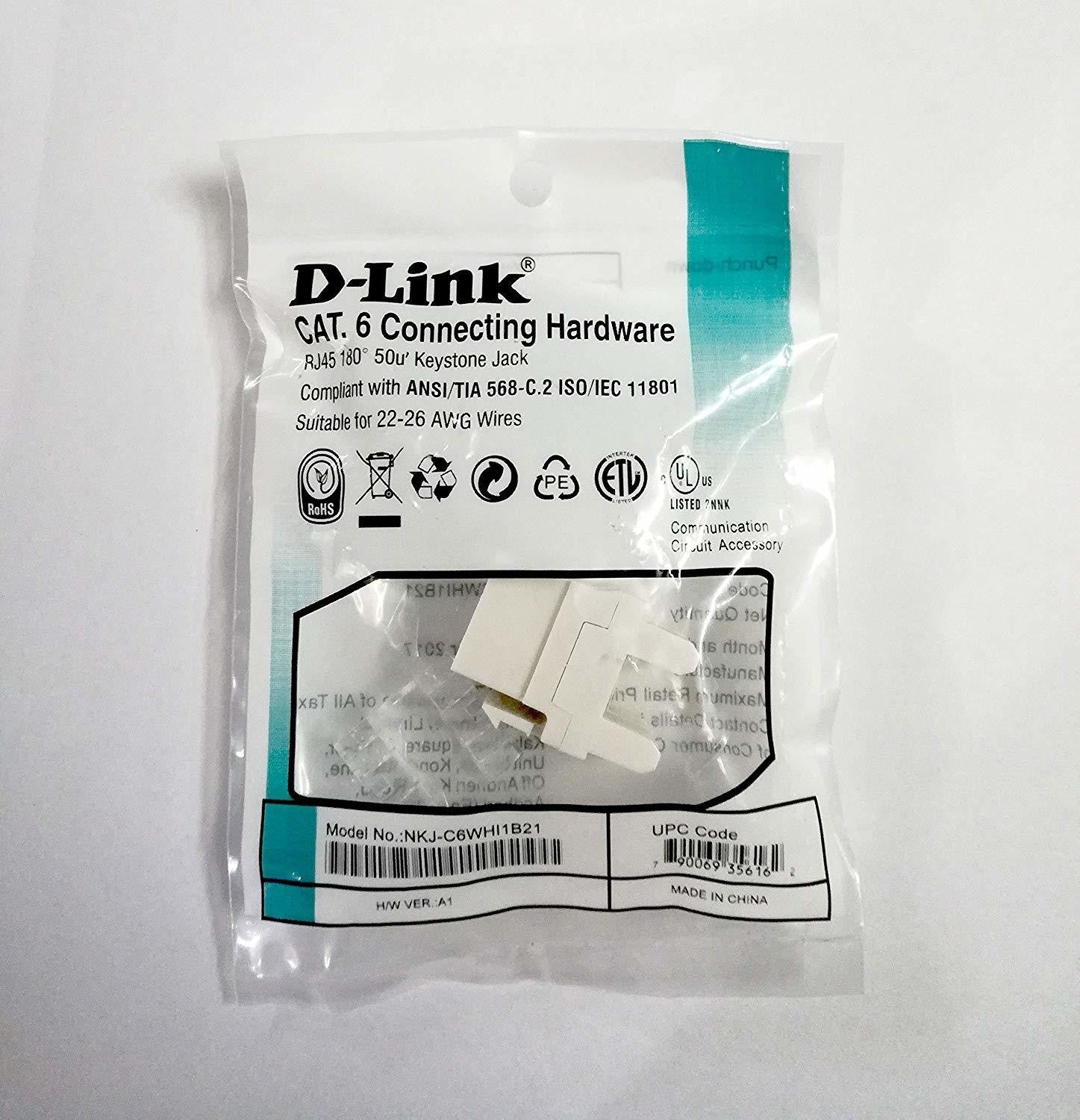

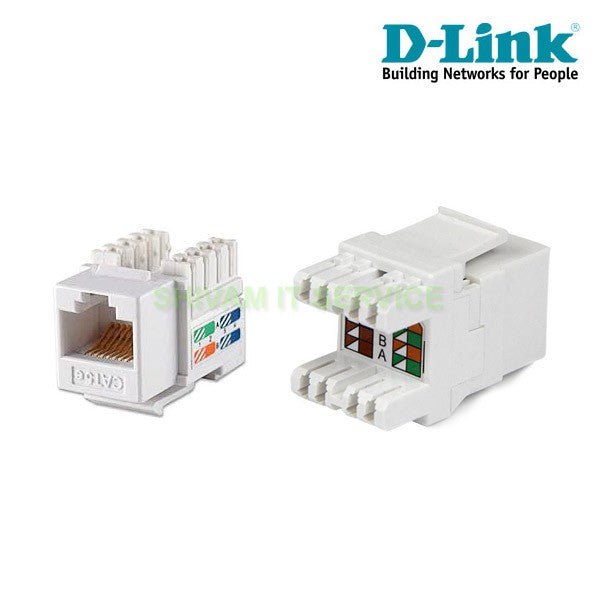

The D-Link I/O (Information Outlet) Keystone Jack is a high-performance modular RJ45 female connector designed for data transmission in structured cabling networks. It is engineered to terminate horizontal network cables (like Cat6) and snap securely into faceplates, surface mount boxes, or modular patch panels. Featuring a user-friendly toolless or standard punch-down design, it provides an airtight, low-attenuation termination point for high-speed network connections.
| Specification | Details |
|---|---|
| Connector Type | RJ45 8P8C (8 Position, 8 Contact) Female |
| Category Performance | Category 6 (Cat6) / Category 6A (Cat6A) |
| Bandwidth Performance | Up to 250 MHz (Cat6) or 500 MHz (Cat6A) |
| Contact Gold Plating | 50μ gold plating over nickel on the contact area for maximum durability and conductivity |
| IDC Terminal Material | Phosphor Bronze with tin plating over nickel, compatible with 22–26 AWG solid/stranded wires |
| Wiring Standard | Dual-color coded block supporting T568A and T568B wiring configurations |
| Housing Material | High-impact, flame-retardant ABS Plastic (UL94V-0 compliant) |
| Design | Slim-profile snap-in keystone design compatible with standard faceplates and patch panels |
| Compliance | ANSI/TIA-568-C.2, ISO/IEC 11801, and RoHS Certified |
