Shieldplus

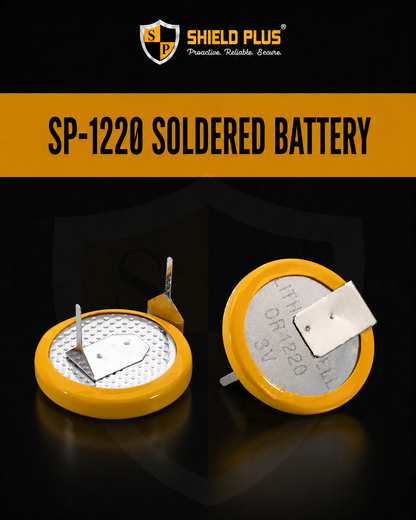

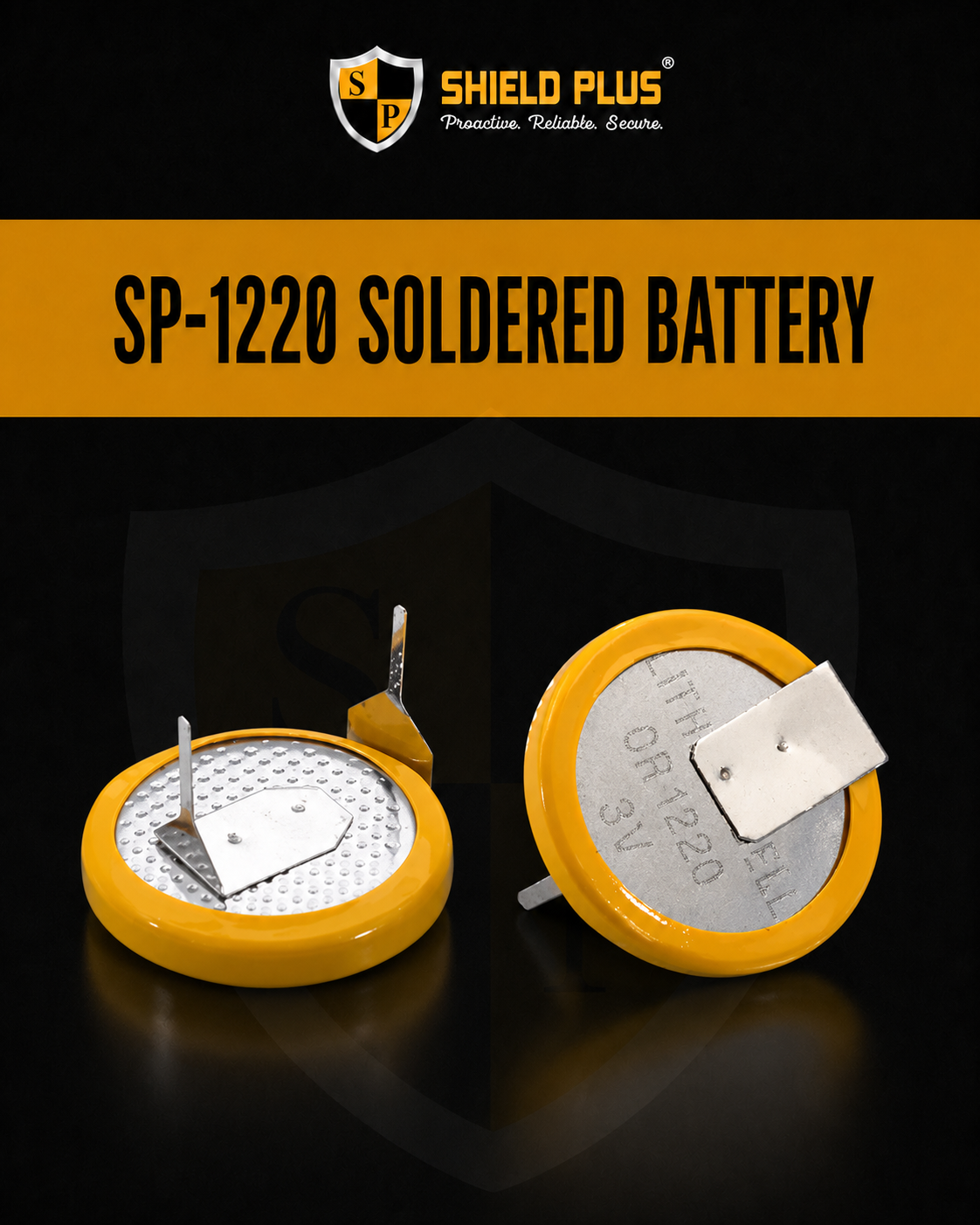

SP-1220 SOLDERED BATTERY
SP-1220 SOLDERED BATTERY
Regular price
Rs. 295.00
Regular price
Sale price
Rs. 295.00
Unit price
/
per
Taxes included.
Couldn't load pickup availability
High Vibration Resistance: Eliminates the risk of the battery slipping or popping out of a conventional spring-loaded holder during transit or operation.
Low Profile & Space Saving: Directly soldering the cell flat to a board removes the added physical bulk and height of a mechanical plastic battery socket.
Extended Shelf Life: Its low self-discharge rate gives it an active operational standby lifecycle of 5 to 7 years inside low-drain components.
Oxidation Prevention: The sealed solder joints prevent the contact point corrosion and oxidation common with loose-fitting coin cell clips over long periods.
| Feature / Specification | Standard Details |
|---|---|
| Battery Chemistry | Lithium Manganese Dioxide ($Li/MnO_2$) |

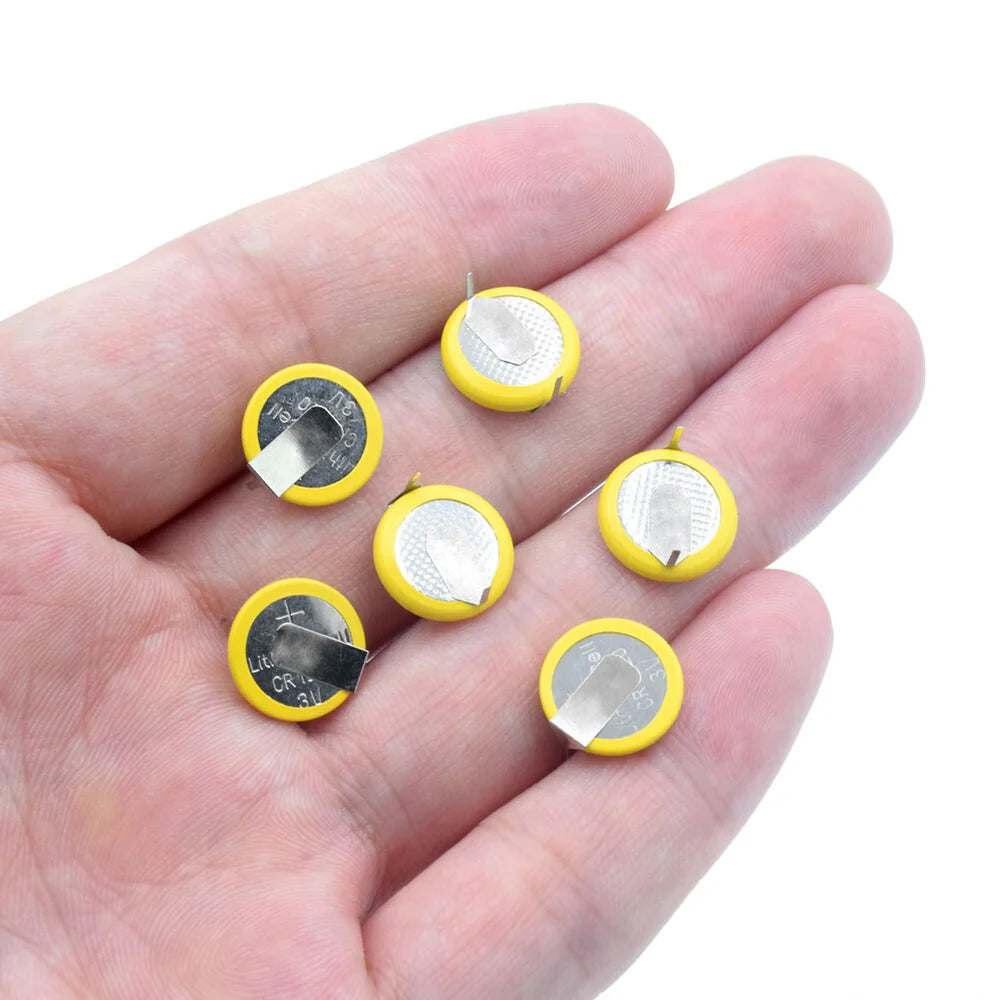

| Model Designation | CR1220 with Solder Tabs / Tags |
| Nominal Voltage | 3.0V DC |
| Nominal Capacity | $\sim$35 mAh to 55 mAh (Depending on manufacturer and discharge rate) |
| Dimensions (Cell Only) | Diameter: 12.0mm $\times$ Thickness: 2.0mm |

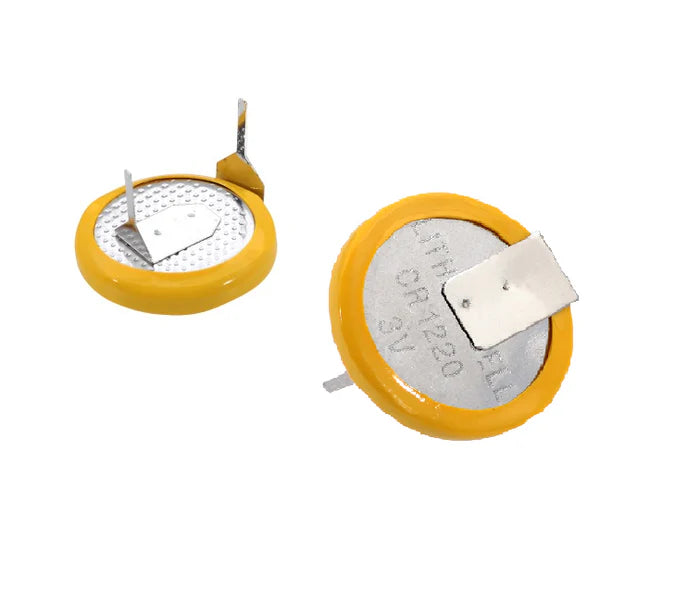

| Pin Configuration | Available in 2-pin or 3-pin variations (Horizontal SMT or Vertical Through-Hole layout) |
| Self-Discharge Rate | Less than 1% per year (at $20^\circ\text{C}$) |
| Operating Temperature | -20°C to +60°C (-4°F to 140°F) |
| Average Weight | $\sim$1.0g to 1.4g (including tabs) |
