Shieldplus

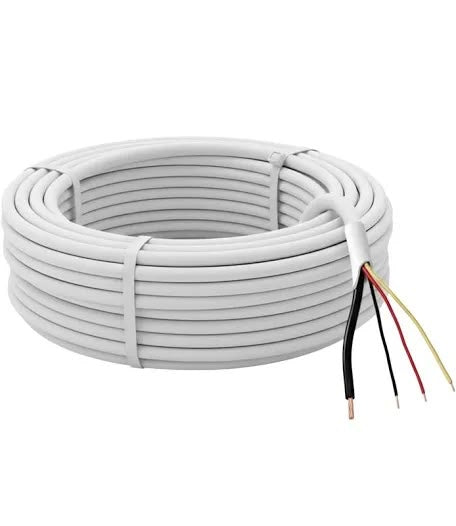

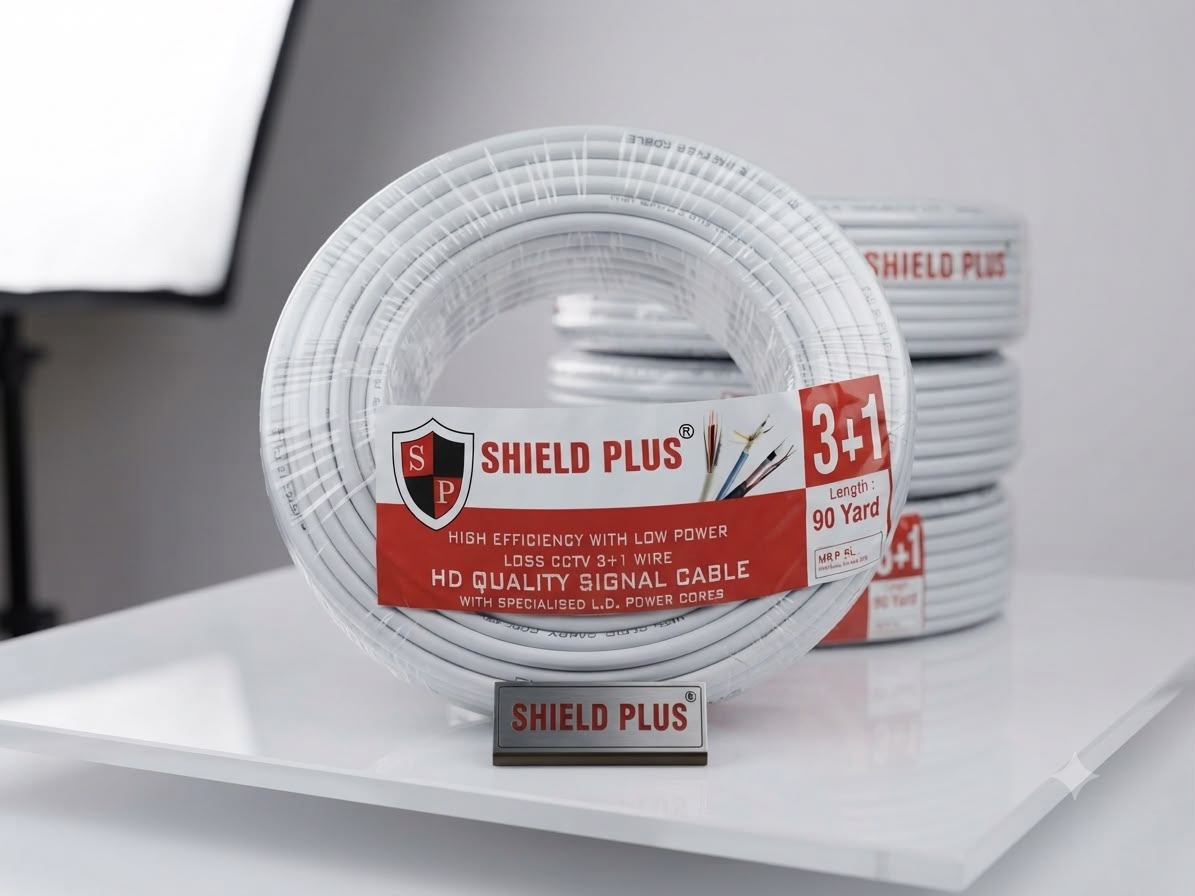

SP- 3+1 STANDARD CCA CABLE -90 YARDS
SP- 3+1 STANDARD CCA CABLE -90 YARDS
Regular price
Rs. 2,242.00
Regular price
Sale price
Rs. 2,242.00
Unit price
/
per
Taxes included.
Couldn't load pickup availability
The Shield Plus 3+1 Standard CCA Cable (90 Yards, 0.51 Gauge) is a CCTV composite cable engineered for indoor security camera installations. Featuring a $0.51\text{ mm}$ conductor thickness, this 3+1 cable integrates one primary video coaxial core along with three insulated power and audio wires within a single protective outer jacket. Constructed with Copper-Clad Aluminum (CCA) conductors, it provides a lightweight, cost-effective wiring solution for multi-channel video and power transmission over short-to-medium distances.
Specification Table
| Feature | Specification |
|---|---|
| Product Code / Title | SP- 3+1 STANDARD CCA CABLE -90 YARDS |
| Conductor Gauge / Thickness | 0.51 mm |
| Cable Type | 3+1 Composite CCTV Cable (1 Video Coaxial Core + 3 Power/Audio Lines) |
| Conductor Material | Copper-Clad Aluminum (CCA) |
| Coil Length | 90 Yards (~82.3 Meters) |
| Compatibility | HD-TVI, HD-CVI, AHD, and Analog CCTV Surveillance Systems |
| Outer Insulation | High-flexibility PVC Jacket |
| Shielding | Braided foil shielding for electromagnetic interference protection |
