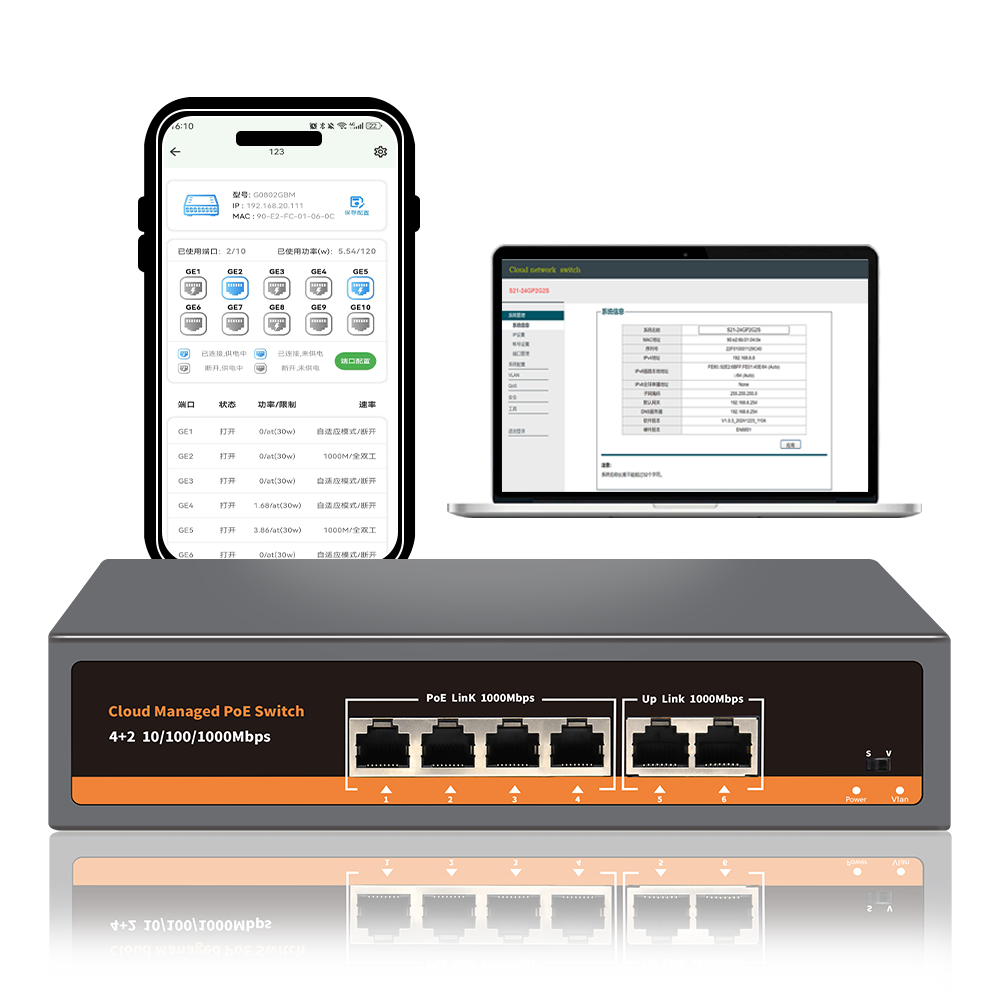

SP- 4+2 FULL GIGA APP BASED POE SWITCH -75W (10/100/1000 MBPS)
SP- 4+2 FULL GIGA APP BASED POE SWITCH -75W (10/100/1000 MBPS)
Regular price
Rs. 2,500.00
Regular price
Sale price
Rs. 2,500.00
Unit price
per
Taxes included.
Couldn't load pickup availability
Cloud-managed for easy remote setup, monitoring, and troubleshooting
Energy Efficient Ethernet (EEE) support
Extended PoE transmission up to 250 meters
Advanced VLAN, QoS, and port management features
Suitable for 4 PoE CCTV cameras with two uplink ports for NVR or router connection
Rugged metal casing, reliable for professional network installations
| Specification | Details |
|---|---|
| Ports | 4 × 10/100/1000 Mbps PoE (RJ45) + 2 × 1000 Mbps uplink (RJ45) |
| Transmission Rate | Full Gigabit per port |
| Switching Capacity | ≥ 8 Gbps (typical for this class of switch) |
| MAC Address Table | 2K – 8K |
| PoE Protocol | IEEE 802.3af / IEEE 802.3at |
| PoE Output Power | Max. 30W per port; total PoE budget 75W |
| PoE Power Pins | 1/2 (+), 3/6 (−) |
| PoE Transmission Distance | Up to 250 meters (Extend Mode) |
| Network Medium | 10/100/1000BASE-TX; Cat5e or higher UTP |
| Management | Cloud-managed via browser / Web GUI; supports remote monitoring, configuration & firmware upgrade |
| VLAN Support | Port-based VLAN; IEEE 802.1Q VLAN (tagging); Access & Trunk modes |
| QoS | IEEE 802.1p (CoS), Port-based QoS, DSCP; Queue scheduling: SP / WRR / WFQ |
| Security & Network Features | Link aggregation (LACP), SNMP, Port isolation, STP/RSTP, Port mirroring, Storm suppression, Loop detection & protection |
| Cloud Features | Cloud app for remote visibility, monitoring & configuration |
| Power Supply | AC 100–240V, 50/60Hz; built-in DC output for PoE |
| Physical Dimensions | Compact desktop / wall-mount design (approx. 190 × 120 × 30 mm; model-dependent) |
