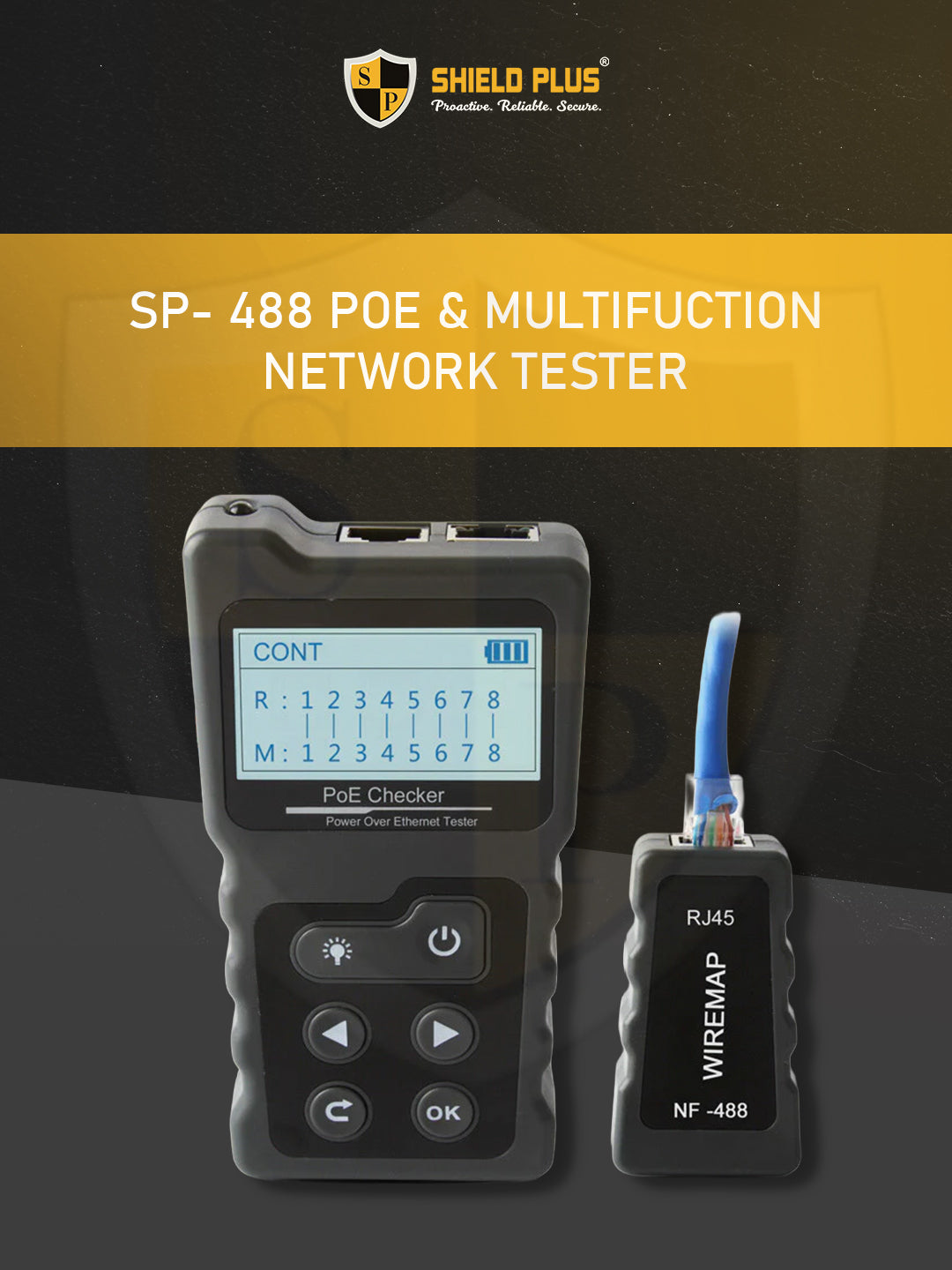

SP- 488 POE & MULTIFUCTION NETWORK TESTER
SP- 488 POE & MULTIFUCTION NETWORK TESTER
Regular price
Rs. 4,720.00
Regular price
Sale price
Rs. 4,720.00
Unit price
per
Taxes included.
Couldn't load pickup availability
Network Cable Tester

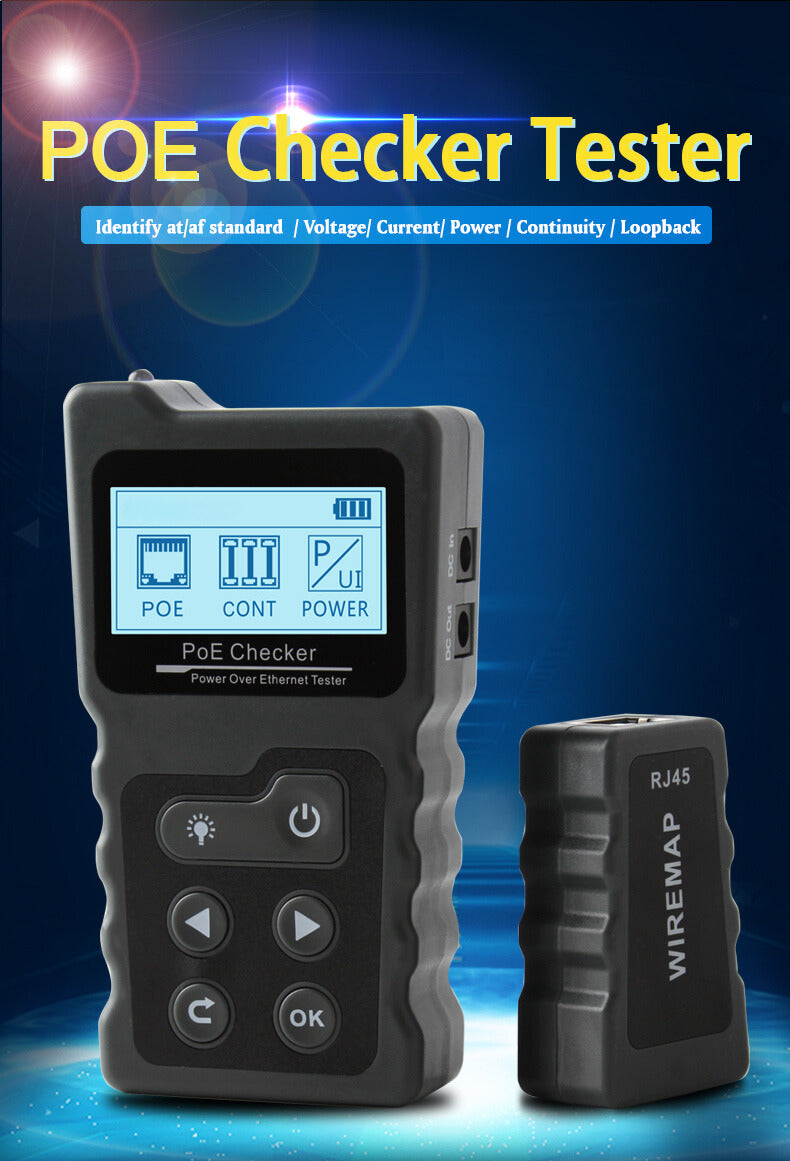

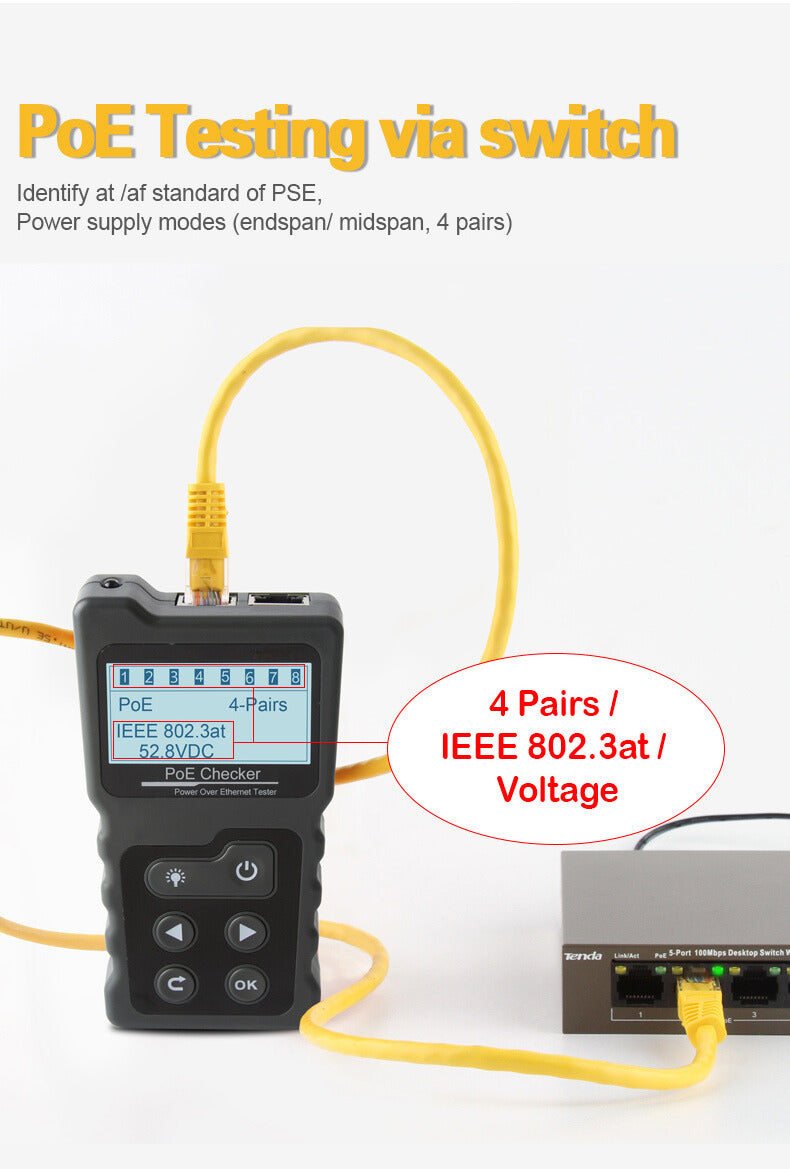

Identify af / at Standard Automatically - Quickly check power sourcing equipment (PSE) type, the IEEE802.3af or 802.3at standard.

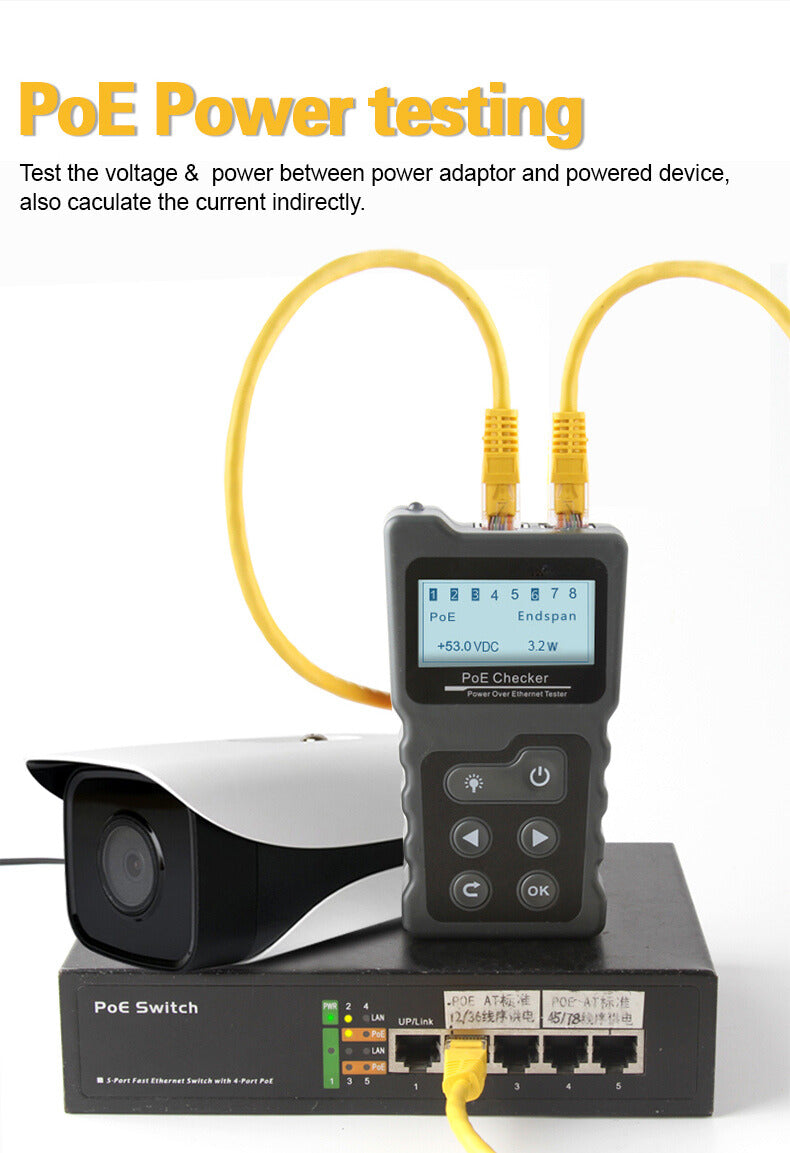

Inline Power Testing - Inline test info of standard/non-standard PoE devices, including power supply voltage, power supply polarity, crossover mode, and more.

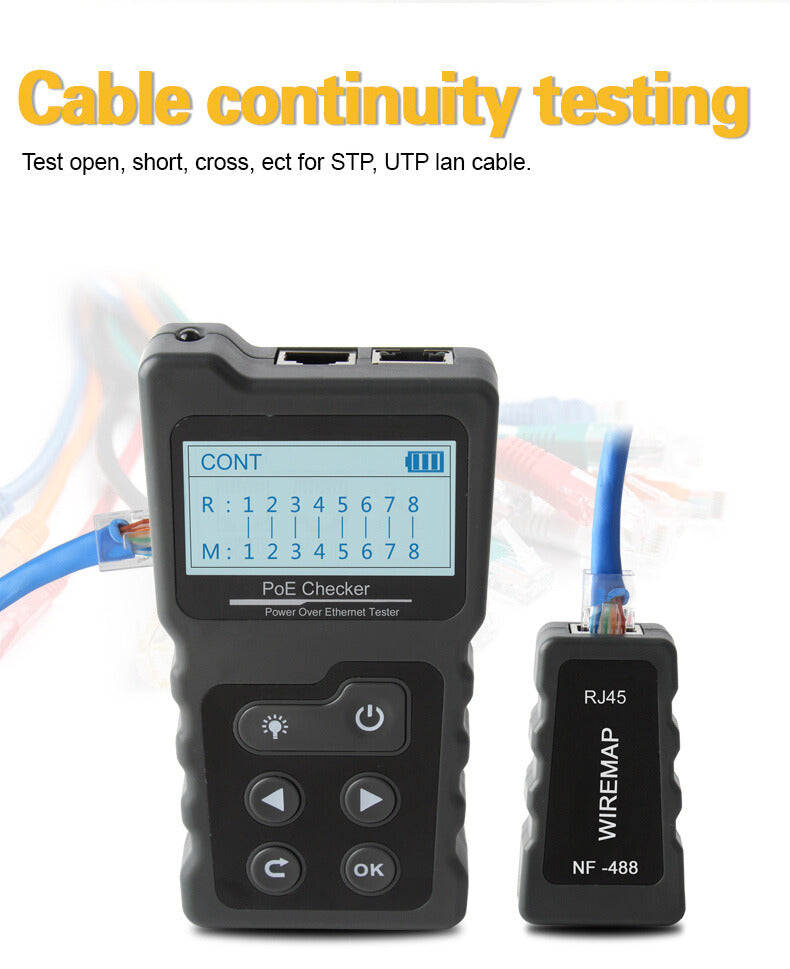

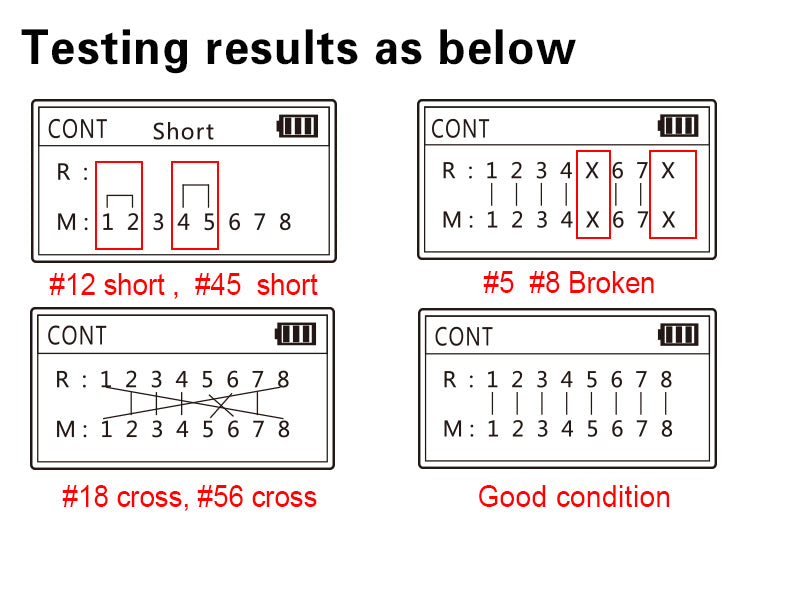

Cable Continuity Testing - Test the short circuit, crossover and open circuit status for STP, UTP lan cable.

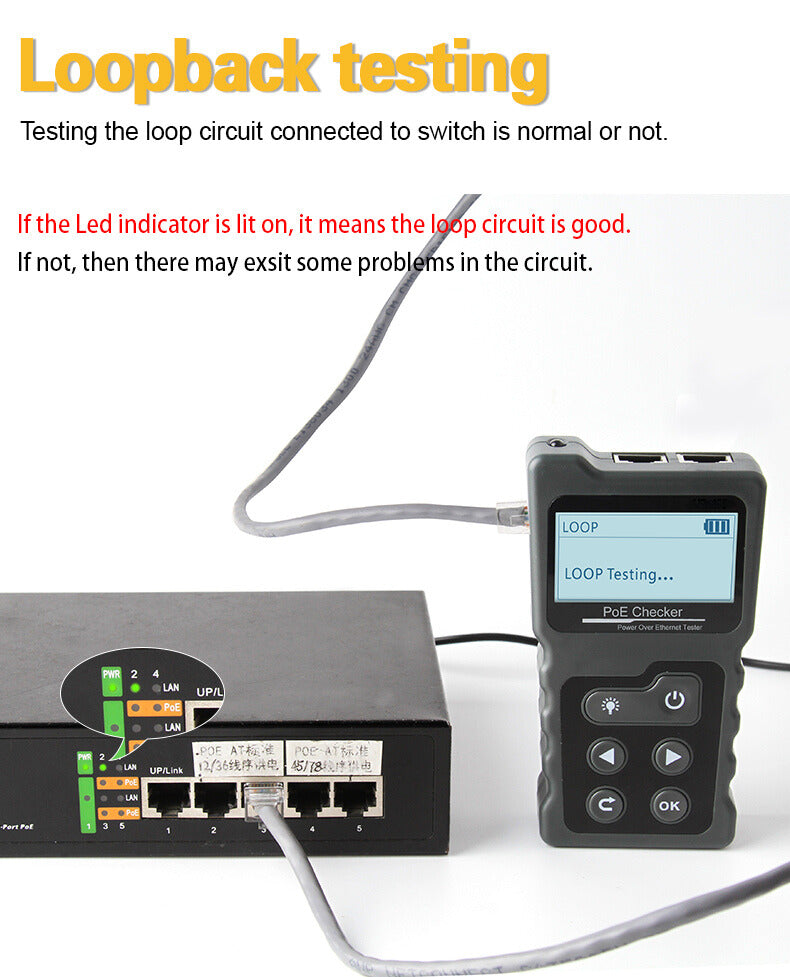

Loopback Testing - Test the loop circuit connected to switch is normal or not.

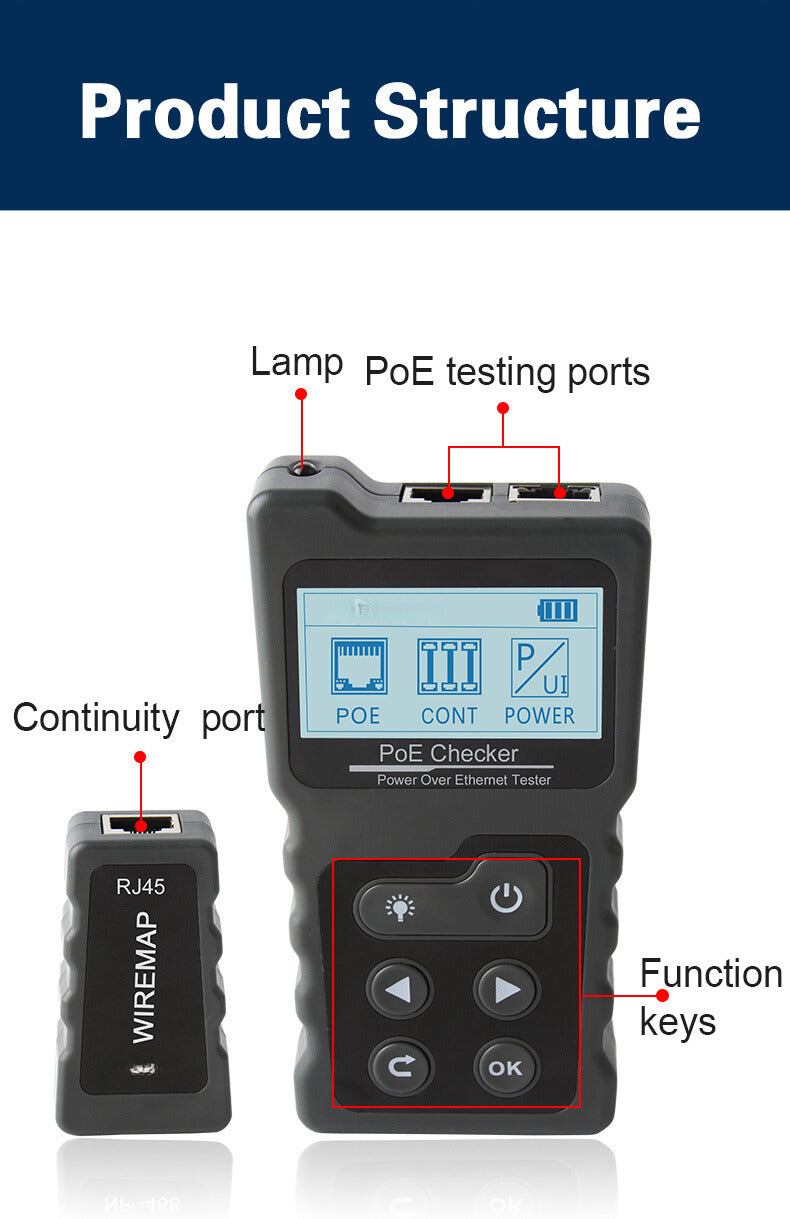

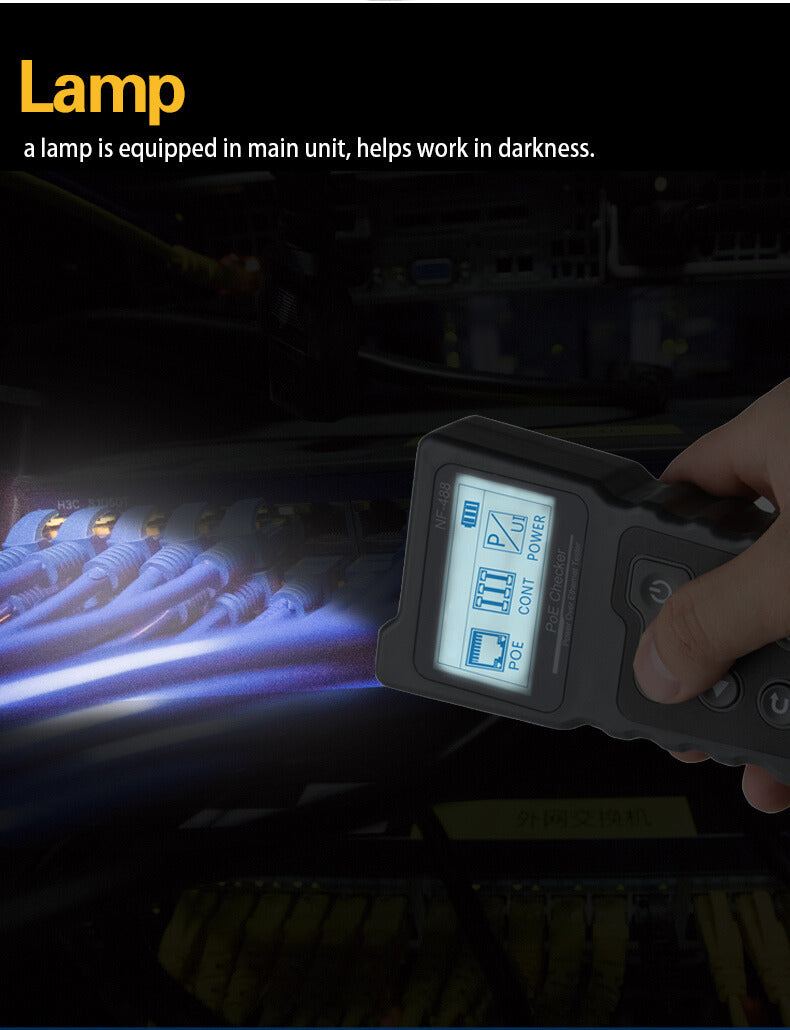

Lamp - A lamp is equipped in main unit, helps work in darkness.
Certification - Passes RoHS, FCC and CE compliance testing, and Noyafa is certified to the ISO 9001 standard

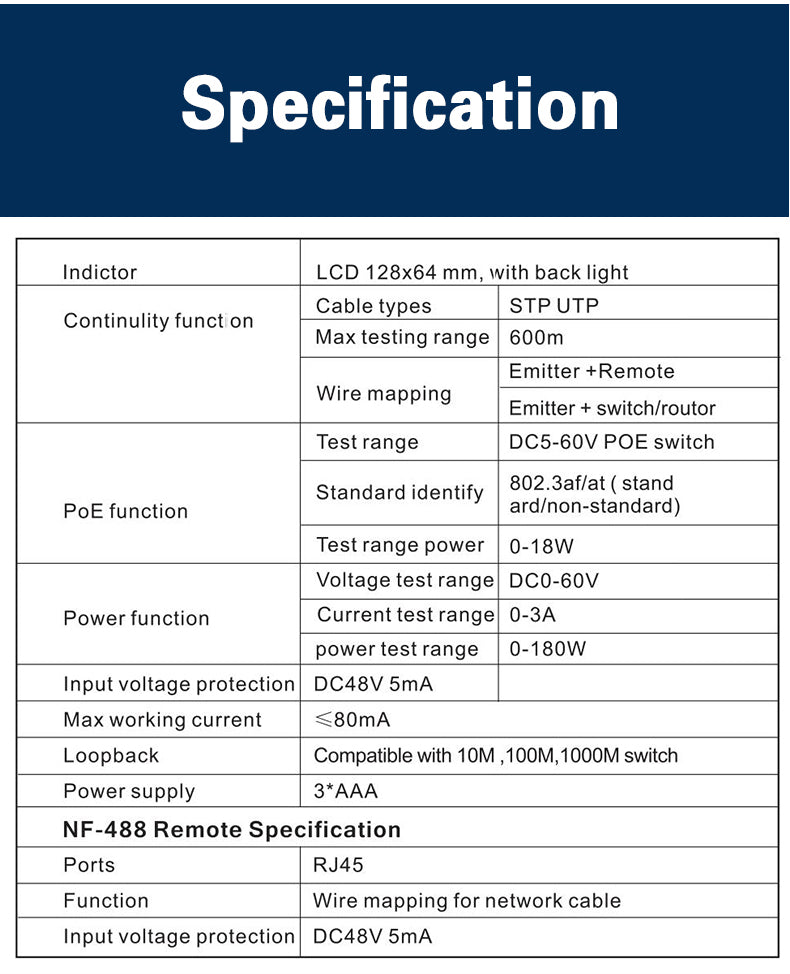

| Specification | Details |
|---|---|
| Item Name | Network Cable Tester |
| Material | ABS |
| Cable Type | STP/UTP |
| Continuity Function | Yes |
| Maximum Testing Range | 600m |
| Wire Mapping | Emitter + Remote, Emitter + Switch/Router |
POE FUNCTION
| POE Feature | Details |
|---|---|
| Test Range | DC 5–60V PoE Switch |
| Standard Identify | 802.3af/at (Standard/Non-standard) |
| Test Range Power | 0–18W |

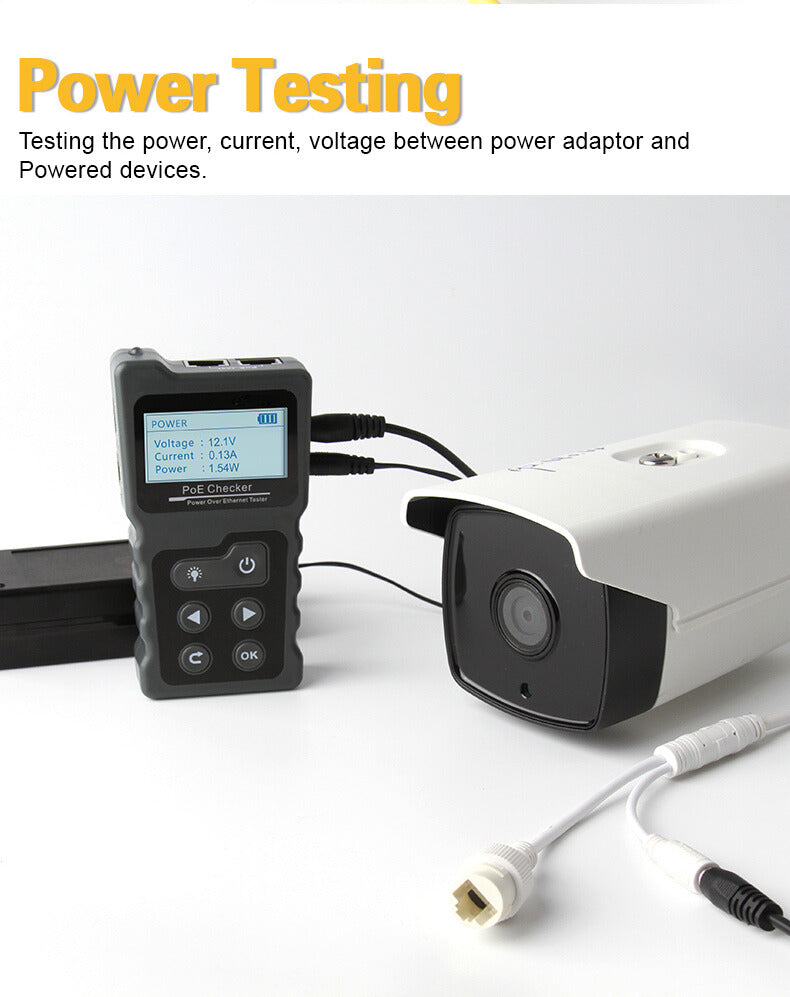

| Voltage Test Range | DC 0–60V |
| Current Test Range | 0–3A |
| Power Test Range | 0–180W |
| Display | LCD Screen, with Backlight |
| Input Voltage Protection | DC 48V, 5mA |
| Maximum Working Current | ≤80mA |
| Loopback | Compatible with 10M/100M Switch |
| Power Supply | 3 × 1.5V AAA Battery (Not Included) |
REMOTE SPECS
| Specification | Details |
|---|---|
| Ports | RJ45 |
| Function | Wire Mapping for Network Cable |
| Input Voltage Protection | DC 48V, 5mA |
| Features | Portable, Fine Workmanship, LCD Display |
| Screen Size | 128mm × 64mm / 5.04" × 2.52" |
| Total Size | 14cm × 4cm × 2cm / 5.51" × 1.57" × 0.79" |
