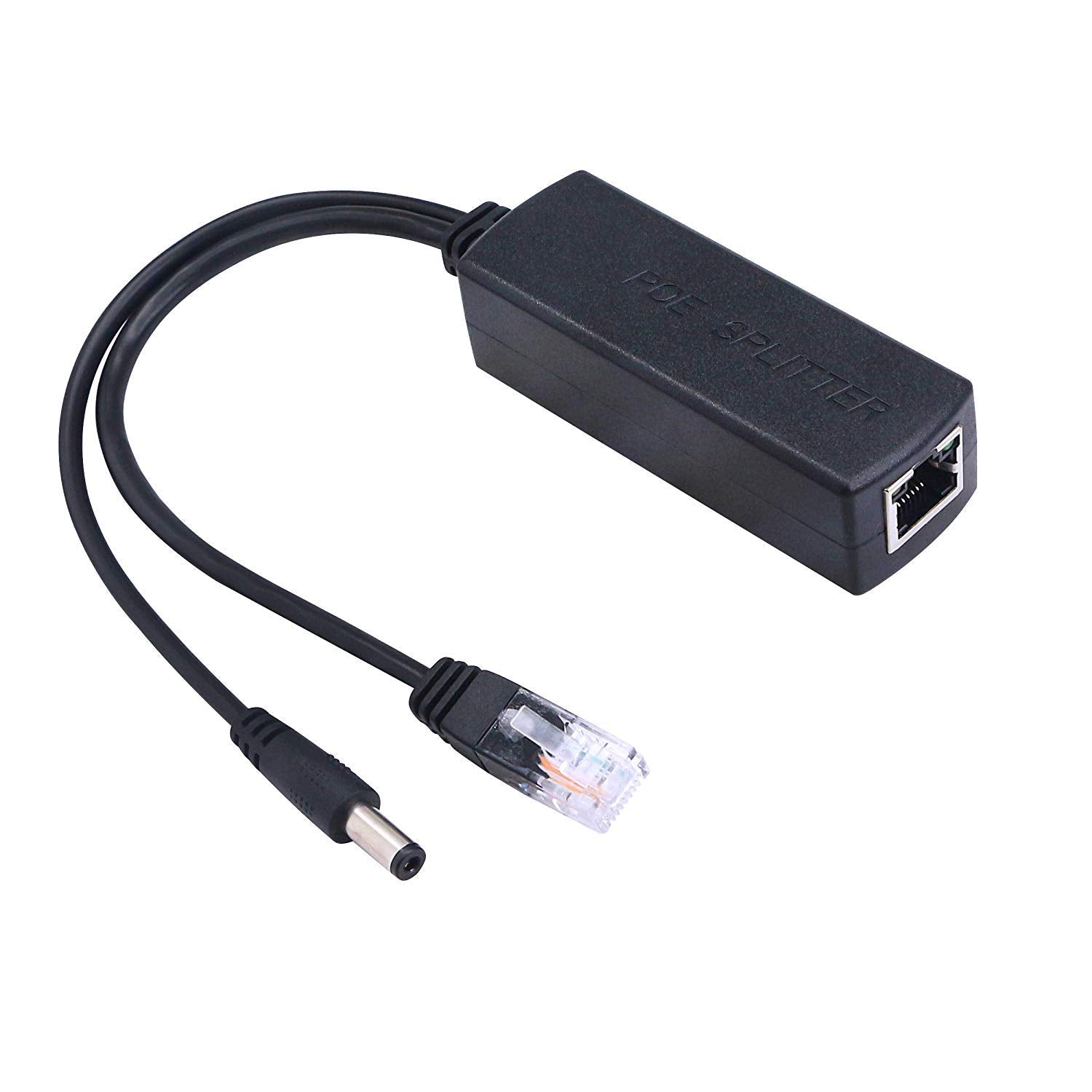

IEEE 802.3af RJ45 PoE Splitter Adapter (48V to 12V)

This IEEE 802.3af-compliant PoE splitter allows you to power non-PoE devices such as Android tablets, IP cameras, wireless access points, and VoIP phones using a standard Ethernet cable. It transforms a PoE signal into a usable 12V DC power supply and data connection for devices that do not natively support Power over Ethernet.

Key Features:

• Transforms non-PoE devices to be PoE-enabled
• IEEE 802.3af compliant – plug and play, no configuration required
• Supports 10/100Mbps data transmission
• DC output: 12V, 12 watts power
• PoE input range: 38V to 57V (48V recommended)
• Transmission range: up to 100 meters (328 ft) via Ethernet cable

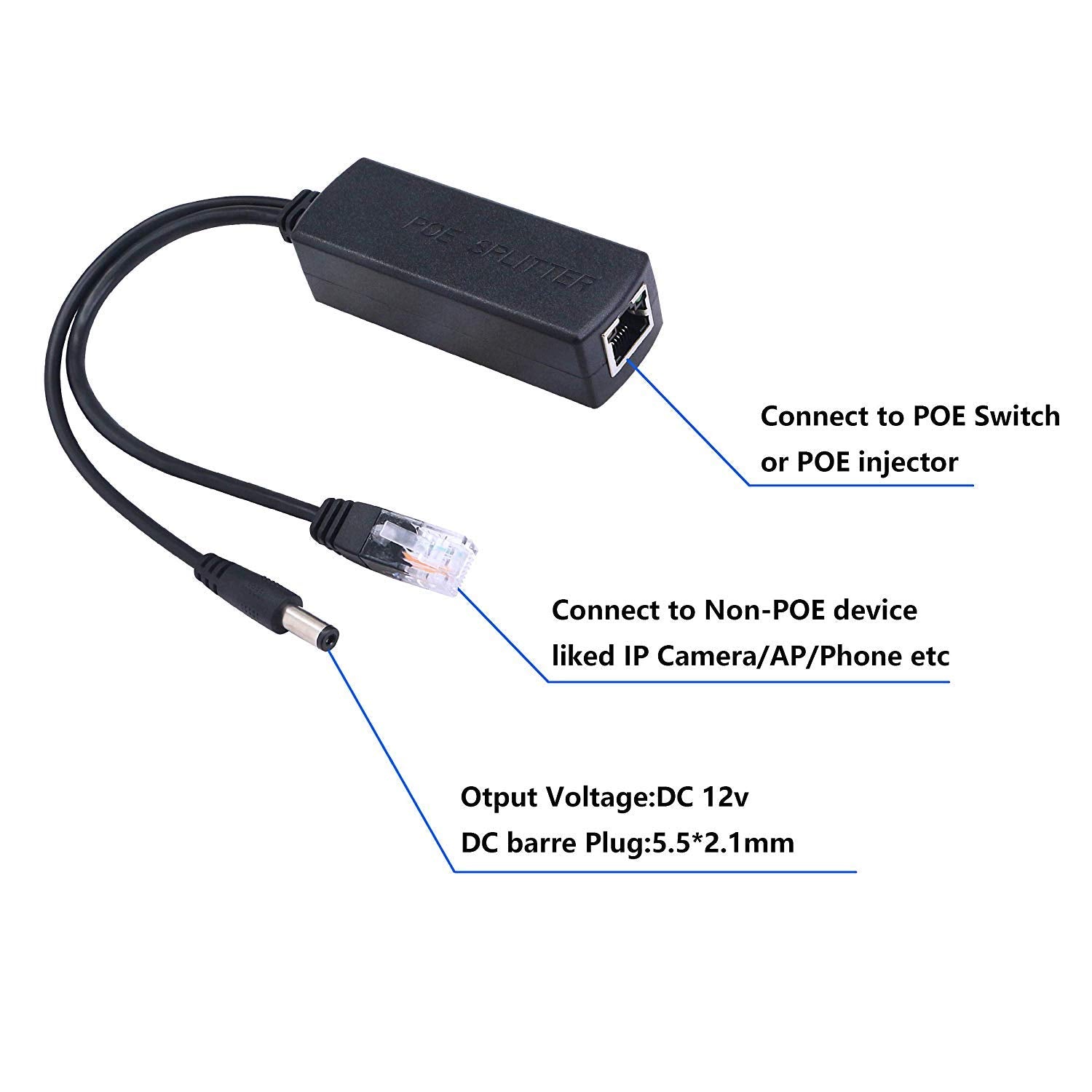

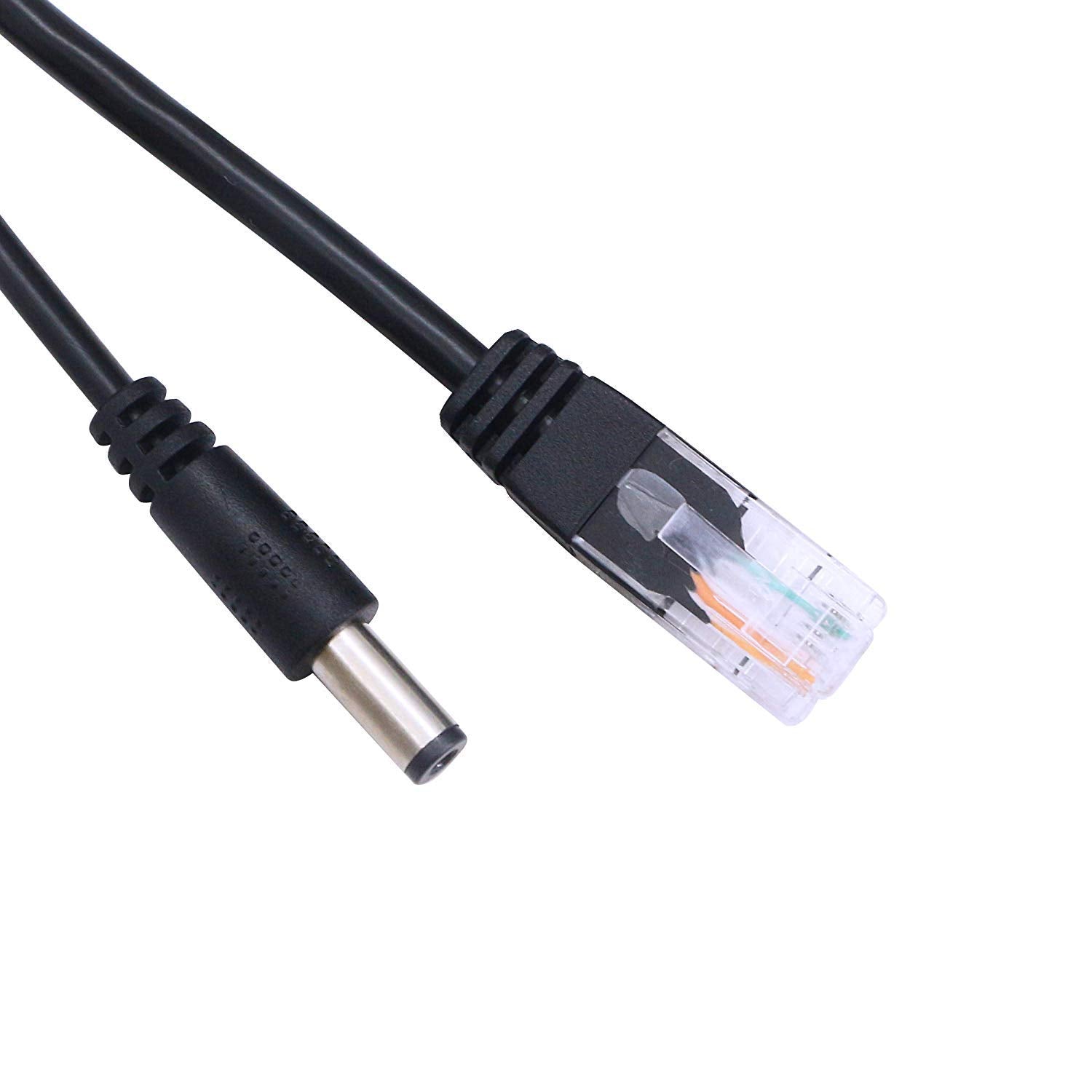

• RJ45 Input: Female; RJ45 Output: Male + DC Barrel Jack (5.5 x 2.1mm)

Compatibility:

Suitable for powering the following non-PoE devices:

• Android Tablets
• IP Cameras (e.g., Dropcam)
• Wireless Access Points (WiFi APs)
• IP Phones
• VoIP Phones
• Routers
• Other 12V DC-powered Ethernet devices

Product Specifications:

Usage Instructions:

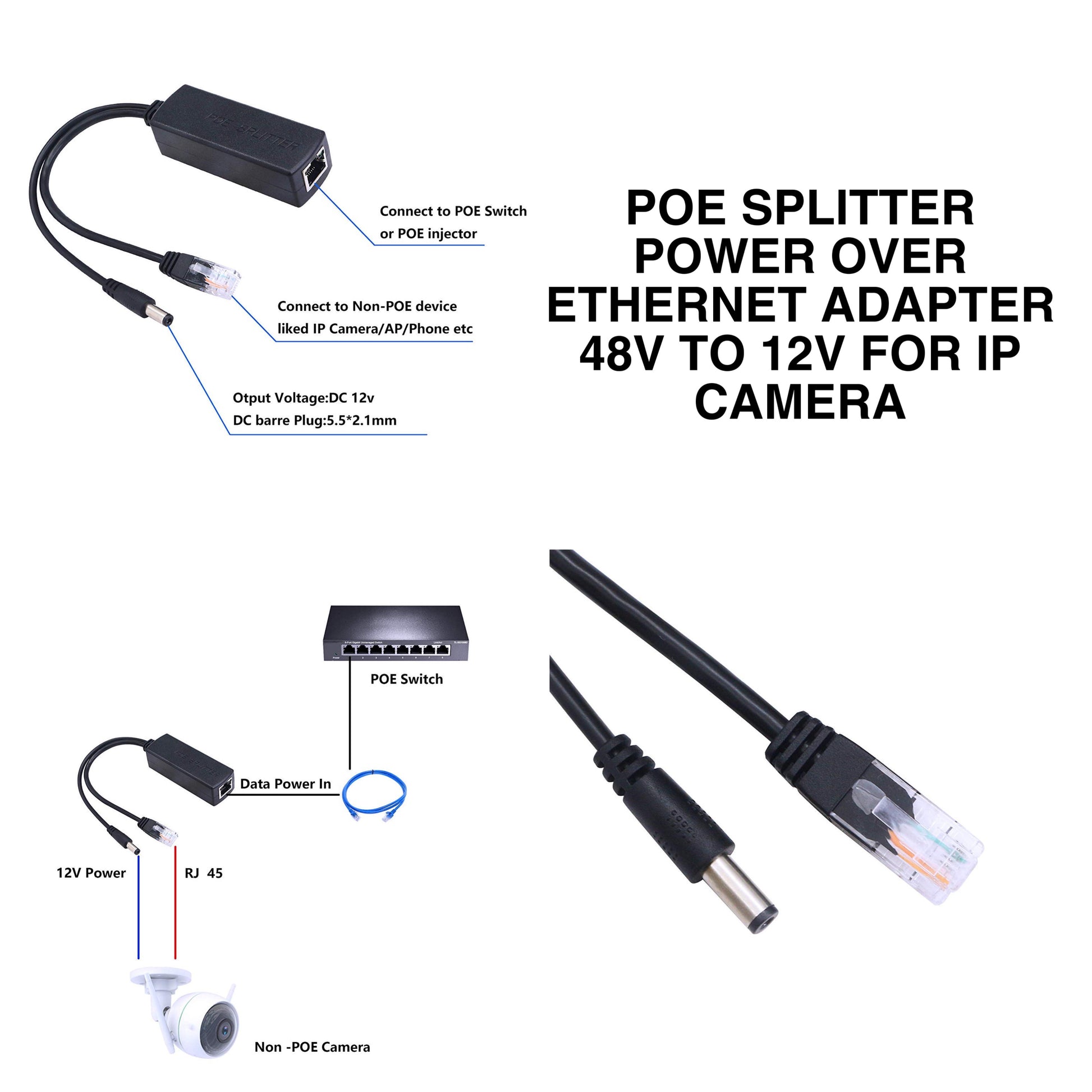

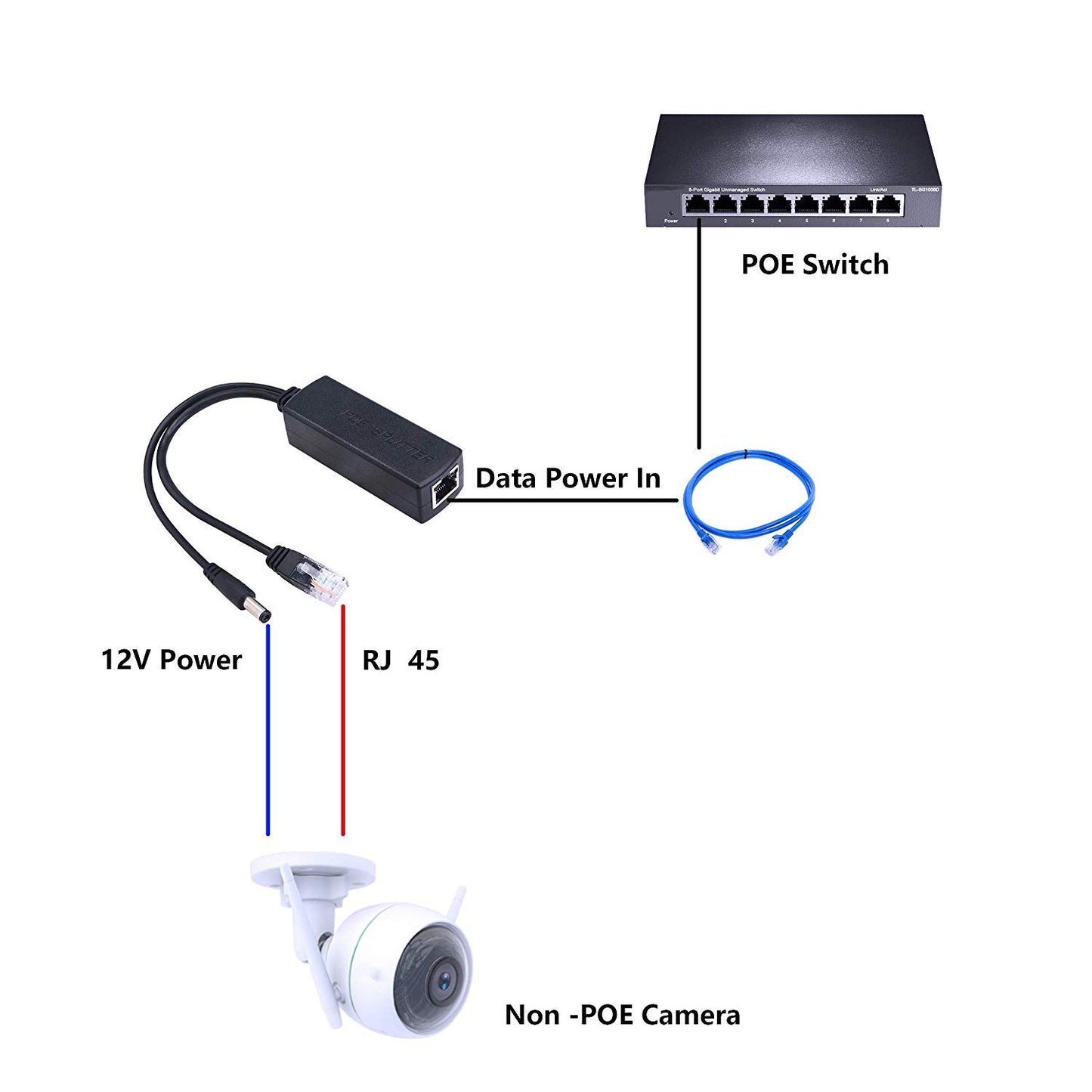

1. Connect the RJ45 female input to a PoE-enabled switch or injector (48V).
2. Connect the RJ45 male output and the DC barrel plug to your non-PoE device.
3. Power and data will be transmitted over a single Ethernet cable up to 100 meters.

Note: A PoE injector or PoE switch is required for this splitter to function. Not compatible with passive PoE systems.
