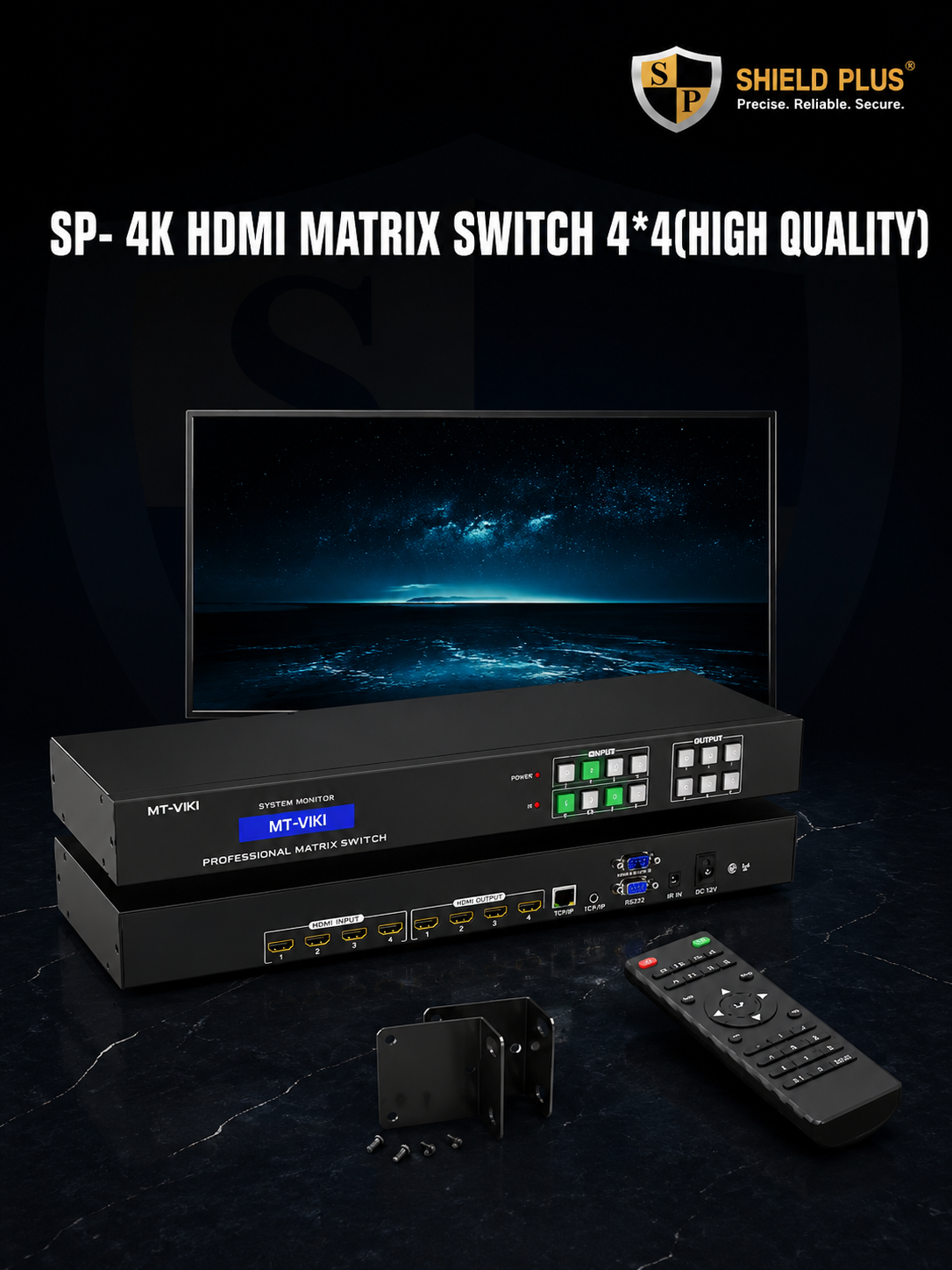

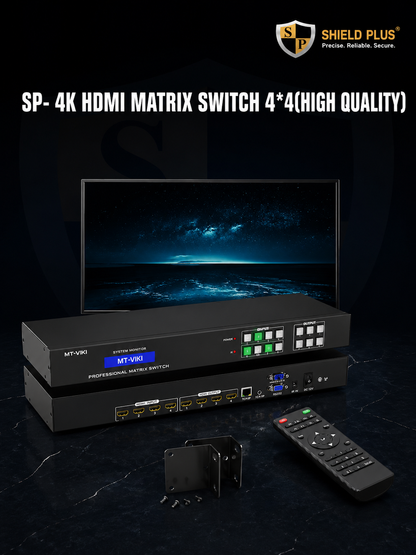

SP- 4K HDMI MATRIX SWITCH 4*4(HIGH QUALITY)
SP- 4K HDMI MATRIX SWITCH 4*4(HIGH QUALITY)
Couldn't load pickup availability

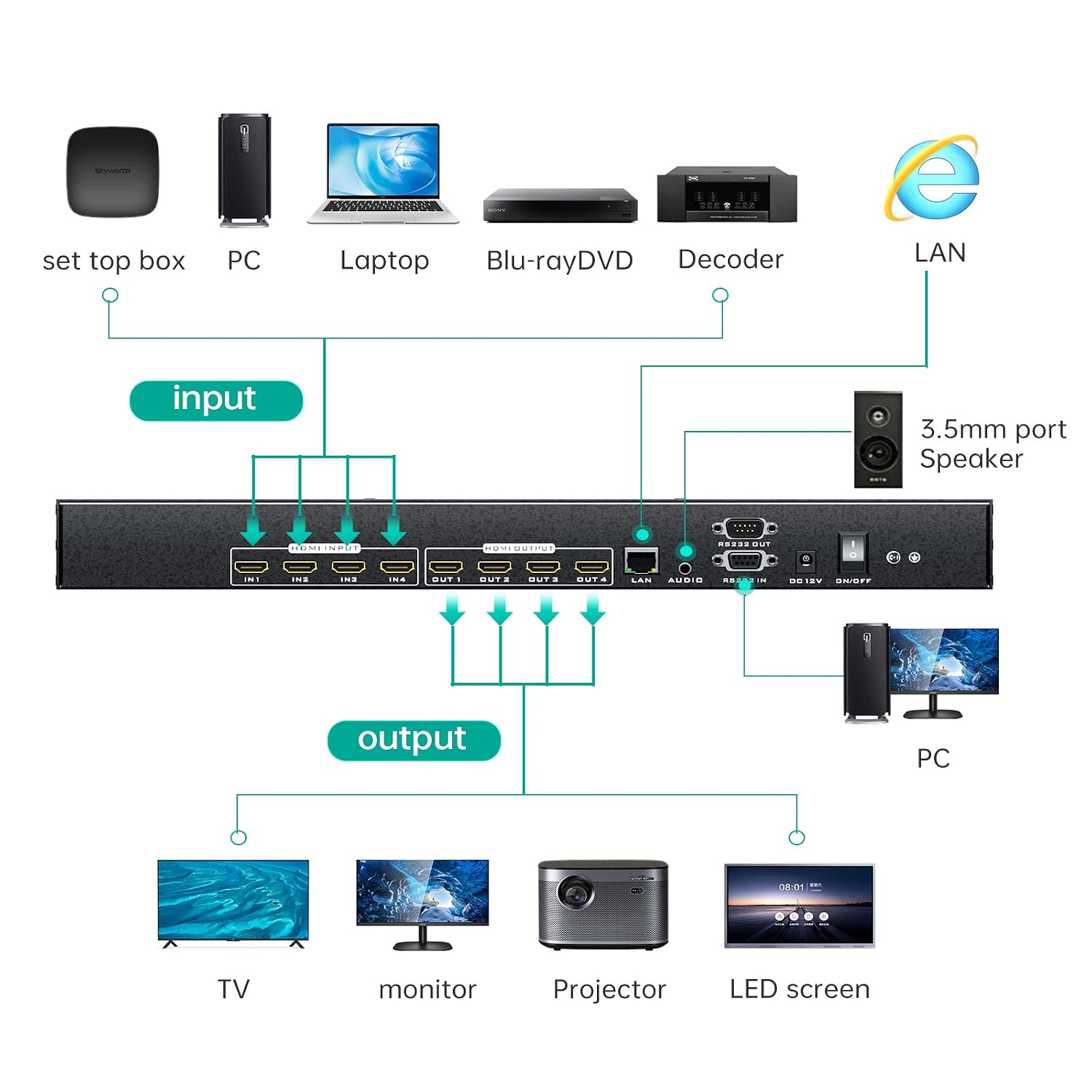

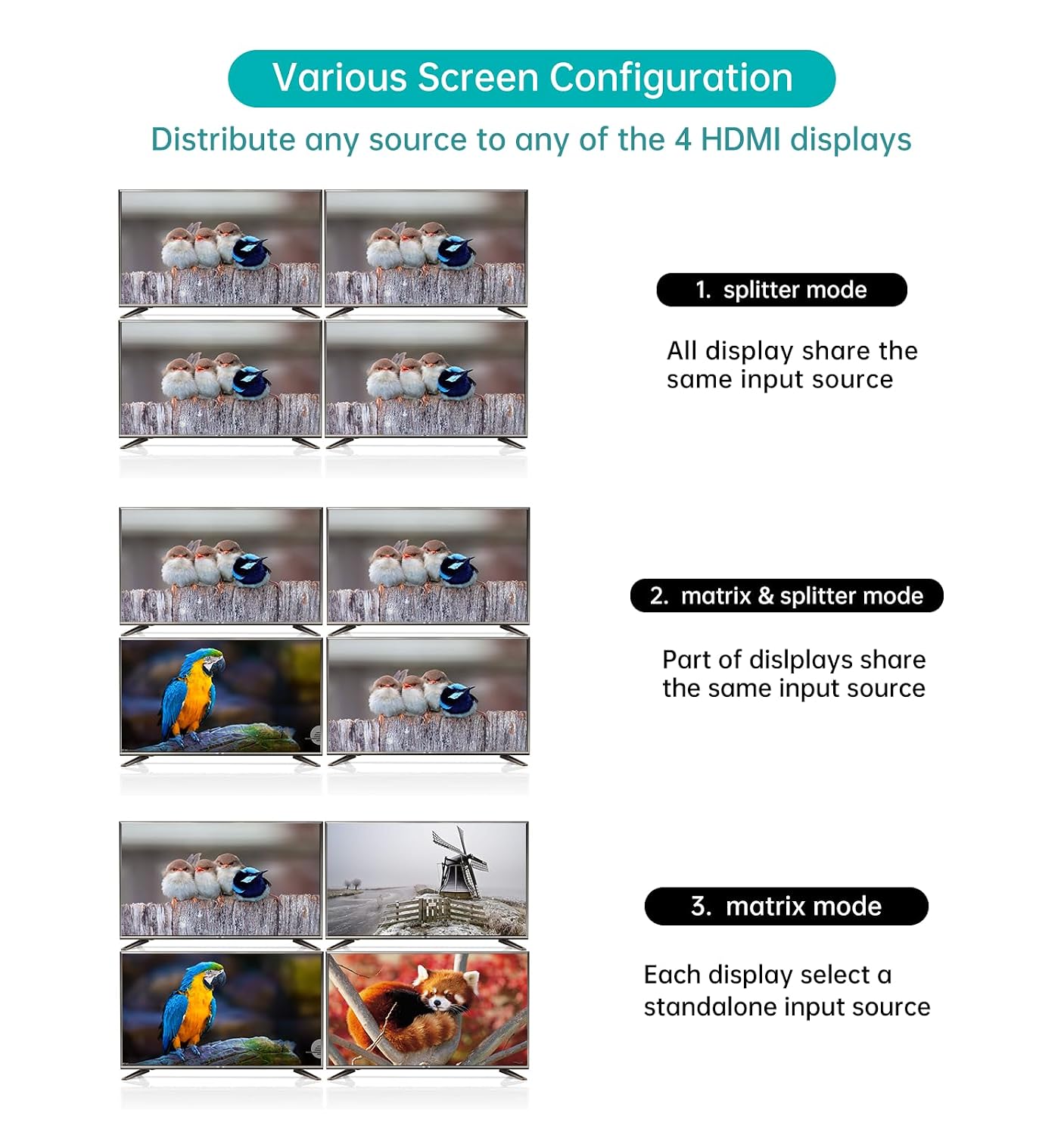

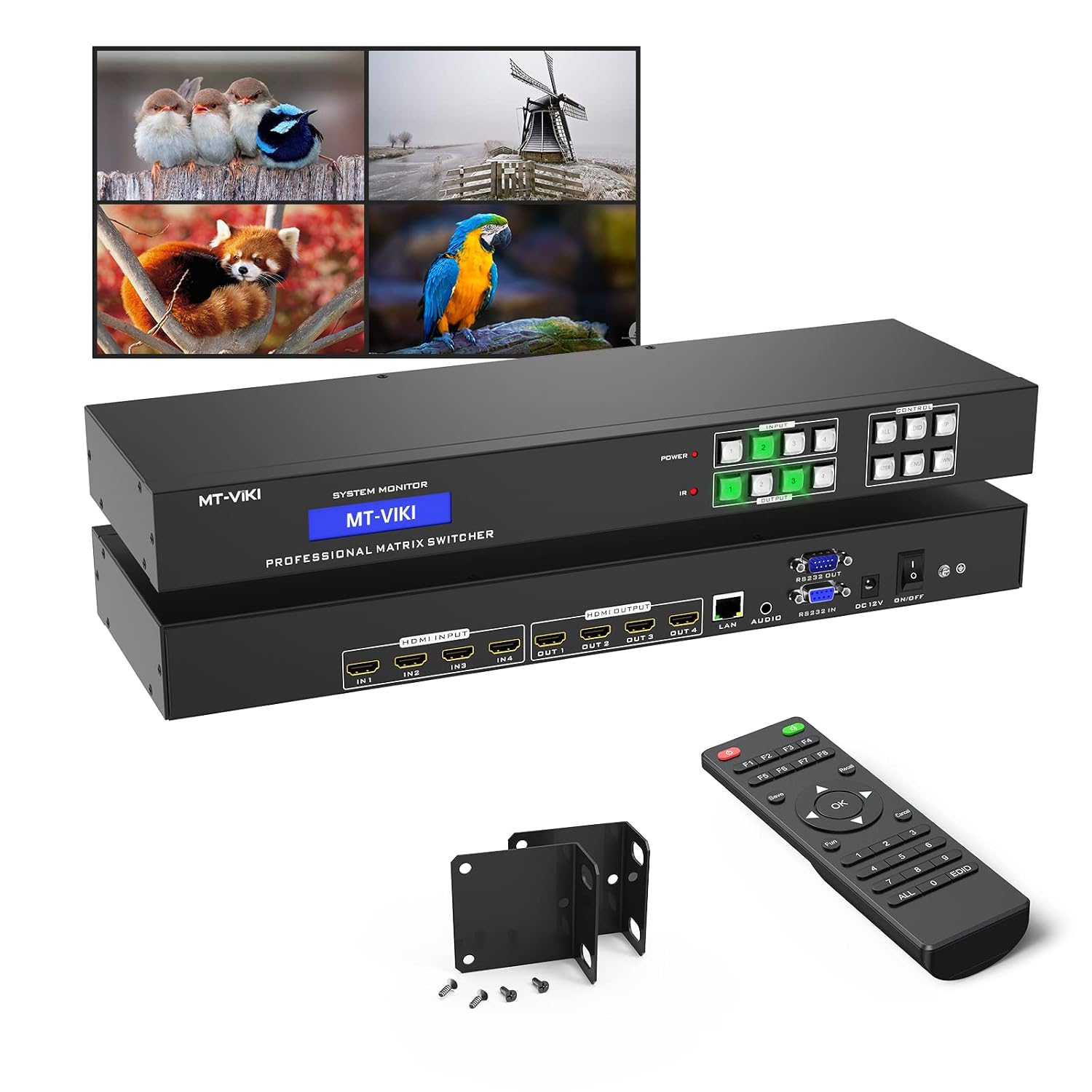

The SP- 4K HDMI Matrix Switch 4*4 (High Quality) is a professional-grade audio/video distribution unit designed to connect 4 distinct HDMI source devices (such as NVRs, gaming consoles, PCs, or streaming boxes) to any of 4 independent HDMI displays. Unlike a standard switcher or splitter, a matrix switcher allows any input source to be routed simultaneously to any output display in any combination (e.g., Input 1 to Displays 1 & 2, while Input 3 goes to Displays 3 & 4).Engineered with high-bandwidth processing circuitry, robust signal stabilization, and smart EDID management, this high-quality switch ensures seamless, zero-latency transmission of ultra-high-definition 4K video signals. It is ideally suited for control rooms, sports bars, conference rooms, video wall management, and multi-zone residential AV installations.
| Specification | Details |
|---|---|
| Input Ports | 4 x HDMI Type-A Female |
| Output Ports | 4 x HDMI Type-A Female |
| Video Resolution | Up to 4K Ultra HD (3840 x 2160) @ 30Hz / 60Hz and 1080p Full HD |
| Video Bandwidth | Up to 18 Gbps |
| Routing Capability | Matrix cross-point routing (4 inputs to 4 outputs independently) |

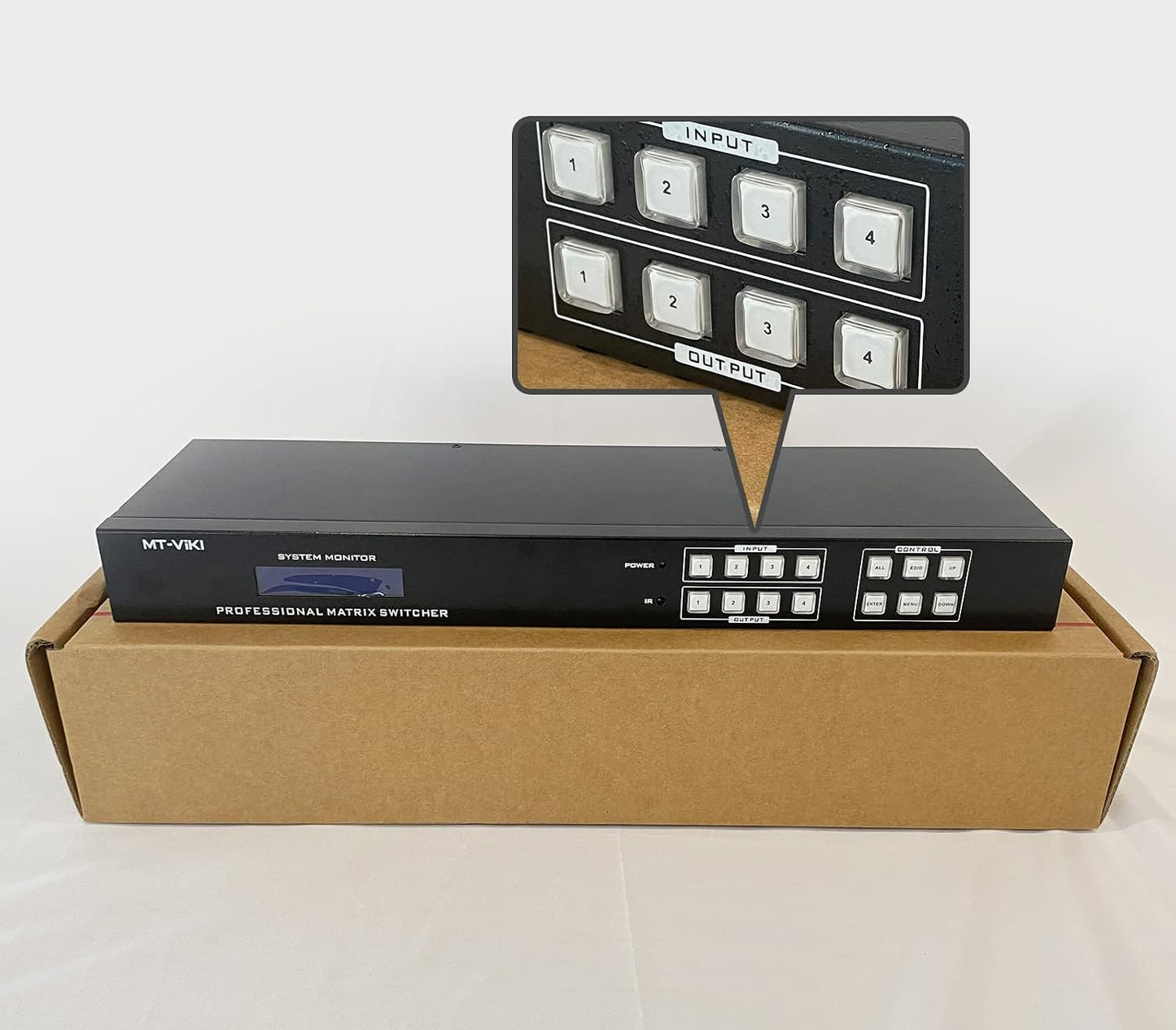

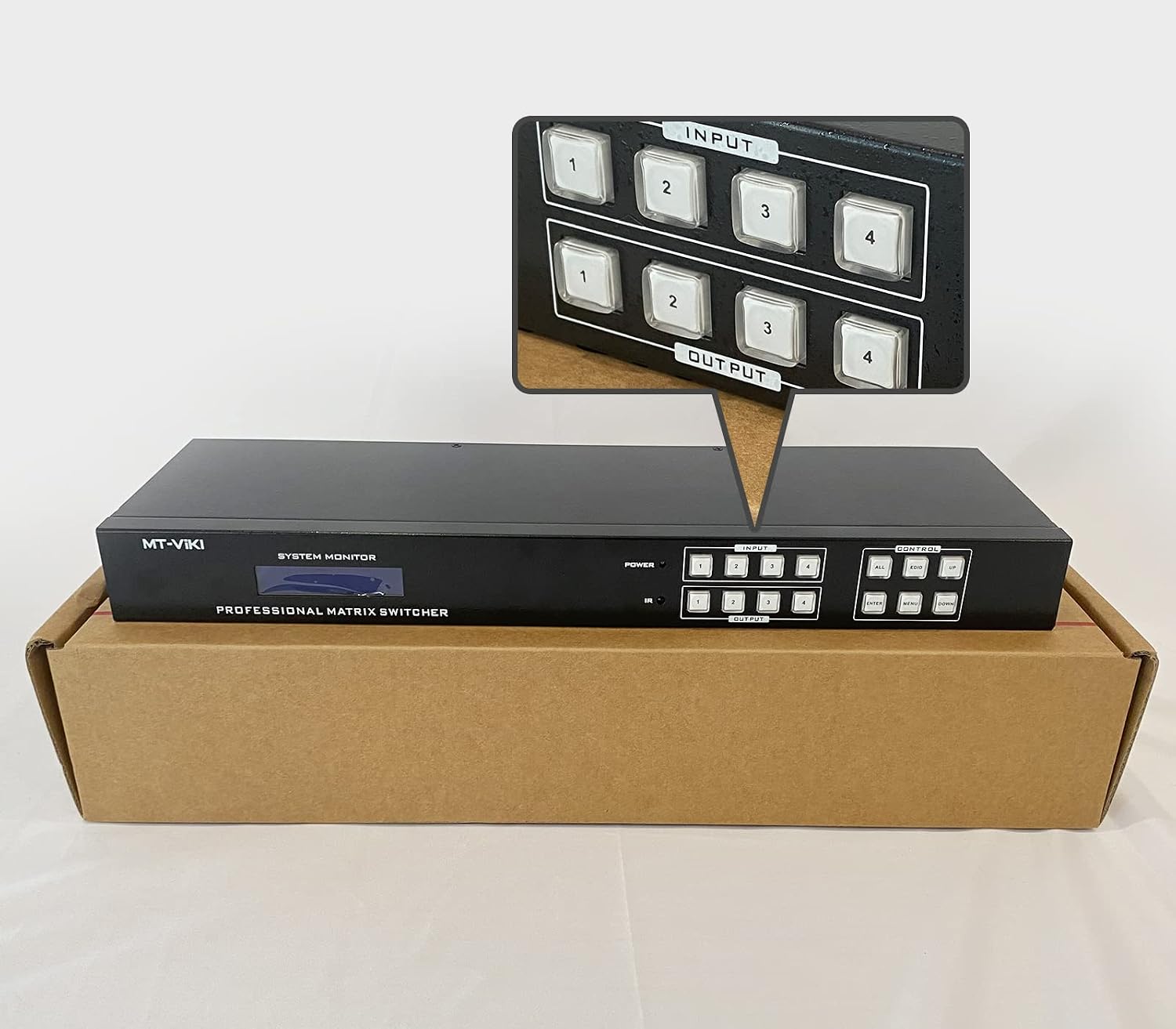

| Control Modes | Front-panel push buttons, IR Remote Control, and RS232 / IP Ethernet control |
| HDCP Compliance | HDCP 1.4 / 2.2 Compliant |
| EDID Management | Smart EDID copying and auto-negotiation for maximum display compatibility |
| Audio Support | LPCM 7.1CH, Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, and DTS 5.1 |

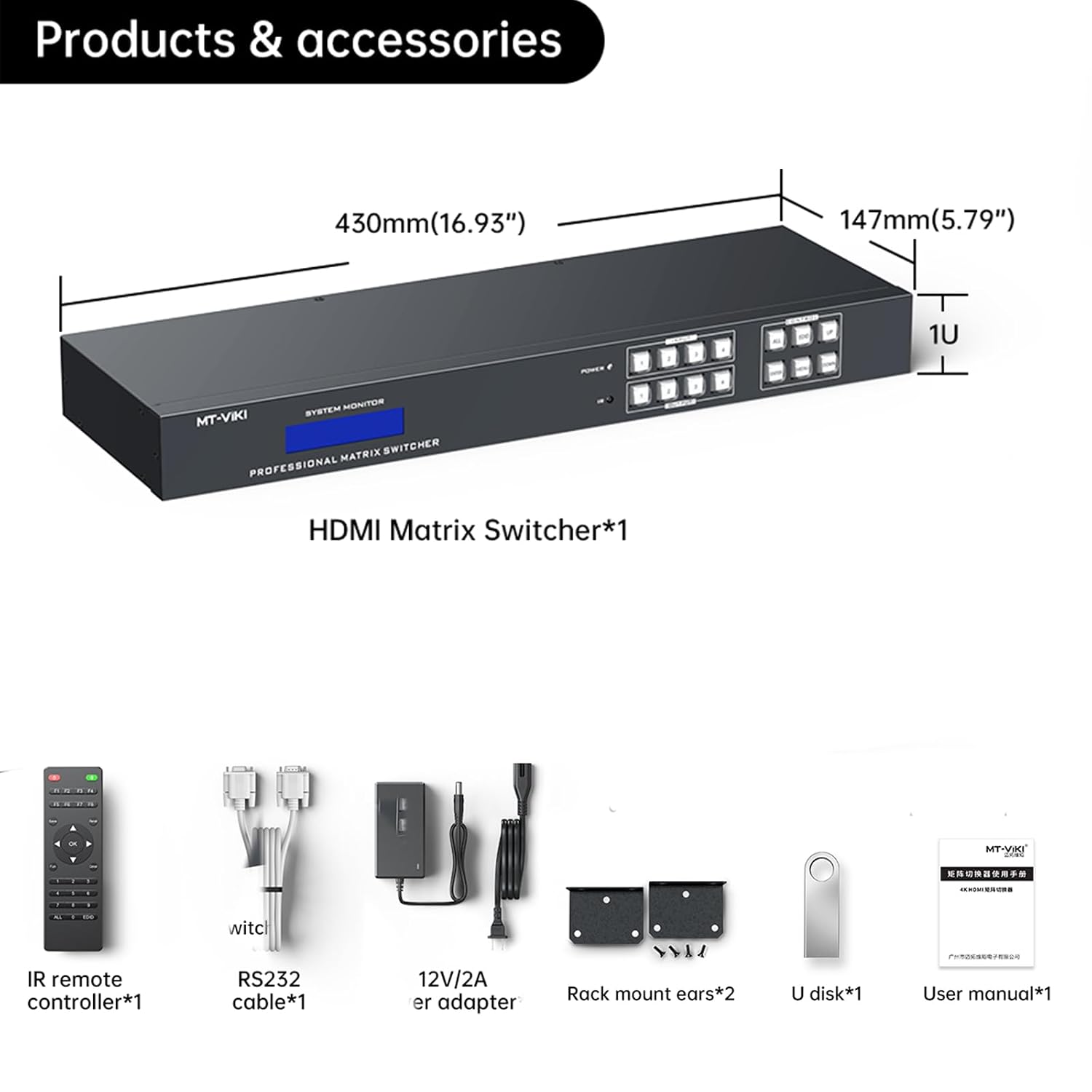

| Enclosure Type | Heavy-duty, rack-mountable metal chassis for improved heat dissipation and EMI shielding |
| Power Supply | DC 12V Power Adapter |
| Product Drive Link | SP- 4K HDMI MATRIX SWITCH 4*4(HIGH QUALITY) |
