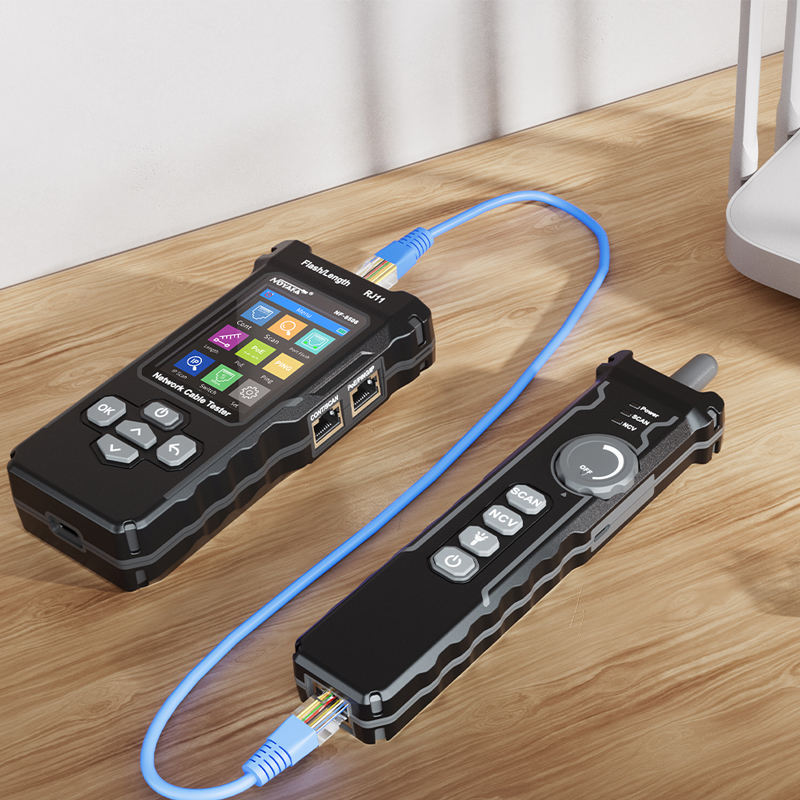

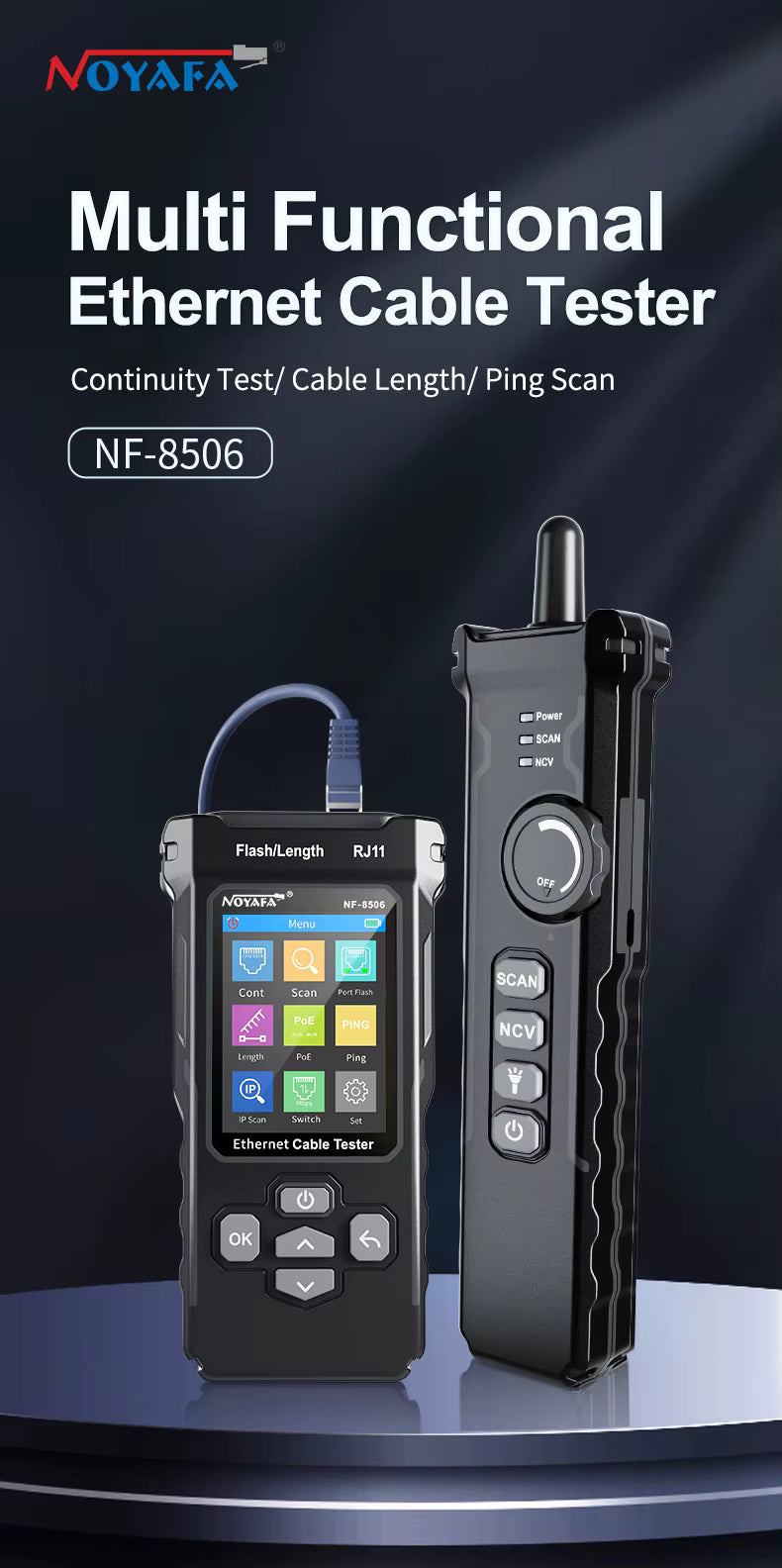

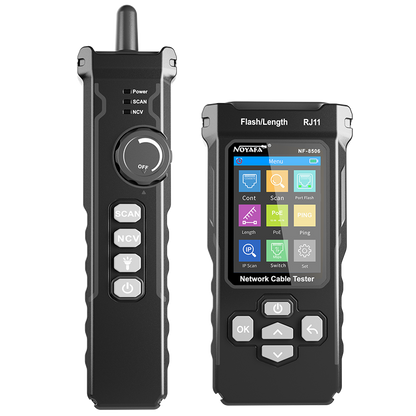

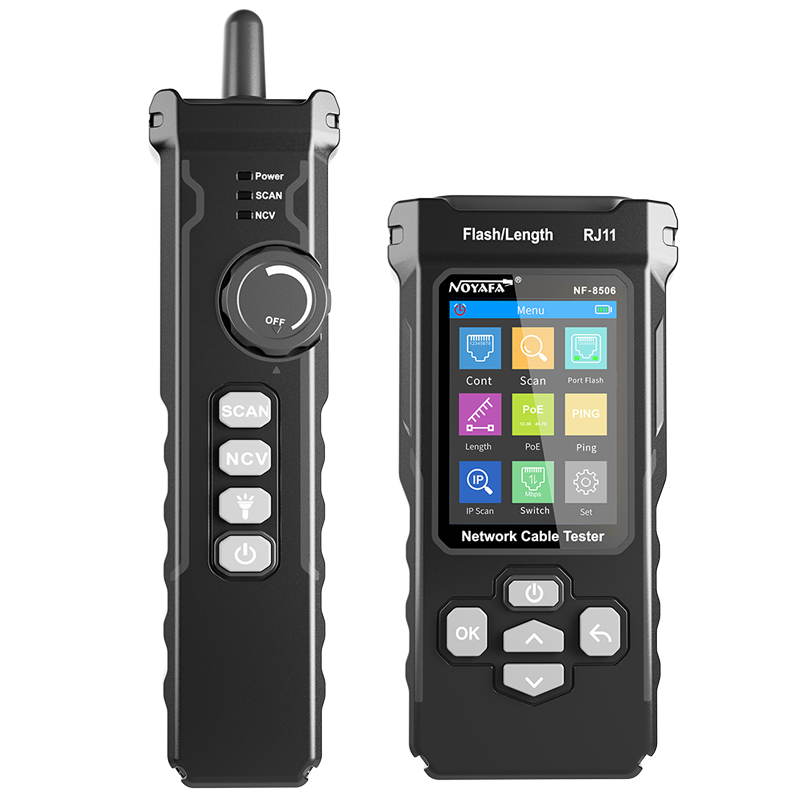

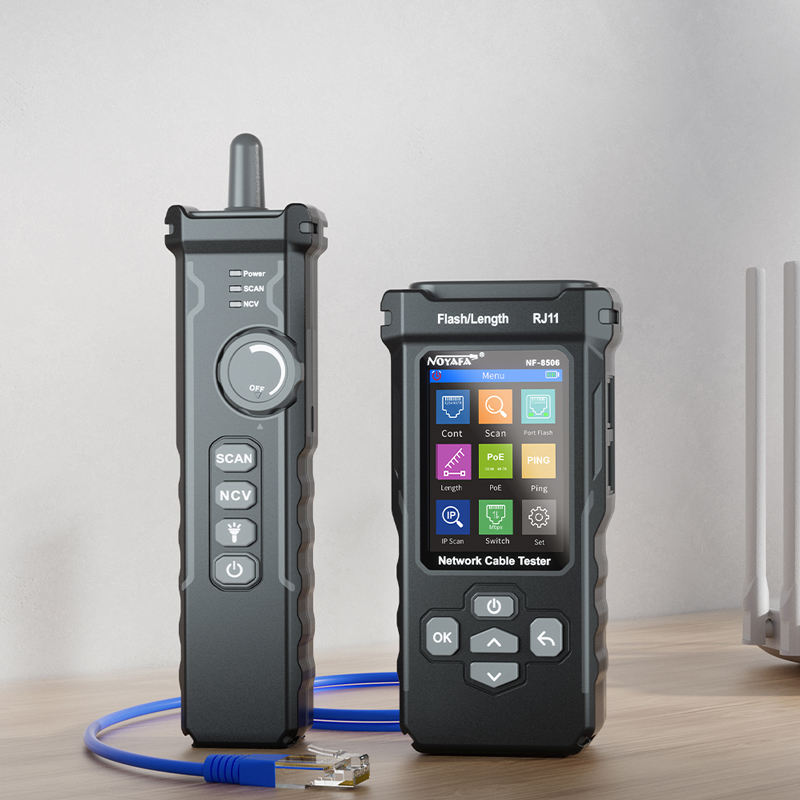

SP- 8506 NETWORK CABLE TESTER WITH IP,POE & WIRE TRACKING
SP-8506 multifunctional network cable tester tool is designed for network engineers, IT professionals and DIY enthusiasts. Whether you are performing home network, commercial industrial communication network installation and maintenance, the portable cable tester is a must-have internet repair tool for anyone involved in network setup or cable scanning troubleshooting. Ideal for professional installation of smart home networking equipment or for troubleshooting network cables on construction sites.

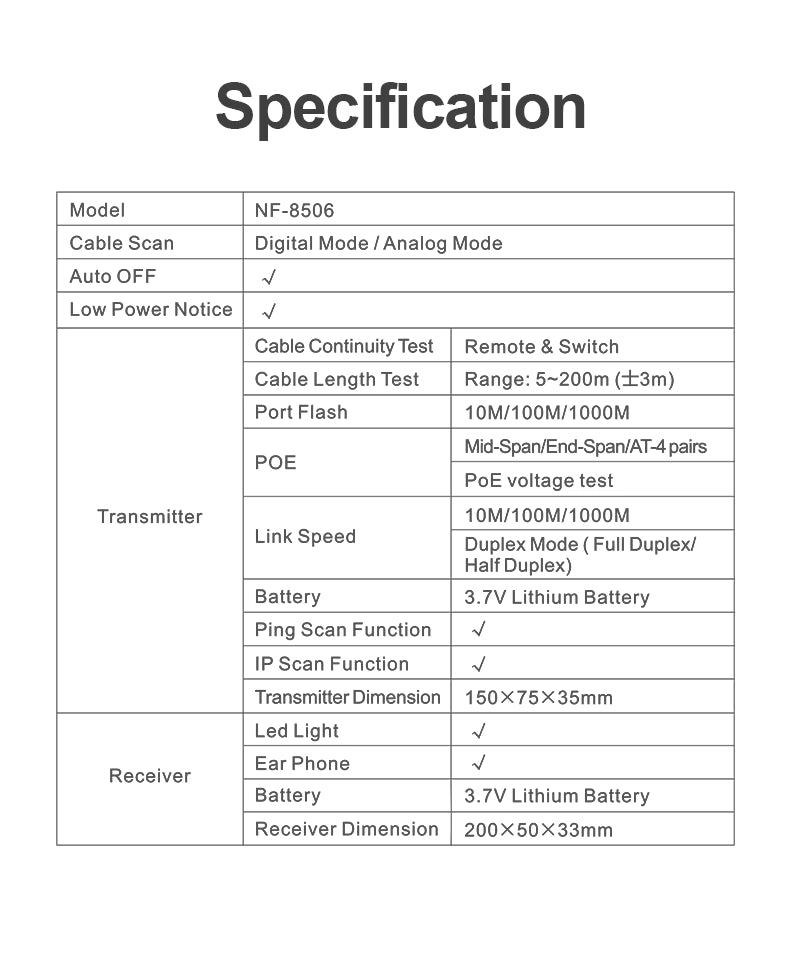

Specification
Details
Cable Testing

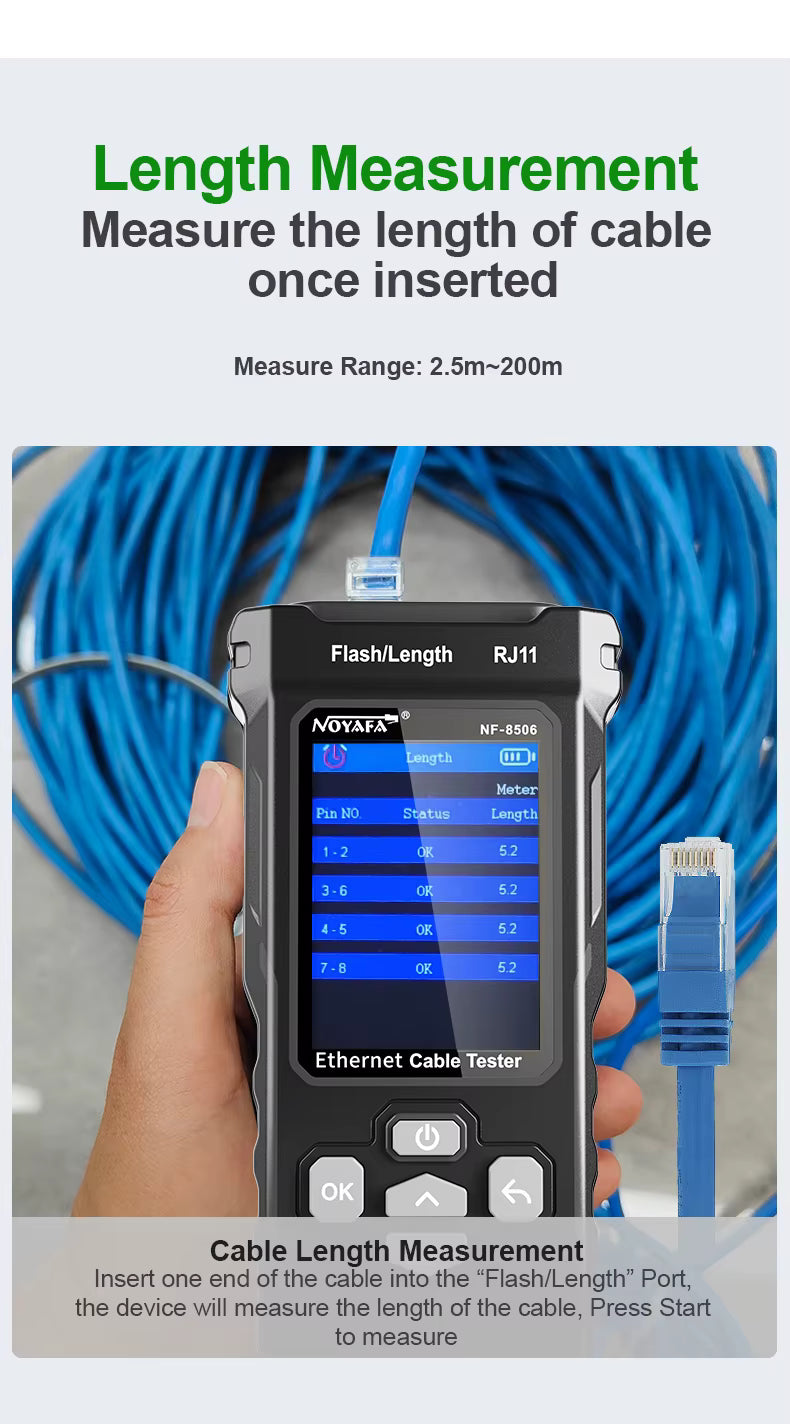

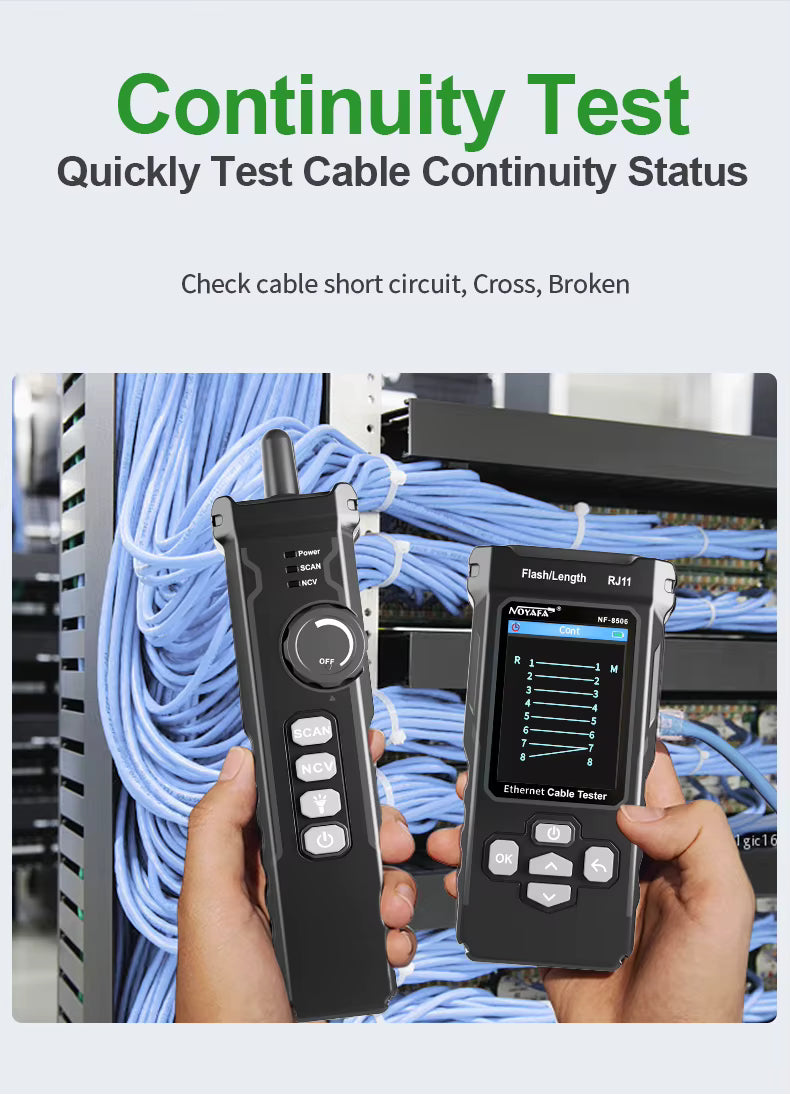

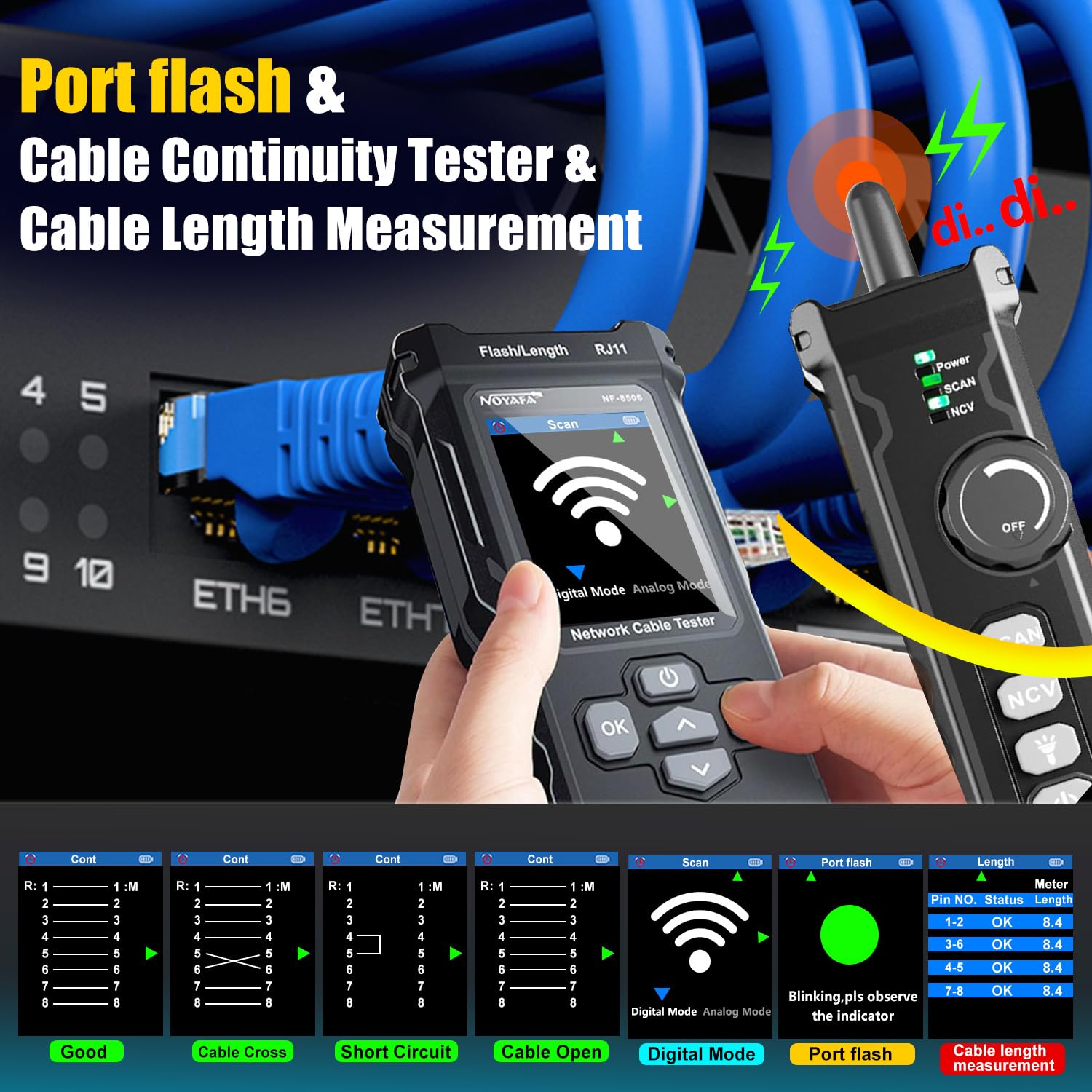

Multifunction tester for RJ11 / RJ45 CAT5 / CAT6 cables; detects connectivity, open/short faults, anti-interference capability; measures cable length using TDR technology (2.5m–200m, 8.2–656ft); real-time fault location and length data
Network Testing Features

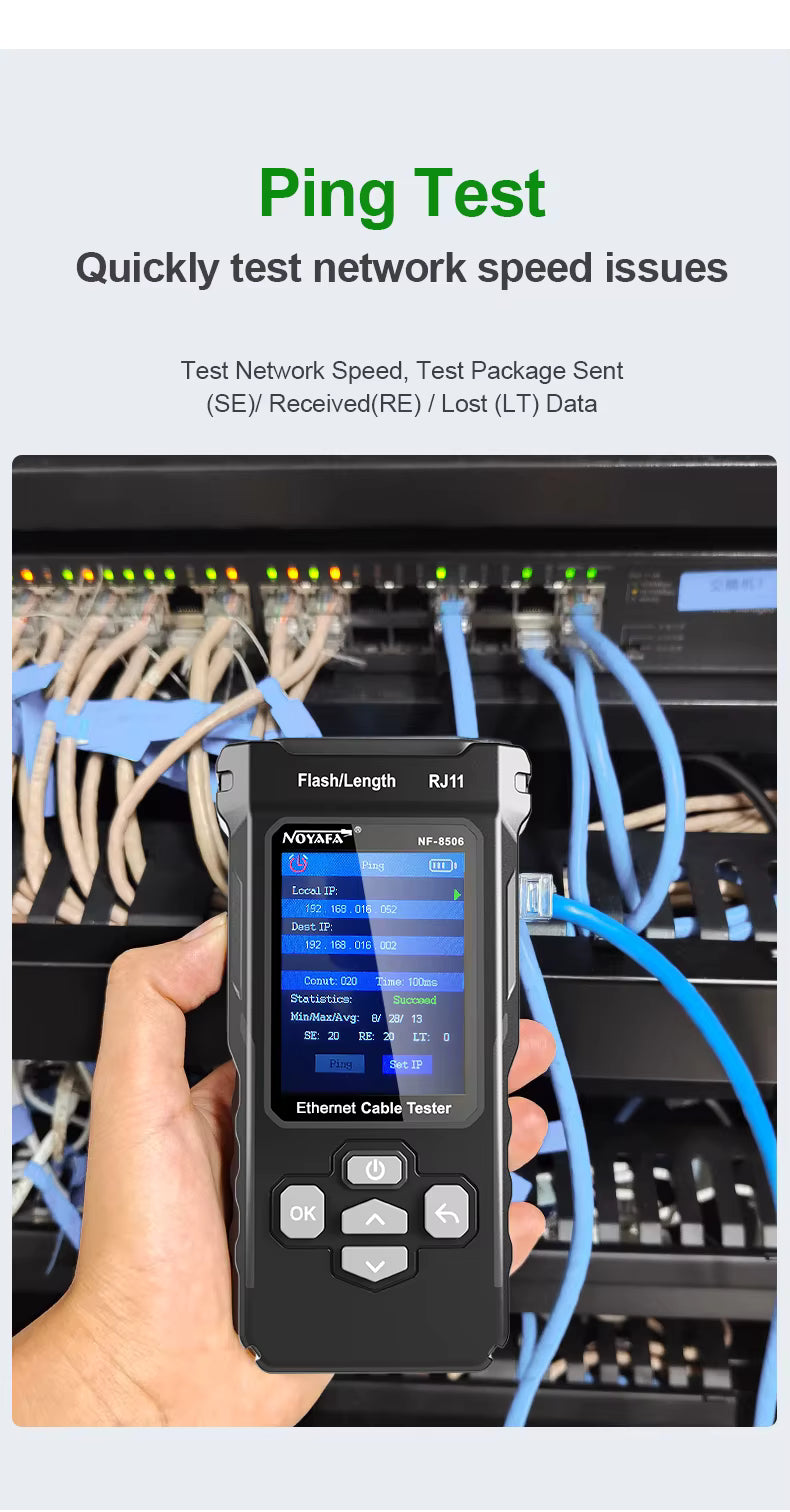

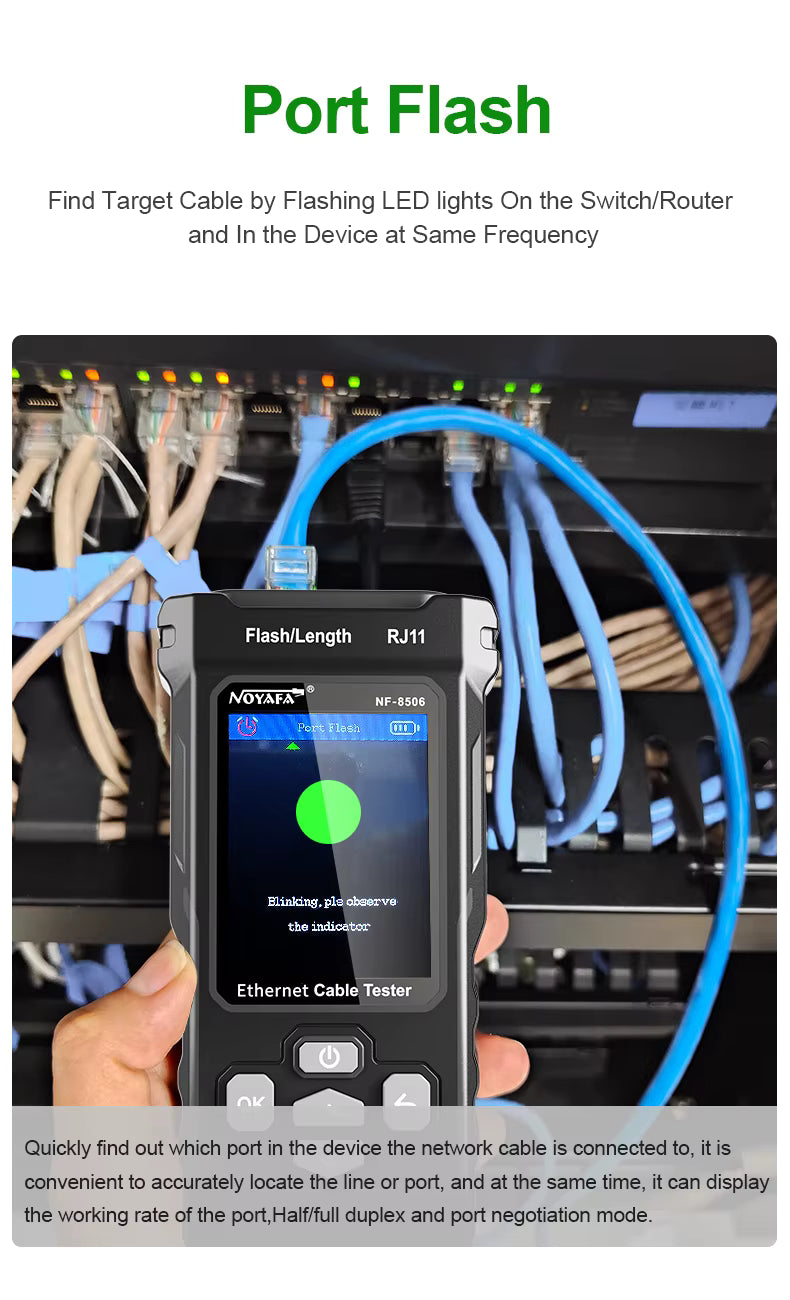

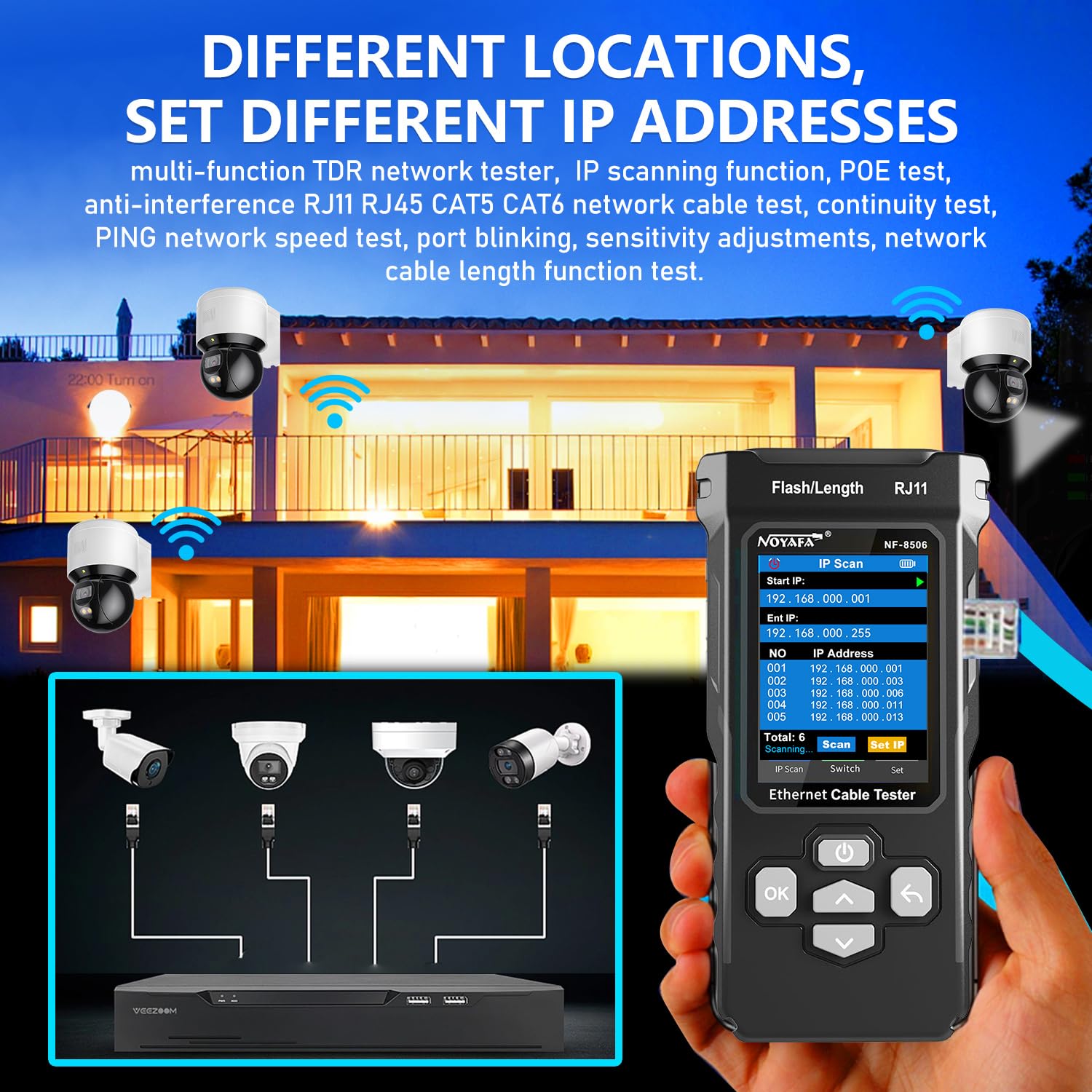

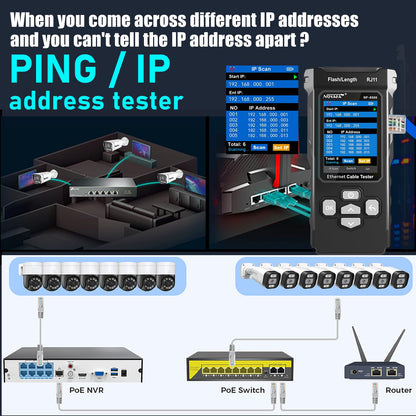

Scans IP networks; supports PING and network speed tests; verifies LAN TCP/IP connectivity, round-trip time, network traffic load; port flashing with speed and duplex mode display; LED indicator for dark environments; sensitivity adjustment for trace/probe functions

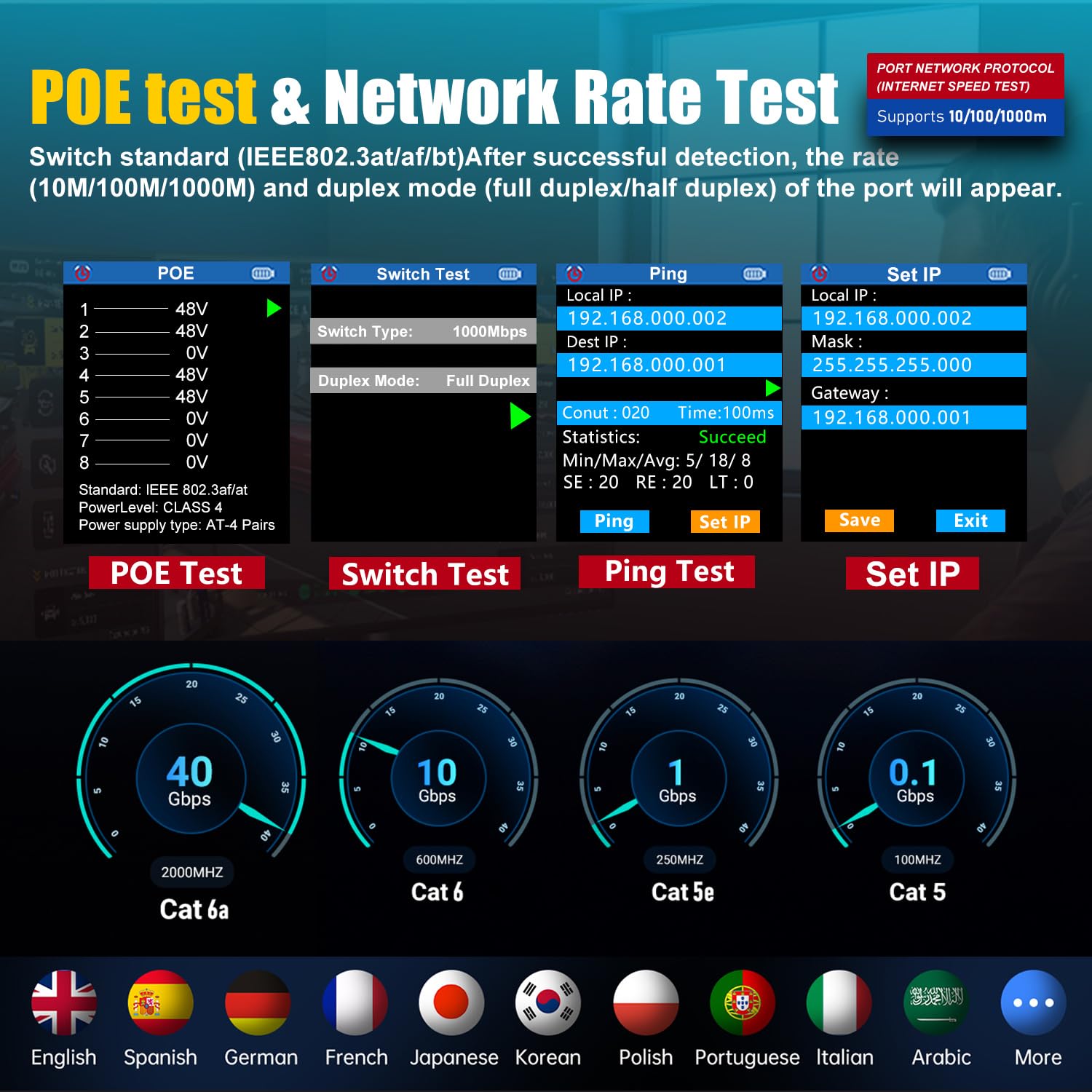

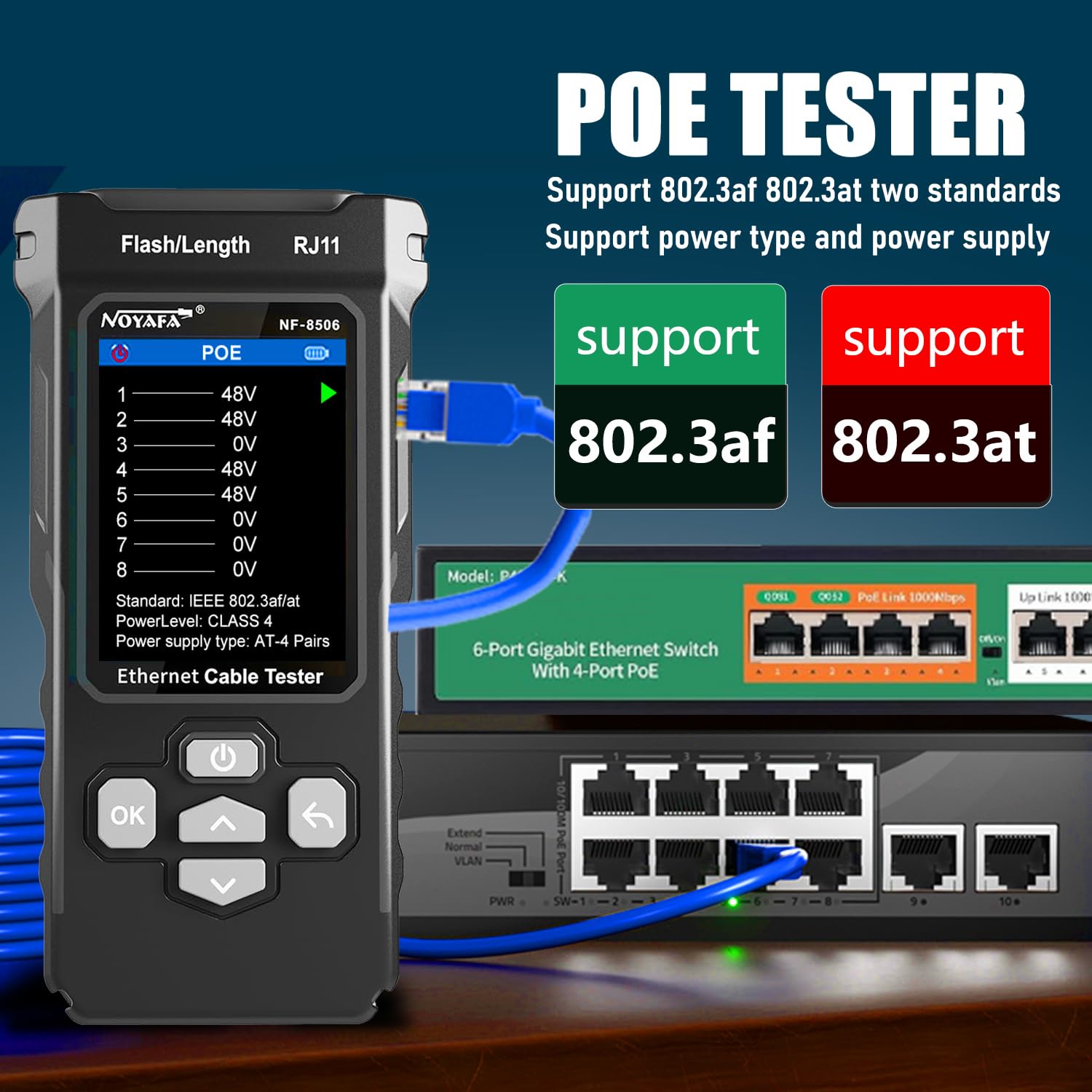

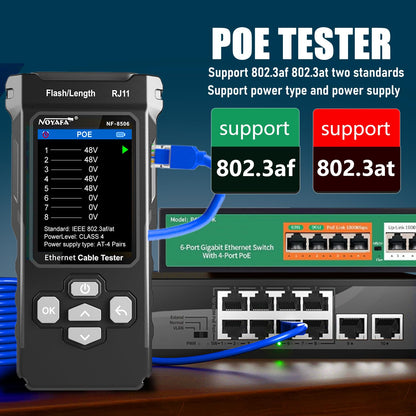

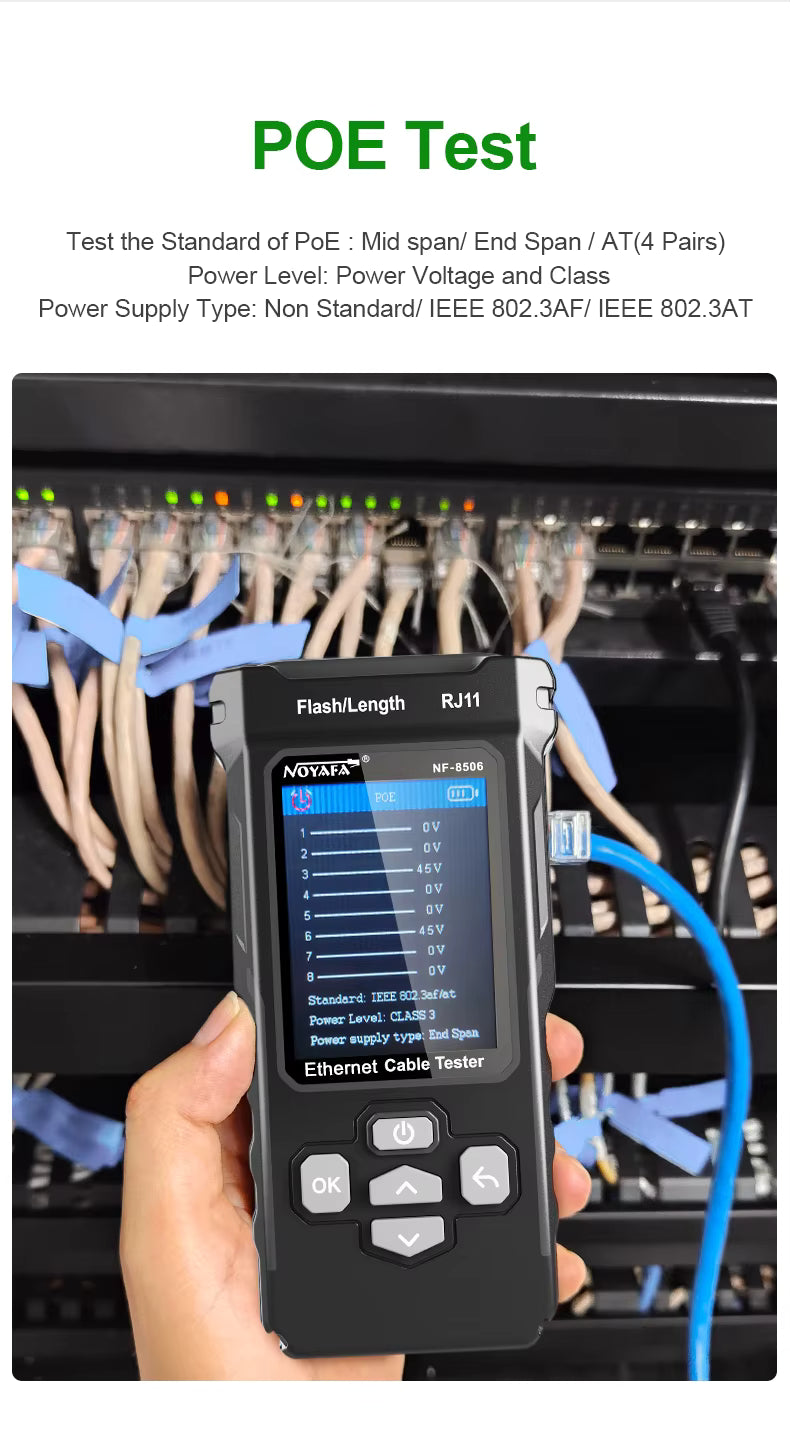

PoE Test
Identifies PoE devices; detects crossover modes (end-span, mid-span, 8-core supply, polarity); supports IEEE 802.3af/at and non-standard detection; auto-detects 10M/100M/1000M link speeds; PoE voltage and power test with cable tracing and short-circuit interruption detection
Additional Features

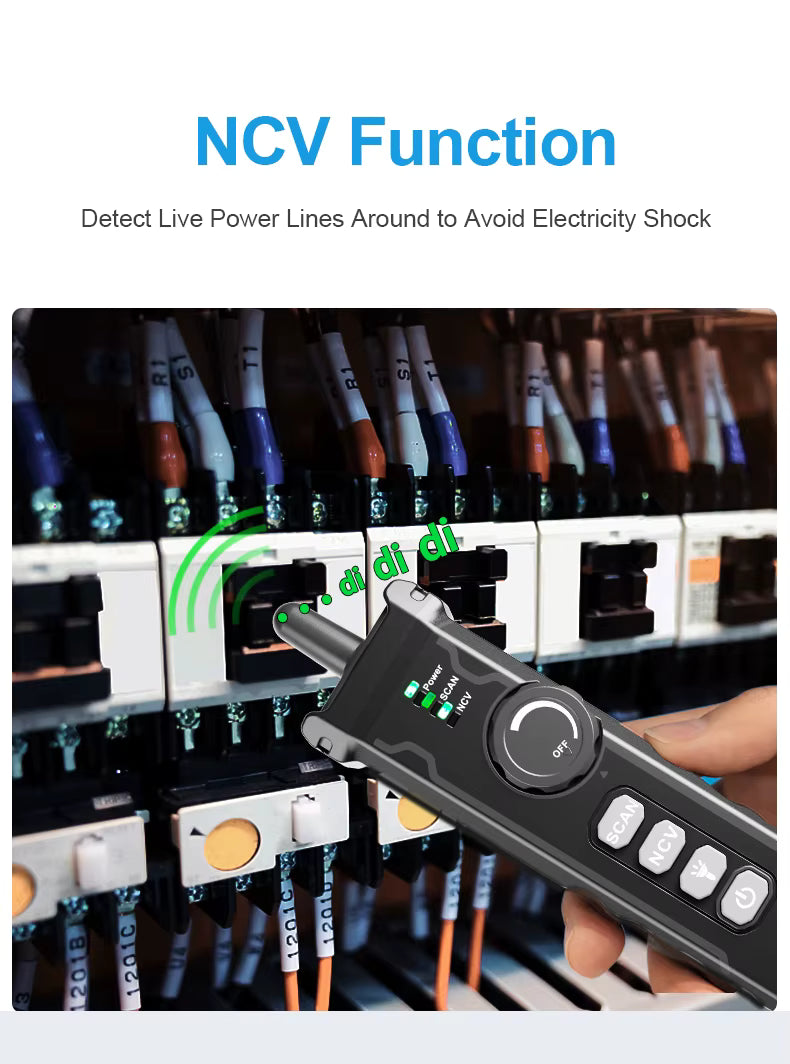

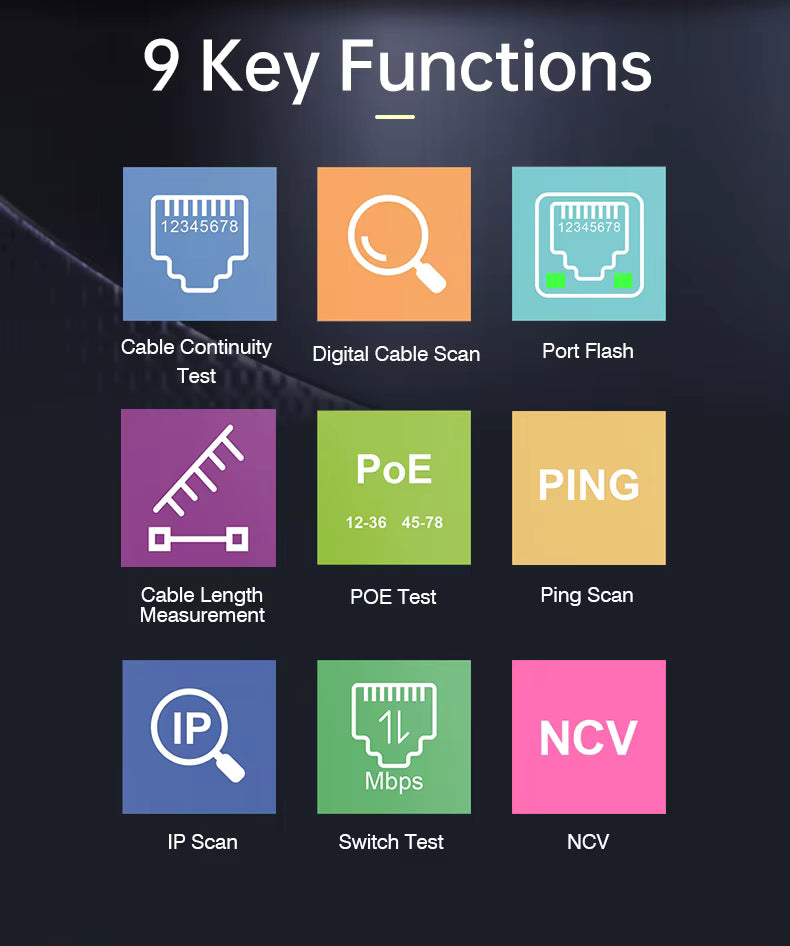

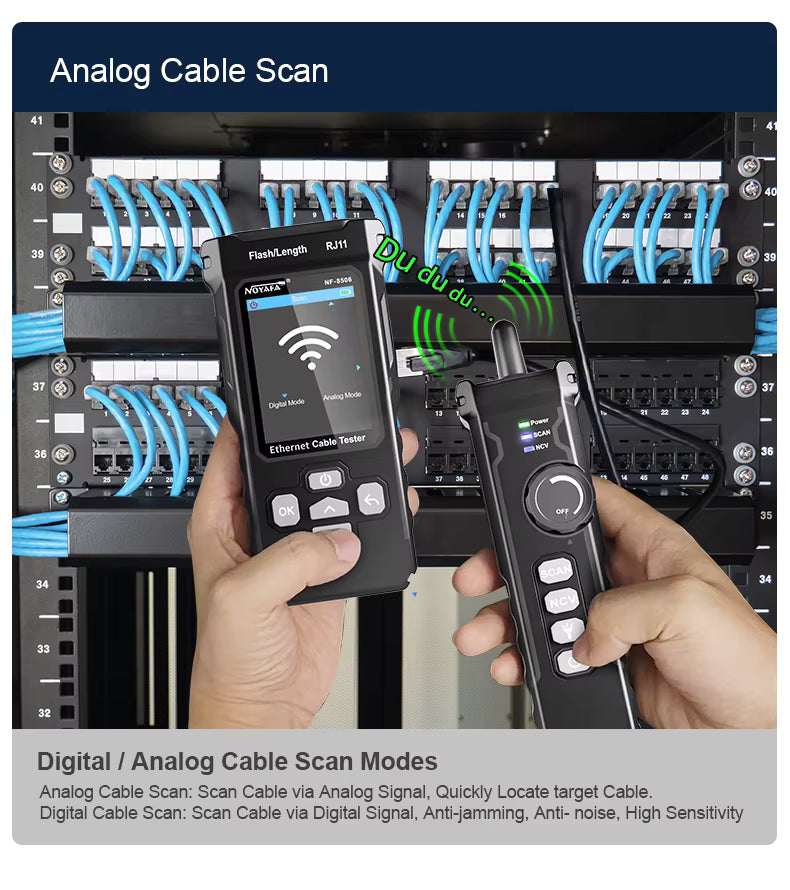

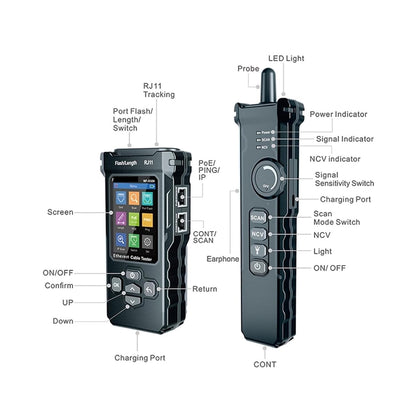

Multifunction LED / NVC locator for cable identification; LCD screen for test readouts; suitable for professional engineering, networking, and maintenance; APP cloud management for remote diagnostics
Typical Applications
Diagnose and maintain LAN; detect connectivity and cable faults; perform ping speed tests; measure server/website responsiveness; installation, engineering cabling, and IT personnel usage
