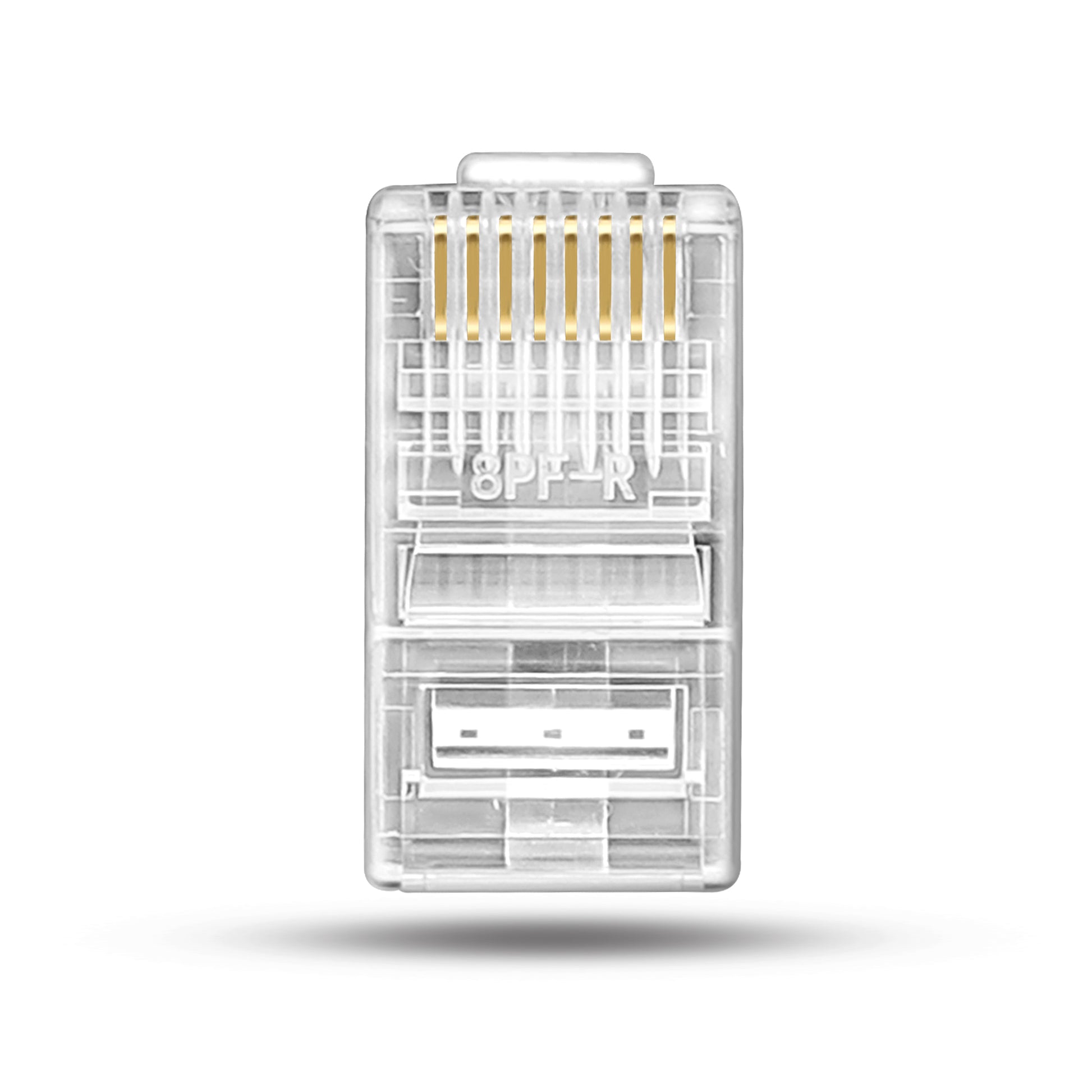

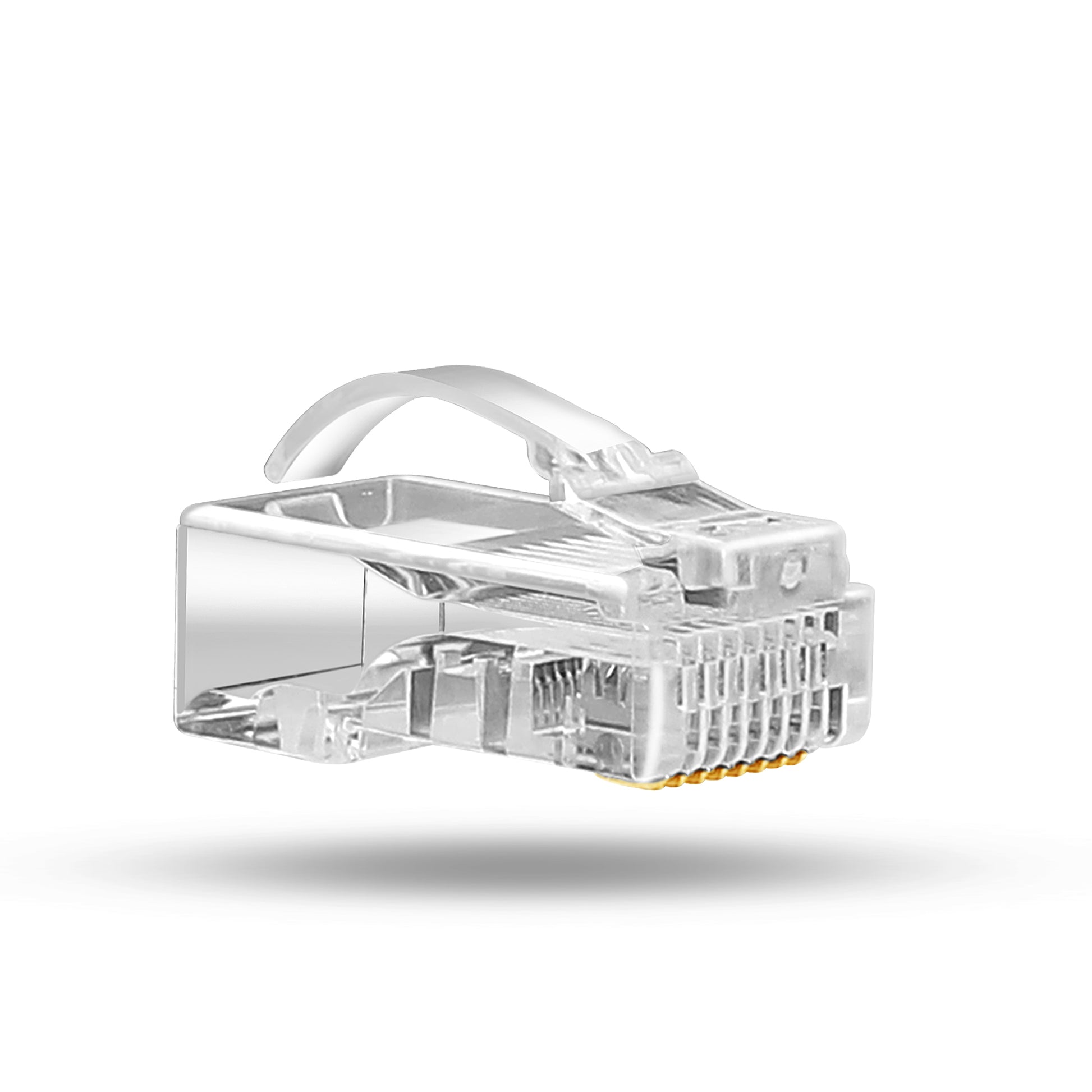

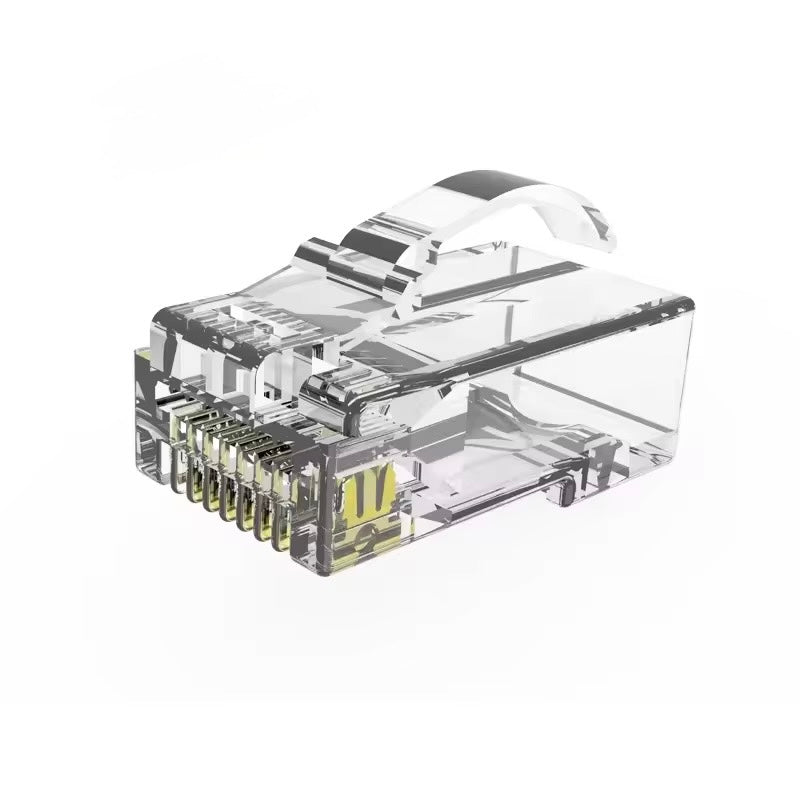

SP- CAT-6 UTP RJ45 ARCHED CONNECTOR

The CAT-6 RJ45 Connector with Unique Arched Design is engineered for reliable and efficient network cable terminations. Designed specifically for CAT-6 UTP cables, it delivers stable performance for Ethernet applications up to 1 Gbps.

The connector features a unique arched design that improves cable fit, enhances strain relief, and helps maintain an optimal bend radius. This reduces cable stress and improves long-term durability in both professional and home installations.

Constructed with high-quality polycarbonate housing, the transparent body allows easy wire alignment during installation. The connector is equipped with 3-micron gold-plated contacts to ensure strong conductivity, reduced signal loss, and resistance to corrosion.

Compatible with standard RJ45 (8P8C) ports and crimping tools, it supports both solid and stranded CAT-6 UTP cables within the 23–26 AWG range, making it suitable for a wide range of networking applications.

Product Specifications

Key Features

• Unique arched design for improved cable management and strain relief
• Supports CAT-6 Ethernet applications up to 1 Gbps
• 3µ gold-plated contacts for reliable signal transmission
• Durable and transparent polycarbonate housing
• Compatible with standard RJ45 ports and crimping tools
• Supports 23–26 AWG solid and stranded CAT-6 UTP cables
• Suitable for professional and home network installations
