SP- CAT-6 UTP RJ45 PASS THROUGH CONNECTOR
SP- CAT-6 UTP RJ45 PASS THROUGH CONNECTOR
Couldn't load pickup availability

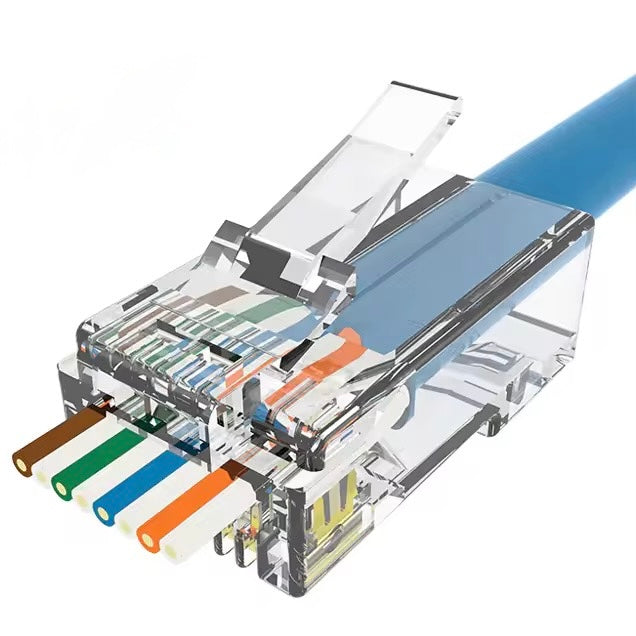

The CAT-6 Pass-Through RJ45 Connector is designed for fast, accurate, and reliable network cable terminations. Its pass-through design allows wires to extend through the connector, making it easier to verify proper alignment before crimping and reducing installation errors.
Engineered for CAT-6 performance, this connector supports data speeds up to 1 Gbps and complies with TIA/EIA-568-B.2 standards. It is ideal for both professional installers and DIY users seeking efficient and consistent results.

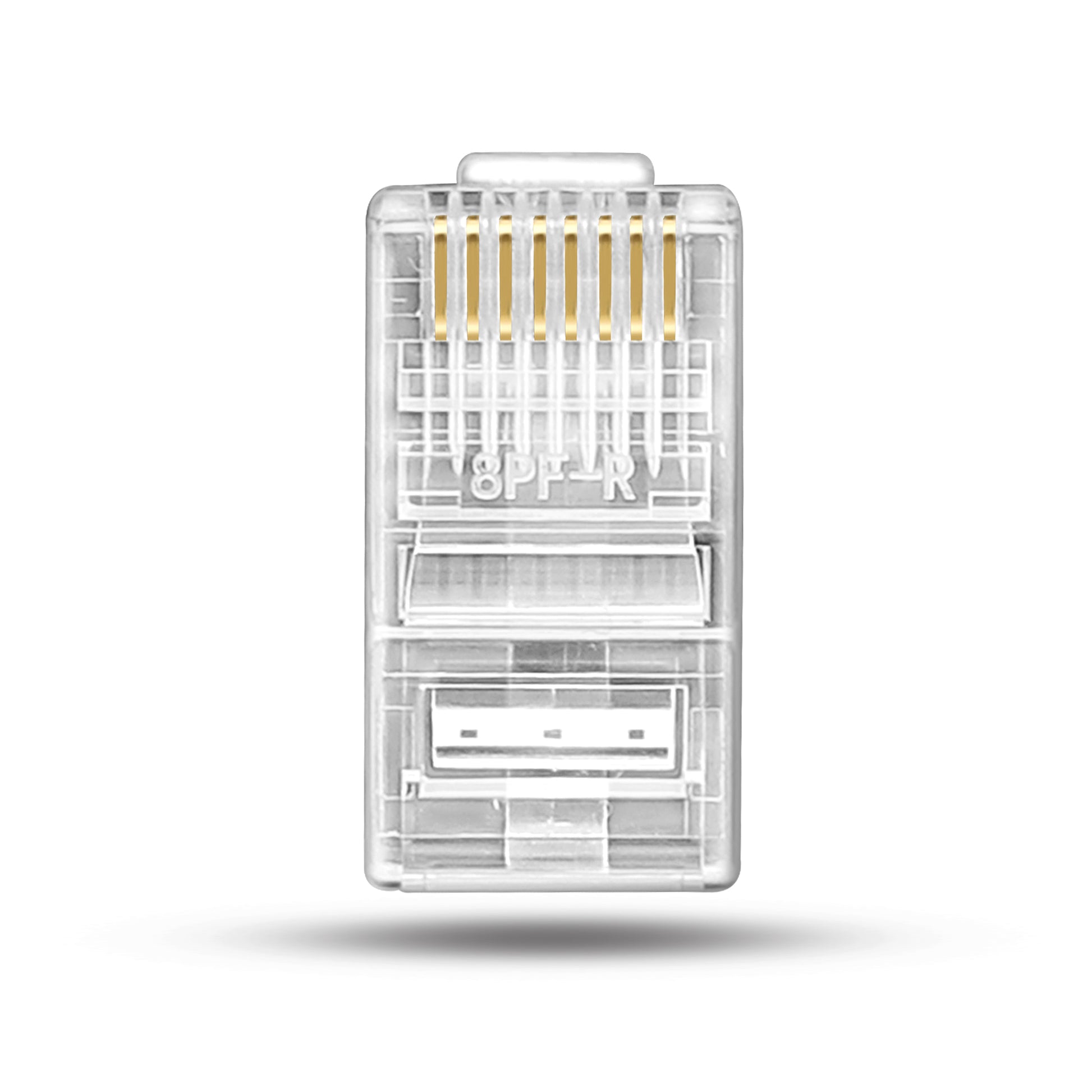

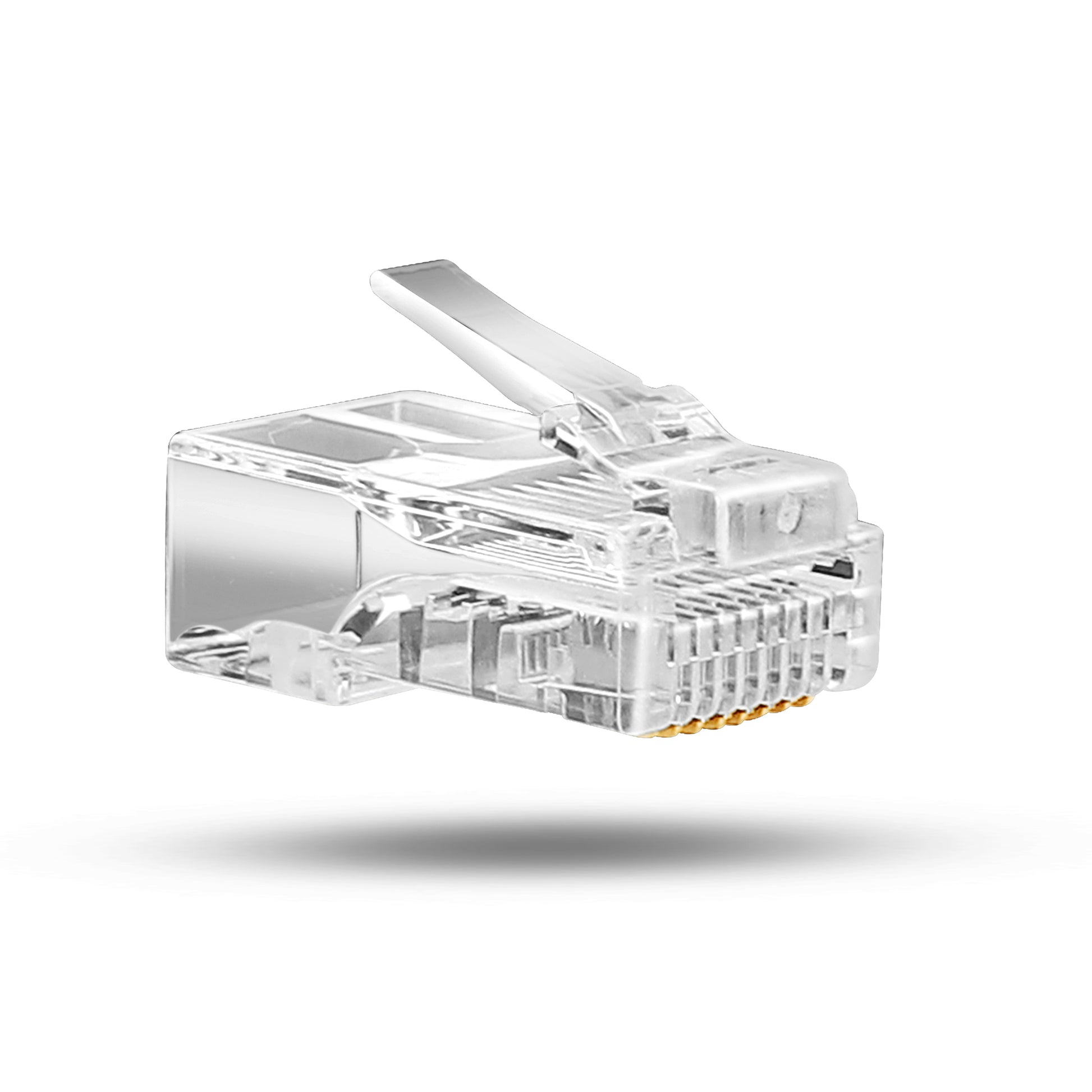

The connector features 3-micron gold-plated phosphor bronze contacts, ensuring strong conductivity, stable signal transmission, and resistance to corrosion. Built with high-density polycarbonate material, it offers durability and long-lasting performance.
Compatible with unshielded CAT-6 (UTP) cables, including both solid and stranded conductors (23–26 AWG), this connector works seamlessly with standard pass-through crimping tools for hassle-free installation.
Product Specifications
| Specification | Details |
|---|---|
| Product Type | RJ45 Pass-Through Connector |
| Category | CAT-6 |
| Interface | 8P8C (RJ45) |
| Data Speed | Up to 1 Gbps |
| Standard Compliance | TIA/EIA-568-B.2 |
| Cable Type | UTP (Unshielded Twisted Pair) |
| Cable Compatibility | CAT-6 (23–26 AWG, solid & stranded) |
| Housing Material | Polycarbonate (PC) |
| Contact Material | Phosphor bronze |
| Gold Plating | 3µ (micron) |
| Durability | 1500 mating cycles |
| Certifications | UL / RoHS / REACH |
| Package Size | 15 x 10 x 2 cm |
| Gross Weight | 0.400 kg |
| Country of Origin | Made in Taiwan |
Key Features
- Pass-through design for easy and accurate wire alignment
- Supports CAT-6 performance up to 1 Gbps
- 3µ gold-plated phosphor bronze contacts for reliable conductivity
- Compatible with CAT-6 UTP cables (23–26 AWG)
- Durable high-density polycarbonate housing
- Compatible with standard pass-through crimping tools
- Suitable for professional and DIY installations
