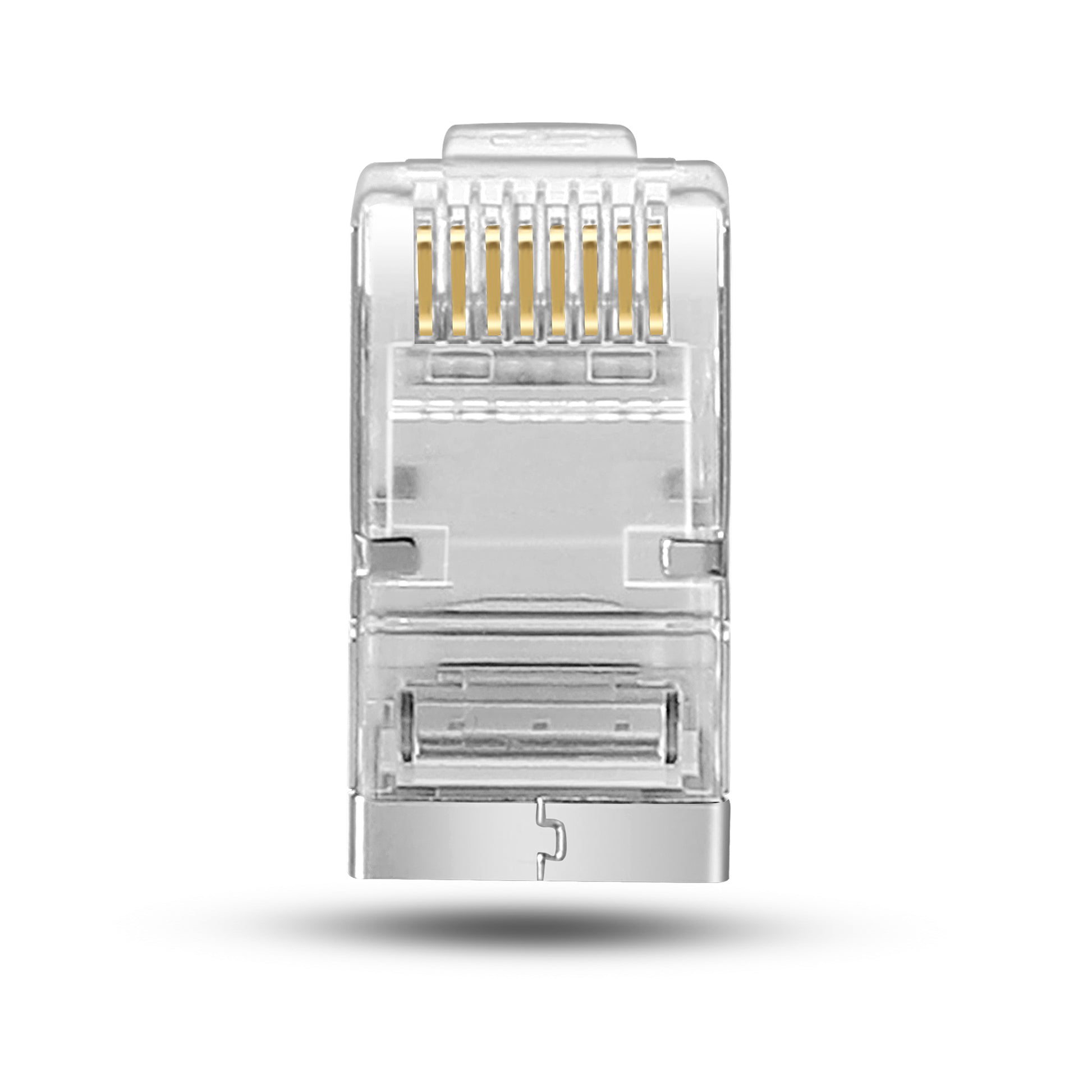

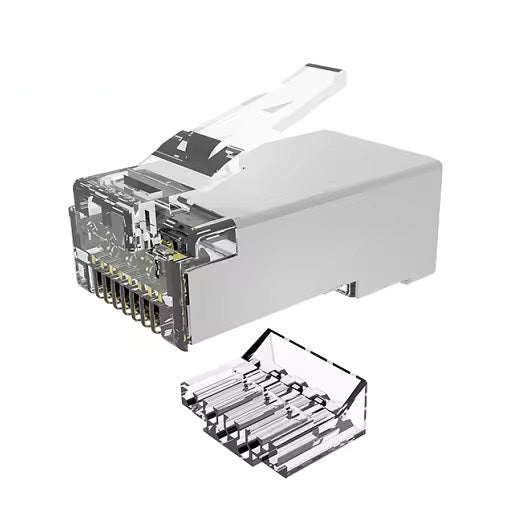

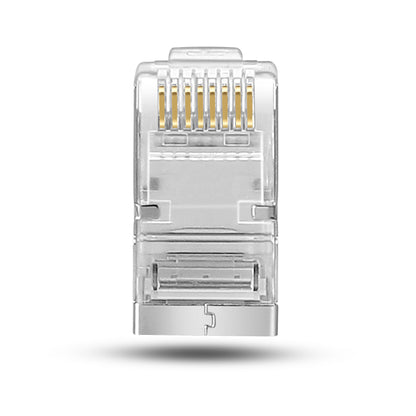

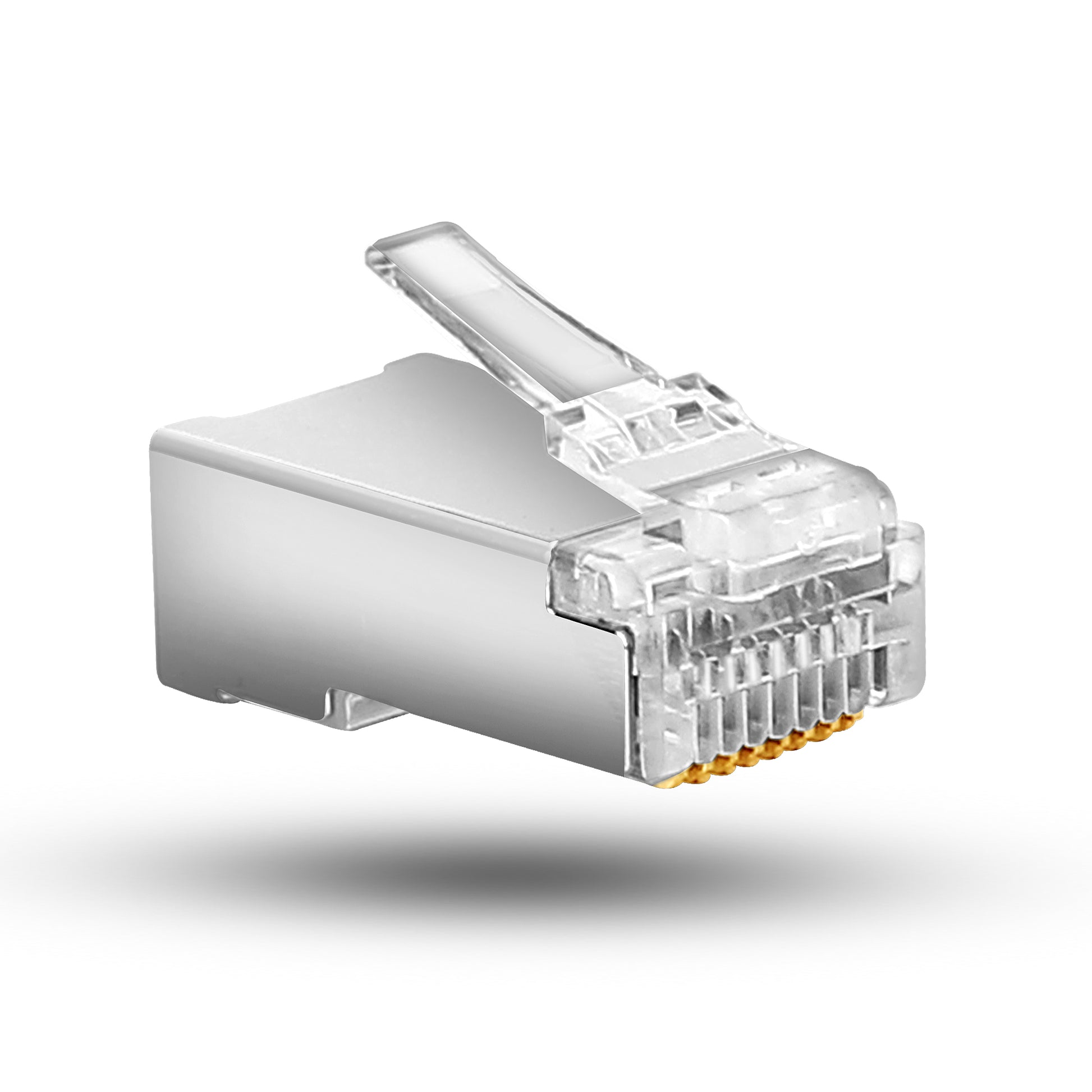

The CAT6A / CAT-7 STP RJ45 Shielded Connector is a high-performance networking component designed for professional-grade installations that demand reliable and interference-free connectivity. Built for high-speed data transmission, it supports up to 10 Gbps Ethernet and frequencies up to 600 MHz.
Featuring a Shielded Twisted Pair (STP) design, this connector effectively minimizes electromagnetic and radio frequency interference, ensuring stable and consistent signal quality even in demanding environments. The die-cast zinc alloy metal housing enhances durability while providing superior shielding performance.
Equipped with 3-micron gold-plated contacts, the connector ensures optimal conductivity, improved signal integrity, and resistance to corrosion. It is compatible with CAT6A and CAT7 shielded cables, supporting both solid and stranded conductors within the 23–26 AWG range.
Designed with a standard 8P8C interface, this connector integrates seamlessly with RJ45 ports, patch panels, and keystone jacks, making it ideal for structured cabling systems, data centers, and high-density network installations.
Product Specifications
Specification
Details
Product Type
RJ45 Shielded Connector (STP)
Category
CAT6A / CAT-7
Model Number
CAT6A / CAT-7 STP
Interface
8P8C (RJ45)
Data Speed
Up to 10 Gbps
Frequency
Up to 600 MHz
Shielding
Shielded Twisted Pair (STP)
Connector Housing
Die-cast zinc alloy
Gold Plating
3µ (micron)
Cable Compatibility
CAT6A / CAT7 (23–26 AWG, solid & stranded)
Durability
1500 mating cycles
Certifications
UL / RoHS / REACH
Package Size
15 x 10 x 2 cm
Gross Weight
0.400 kg
Country of Origin
Made in Taiwan
Key Features
Supports up to 10 Gbps Ethernet and 600 MHz frequency
Shielded design reduces EMI and RFI interference
Die-cast zinc alloy housing for durability and protection
3µ gold-plated contacts for enhanced signal transmission
Compatible with CAT6A and CAT7 cables (23–26 AWG)
Suitable for professional and high-density network setups
