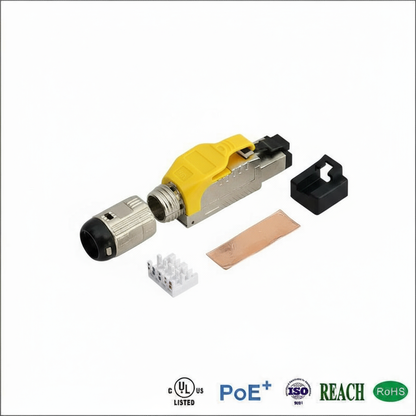

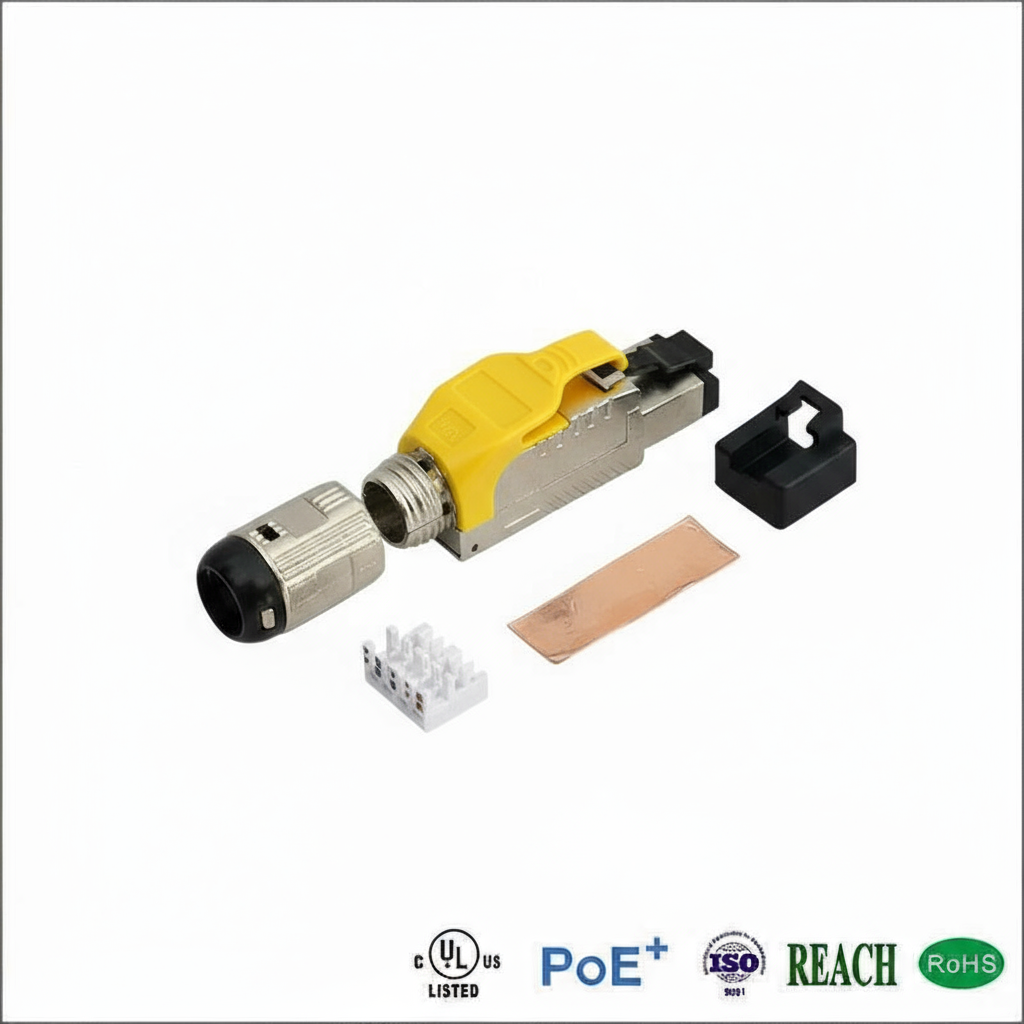

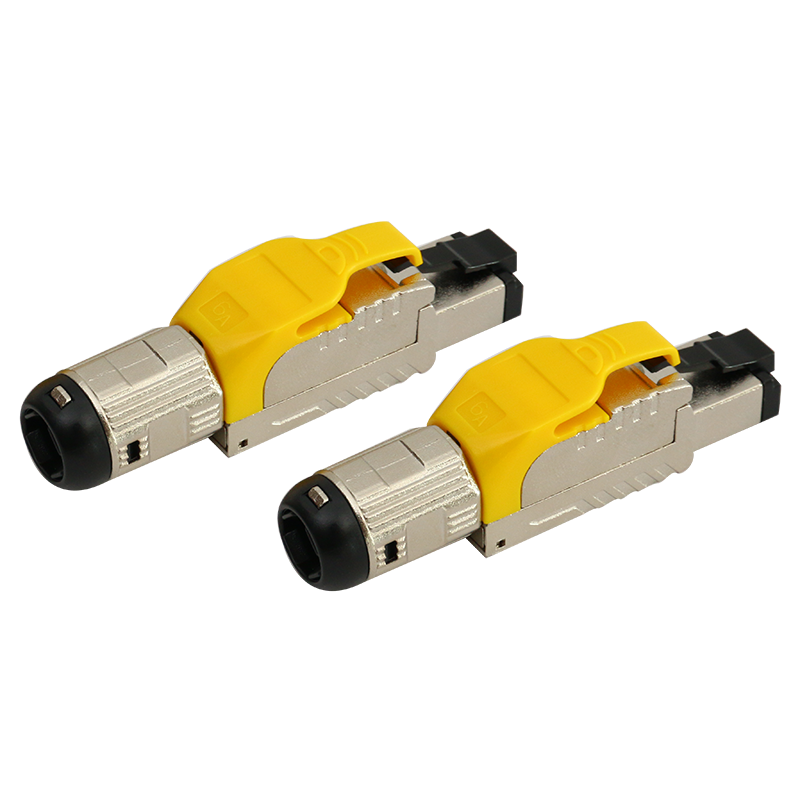

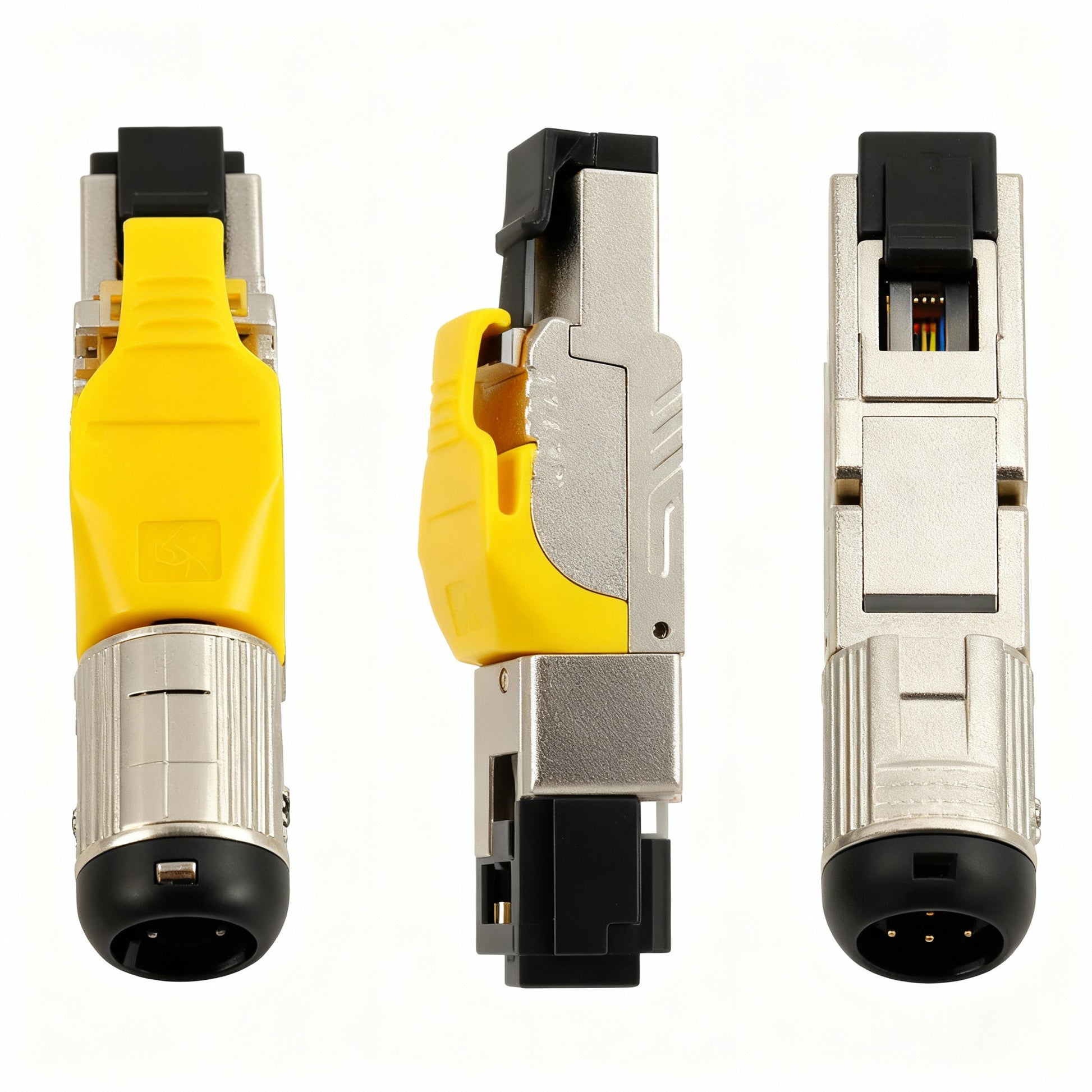

SP- CAT-8 RJ45 TOOL LESS CONNECTOR
The SP RJ45 CAT-8 Tool-less Connector is a premium, shielded modular plug designed for high-speed data transmission up to 40Gbps. Engineered for easy and efficient installation, this connector eliminates the need for crimping tools, making it ideal for professional installers and field engineers. Its robust metal housing ensures superior shielding against EMI/RFI interference, while the tool-less design provides a secure and reliable termination in minutes.
Perfect for data centers, high-speed LANs, and PoE/PoE+ applications, this connector supports CAT-8 cables and backward compatibility with CAT-7, CAT-6A, and CAT-6 standards.
| Specification | Details |
|---|---|
| Type | RJ45 CAT-8 Shielded Tool-less Connector |
| Category | CAT-8 (Backward compatible with CAT-7 / CAT-6A / CAT-6) |
| Data Rate Support | Up to 40 Gbps |
| Frequency Bandwidth | Up to 2000 MHz |
| Termination Design | Tool-less termination (no crimping required) |
| Housing Material | Shielded zinc alloy housing for EMI/RFI protection |
| Installation | Reusable, field-installable design |
| Conductor Compatibility | 22–26 AWG solid & stranded cables |
| Wiring Scheme | Supports T568A & T568B standards |
| Durability | 750+ mating cycles |
| PoE Support | IEEE 802.3af / 802.3at / 802.3bt (PoE, PoE+, 4PPoE) |
| Operating Temperature | −40 °C to +85 °C |
| Certifications | UL Listed, RoHS, REACH, ISO 9001, PoE+ compliant |
| Applications | Data centers, server rooms, high-speed enterprise networks, PoE/PoE+ powered devices |
