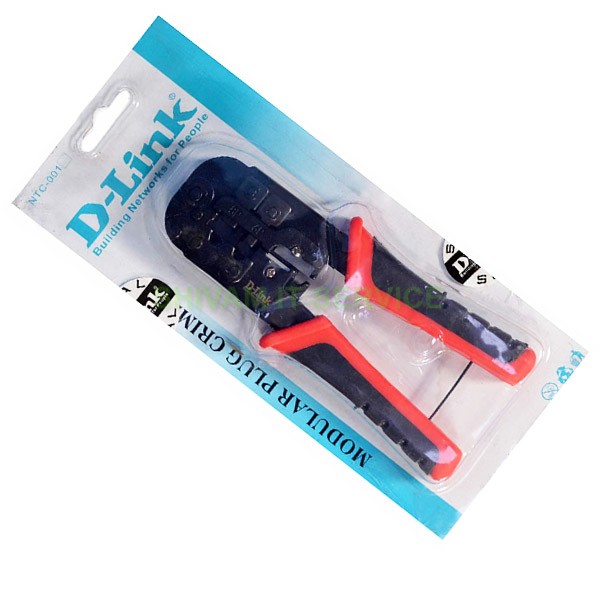

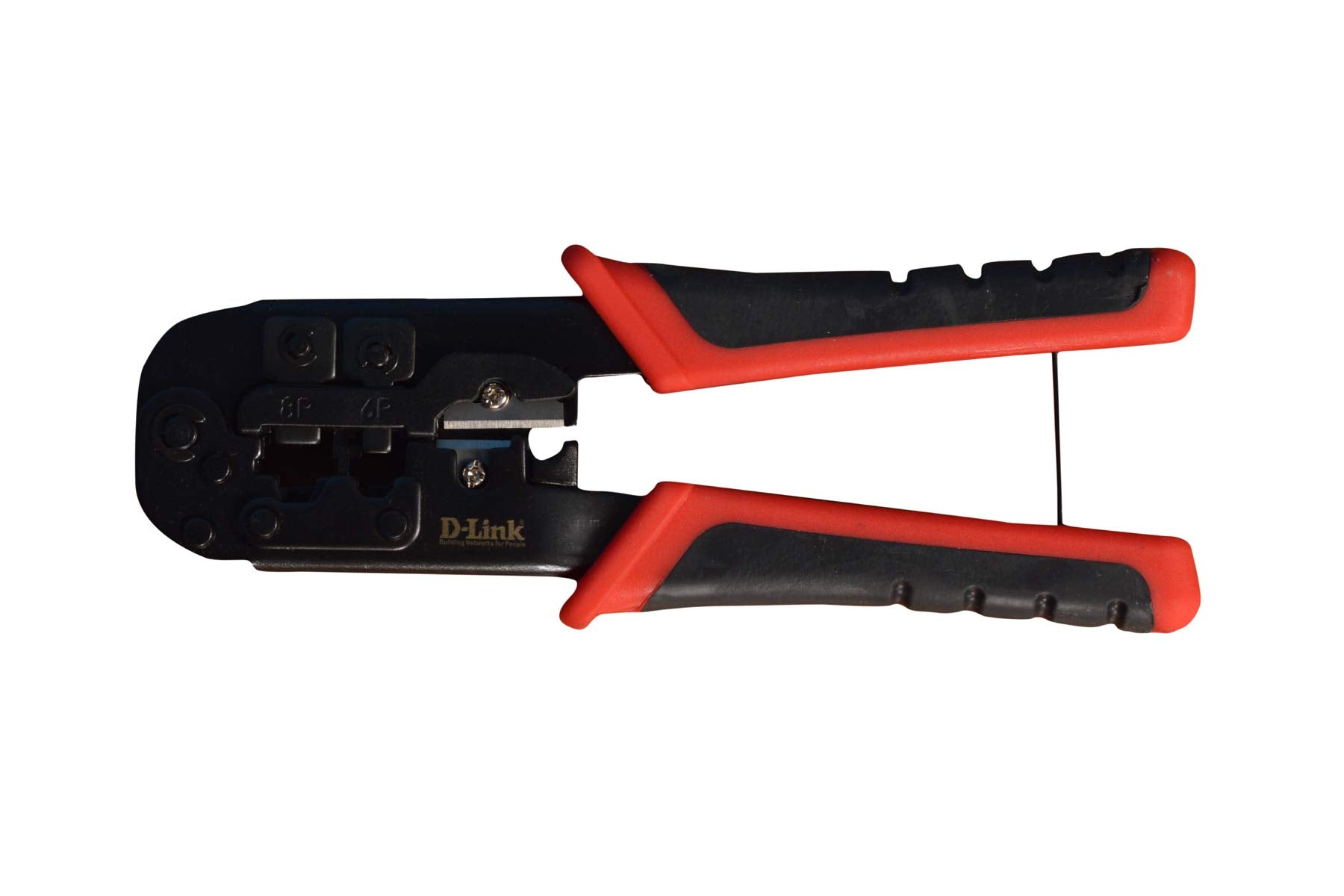

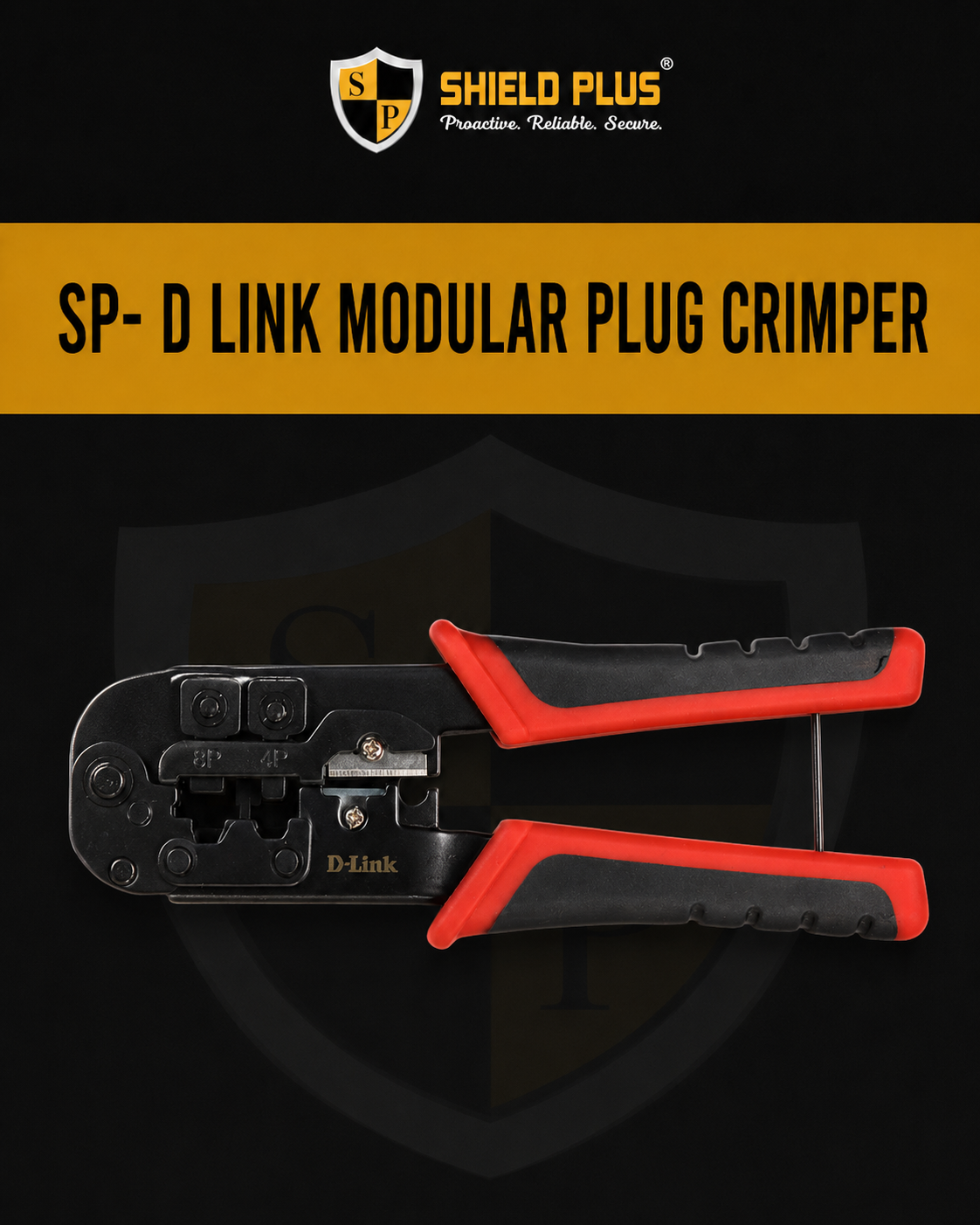

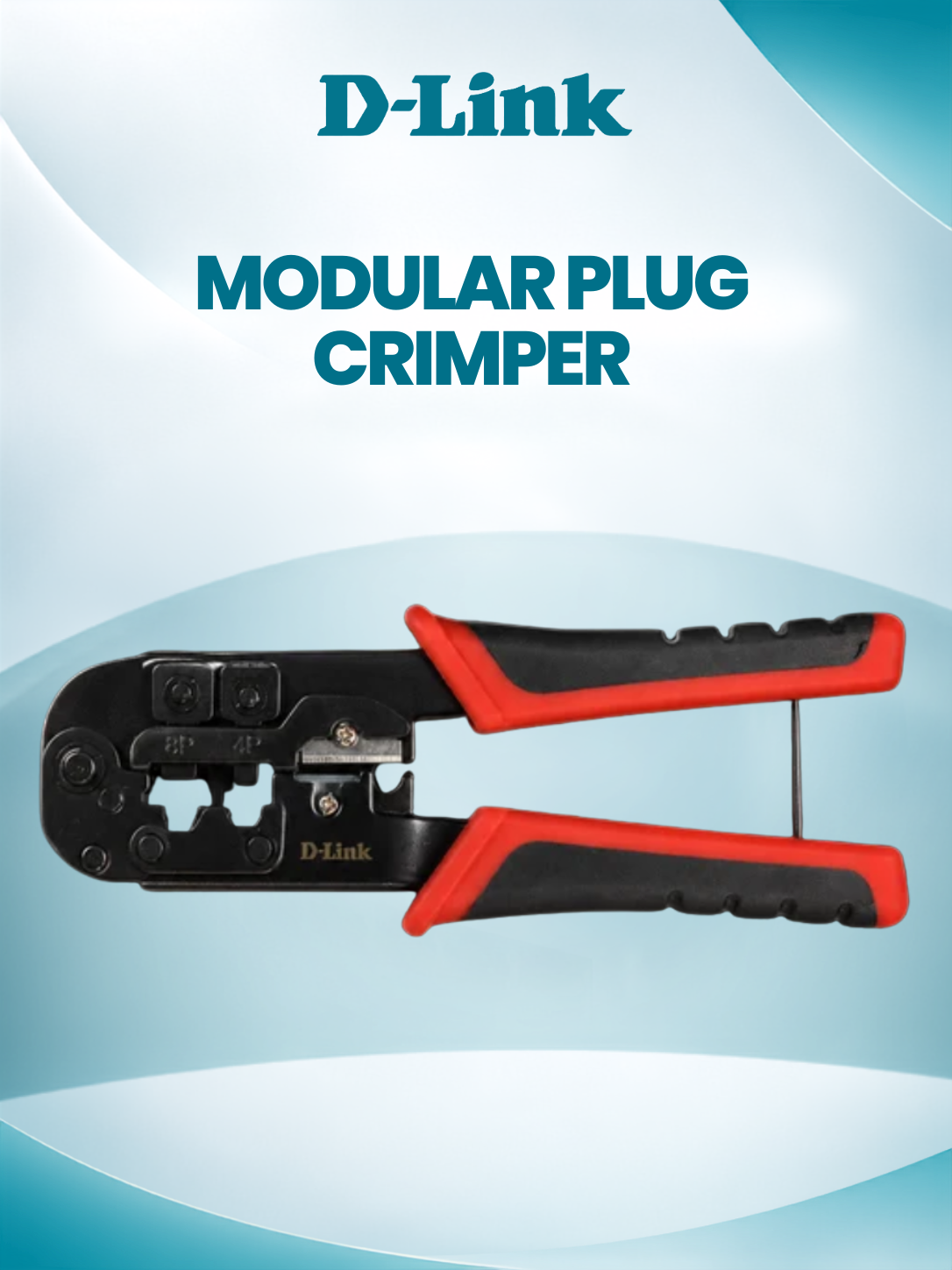

SP- D LINK MODULAR PLUG CRIMPER
SP- D LINK MODULAR PLUG CRIMPER
Couldn't load pickup availability
Multi-Connector Versatility: Seamlessly handles everything from commercial-grade local area network (LAN) drop cables to traditional analog telephone terminal lines.
Impact-Absorbing Steel Handles: Reinforced metal handle framing guarantees long-term durability and prevents flexing over thousands of crimp iterations, while the outer padding limits user hand fatigue.
Precise Insulation Stripping: Features a calibrated depth-stop on the integrated stripper bay, which cleans away the outer PVC jacket smoothly without scoring or slicing the internal insulated wire strands.
High Crimp Efficiency: Designed with exact molding contours that align precisely with modular pin arrays, producing dependable connections that comply with EIA/TIA 568 A/B standards.
Key Specifications
| Specification | Details |
|---|---|
| Model Number | NTC-001 |
| Tool Type | Modular Plug Crimping Tool |
| Supported Connectors | RJ-45, RJ-12 and RJ-11 |
| Supported Cable Types | Cat5e, Cat6, Cat6A and telephone cable |
| Wire Gauge Compatibility | 22–26 AWG |
| Conductor Type | Solid or stranded copper |
| Body Material | Hardened structural carbon steel |
| Tool Length | 7.5 inches |
| Handle Material | Steel with non-slip PVC cushioning |
| Integrated Functions | Cable crimping, cutting and jacket stripping |
| Additional Feature | Adjustable length-stop mechanism |
| Colour | Red and black |
| Weight | Approx. 280g |
