Shieldplus

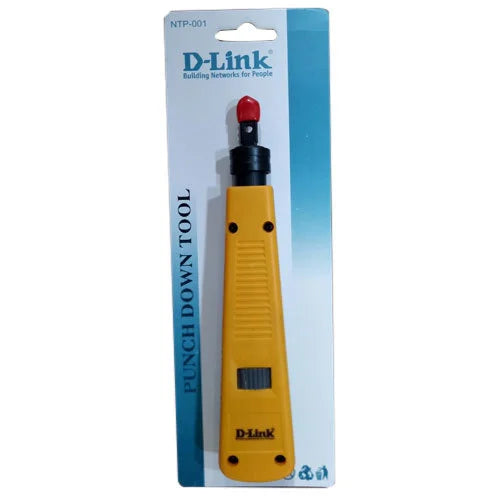

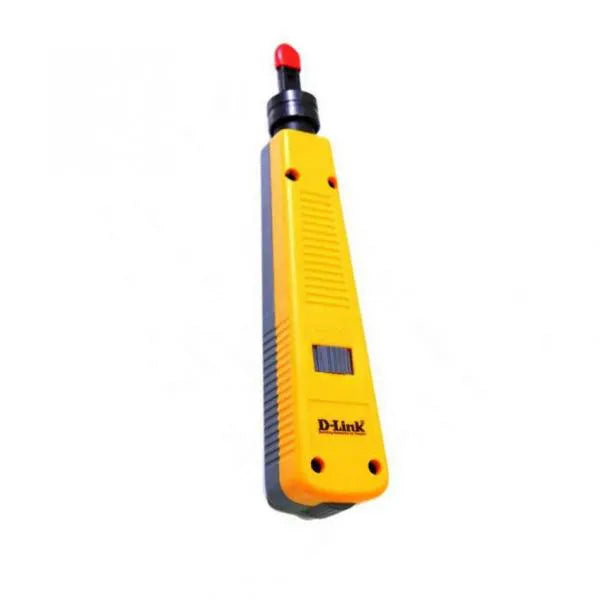

SP- D-LINK PUNCH DOWM TOOL
SP- D-LINK PUNCH DOWM TOOL
Couldn't load pickup availability
Dual Blade Compatibility: Includes reversible twist-and-lock blades (usually 110/Krone) with a cutting edge on one end and a non-cutting seating edge on the other.
Adjustable Impact Pressure: Features an adjustable force dial at the base. The Low setting is ideal for delicate terminal blocks, while the High setting drives thick-jacketed Cat6A conductors effortlessly into heavy patch panels.
Integrated Secondary Tools: Features an integrated wire hook to easily pull a wrongly punched wire out of an IDC slot, and a flat spudger tool to clear debris or press modules down.
Ergonomic Design: Engineered with non-slip finger grips and an impact-absorbing palm pad to reduce user hand fatigue during large-scale network deployments.
Key Specifications
| Specification | Details |
|---|---|
| Tool Type | Impact Punch Down Hand Tool |
| Compatible Blades | Standard 110 and Krone |
| Optional Blade Support | 66/88 on selected models |
| Body Material | Glass-fiber reinforced ABS plastic |
| Blade Material | Hardened alloy / carbon steel |
| Impact Settings | Adjustable High and Low |
| Low Impact Force | 11–15 kg |
| High Impact Force | 16–20 kg |
| Built-In Accessories | Wire hook and micro-spudger/screwdriver |
| Overall Length | Approx. 175–180mm |
| Weight | Approx. 130–150g |
