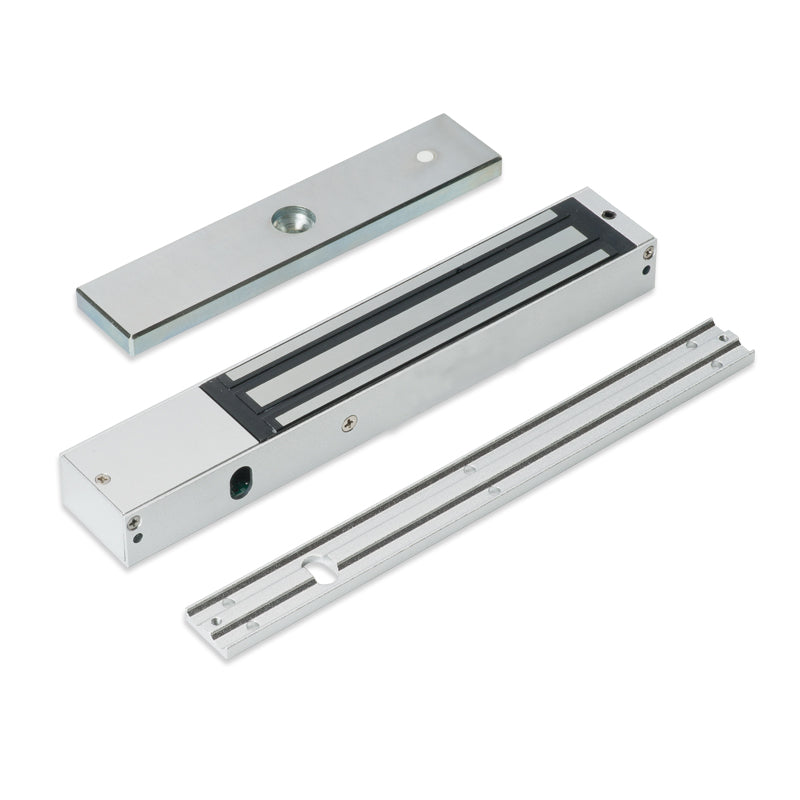

SP-EM LOCK 600 LBS
SP-EM LOCK 600 LBS
Couldn't load pickup availability
Instantaneous Release: Built-in smart circuitry and kick-off buttons eliminate residual magnetism, allowing the door to open immediately when power is cut.Silent Performance: Complete absence of mechanical humming or buzzing common in traditional electronic strikes.Self-Alignment: The armature plate is intentionally designed to pivot slightly to compensate for door drop or slight misalignment over time.Optional Status Monitoring: Many models include a built-in Hall Effect Sensor, Reed Switch, or LED indicators (e.g., Green = Locked, Red = Released) to provide feedback on door and lock status directly to an access control panel.Surge Protection: Equipped with built-in metal oxide varistors (MOV) or surge/spike protection PCBs to safeguard the system from electrical back-EMF.Common Application
| Feature / Specification | Standard Details |
|---|---|
| Holding Force | 600 lbs / 250–280 kg (Maximum) |
| Input Voltage | Dual Voltage Selectable: 12V DC or 24V DC ($\pm10%$) |
| Current Consumption | $\sim$500mA @ 12V DC$\sim$250mA @ 24V DC |
| Operating Temperature | -10°C to +55°C (14°F to 131°F) |
| Operating Humidity | 0% to 95% (Non-condensing) |
| Housing Material | High-strength Anodized Aluminum / Alloy |

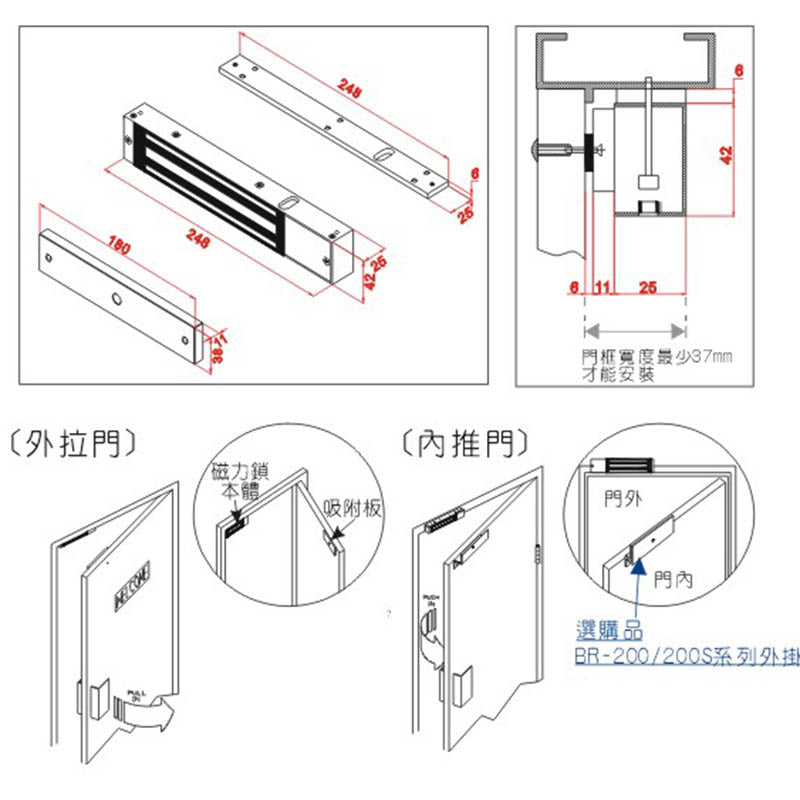

| Lock Dimension (Approx.) | 250mm (L) $\times$ 42mm (W) $\times$ 25mm (D) |
| Armature Plate Dimension | 180mm (L) $\times$ 38mm (W) $\times$ 11mm (H) |
| Approximate Weight | 1.6 kg to 2.0 kg |
