Shieldplus
SP- EXIT BUTTON METAL
SP- EXIT BUTTON METAL
Regular price
Rs. 177.00
Regular price
Sale price
Rs. 177.00
Unit price
/
per
Taxes included.
Couldn't load pickup availability
Vandal Resistant: The solid metal plate and flush button design prevent tampering, picking, or physical breakage by unauthorized personnel.
Dual Contact Options (NO/NC): Equipped with both Normally Open and Normally Closed wiring poles. This allows it to simultaneously cut power directly to a fail-safe EM lock (using NC) while sending a log signal to an access control panel (using NO).
Industrial Aesthetics: The brushed stainless steel finish matches clean commercial hardware, offering a sleek, professional look near exit thresholds.
Low Maintenance: Mechanical spring-back design requires no ongoing configuration or software updates—functioning as a simple, reliable hardware bypass.
| Feature / Specification | Standard Details |
|---|---|
| Material Composition | 304 Stainless Steel or High-Strength Aluminum Alloy (Brushed finish) |

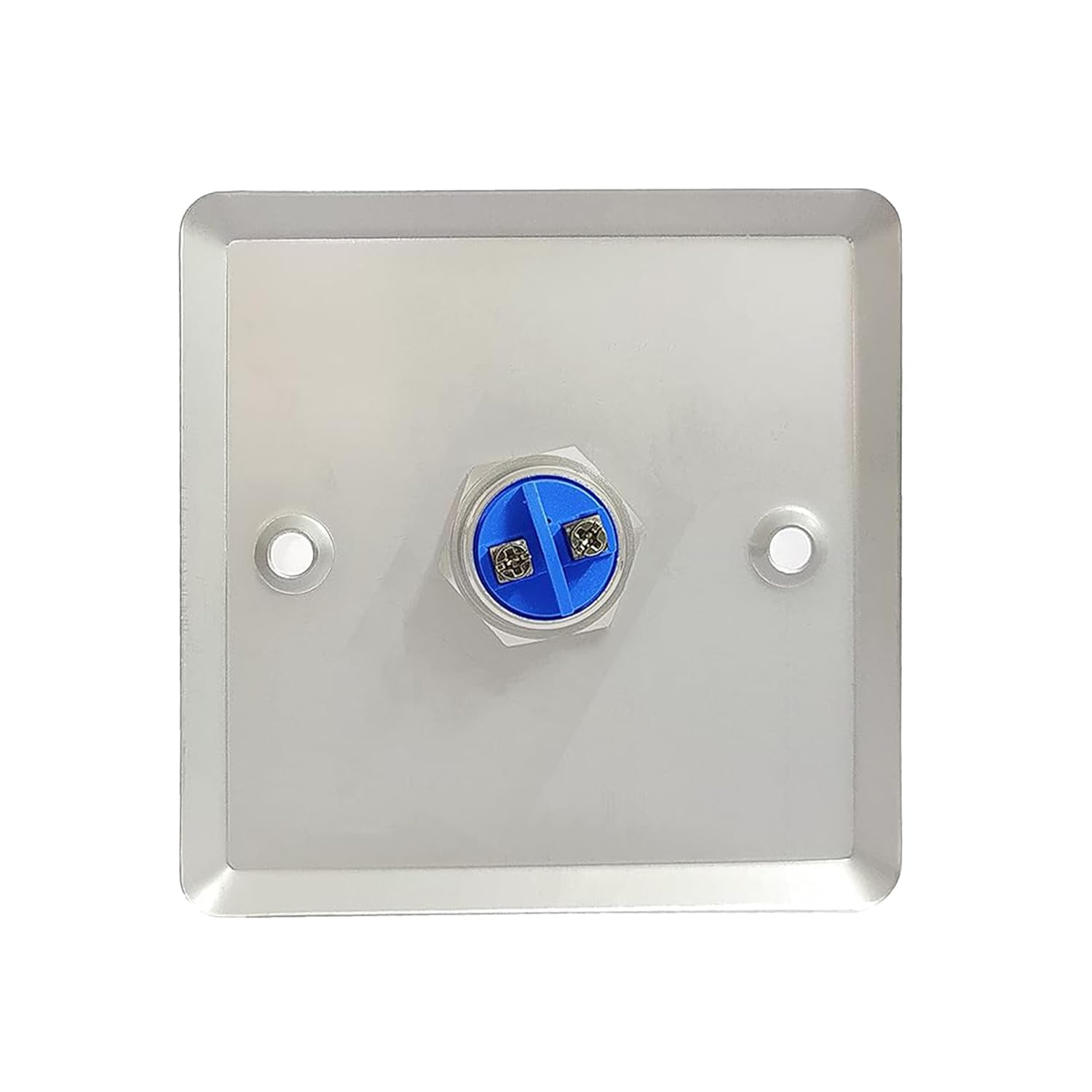

| Switch Contacts | NO (Normally Open), NC (Normally Closed), and COM (Common) |
| Current Rating | 3A @ 36V DC Maximum (Standard for access control relays) |
| Mechanical Life | Tested up to 500,000 to 1,000,000 presses |

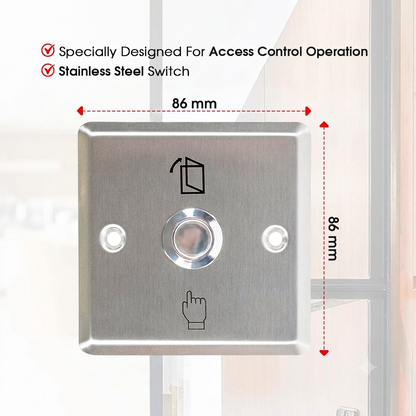

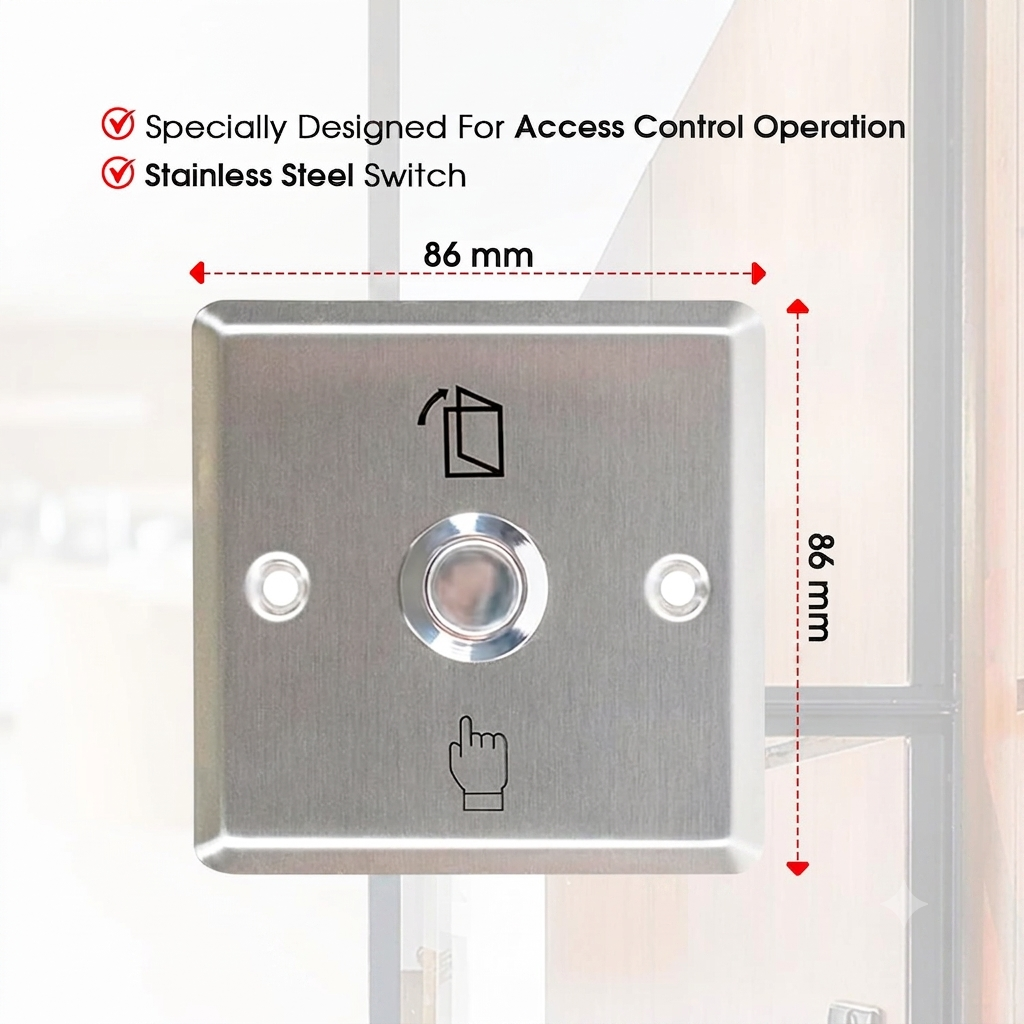

| Dimensions (Standard) | Single Gang: 86mm (L) $\times$ 86mm (W) $\times$ 20mm (D) (Square style)Narrow/Mullion: 115mm (L) $\times$ 40mm (W) $\times$ 20mm (D) |
| Operating Temperature | -10°C to +55°C (14°F to 131°F) |
| Operating Humidity | 0% to 95% (Non-condensing) |
| Lettering/Engraving | Laser-etched or filled text (Commonly reads: "EXIT" or "PRESS TO EXIT") |
