Shieldplus
SP-GLASS DOOR ELECTRIC LOCK
SP-GLASS DOOR ELECTRIC LOCK
Regular price
Rs. 2,360.00
Regular price
Sale price
Rs. 2,360.00
Unit price
/
per
Taxes included.
Couldn't load pickup availability
Non-Destructive Installation: Clamps firmly onto the glass pane using tight set-screws and protective rubber padding, preserving the physical integrity of the glass.
Auto-Locking Intelligence: Drop-bolt variations feature built-in magnetic sensors that detect exactly when the door is fully closed before firing the locking bolt, preventing structural damage from misalignments.
Sleek Aesthetic: Designed with a brushed aluminum or satin silver finish that complements contemporary, high-end corporate glass partitions.
Fail-Safe Compliance: Meets strict fire and safety codes by releasing instantly during power failures or when triggered by a central fire alarm system.

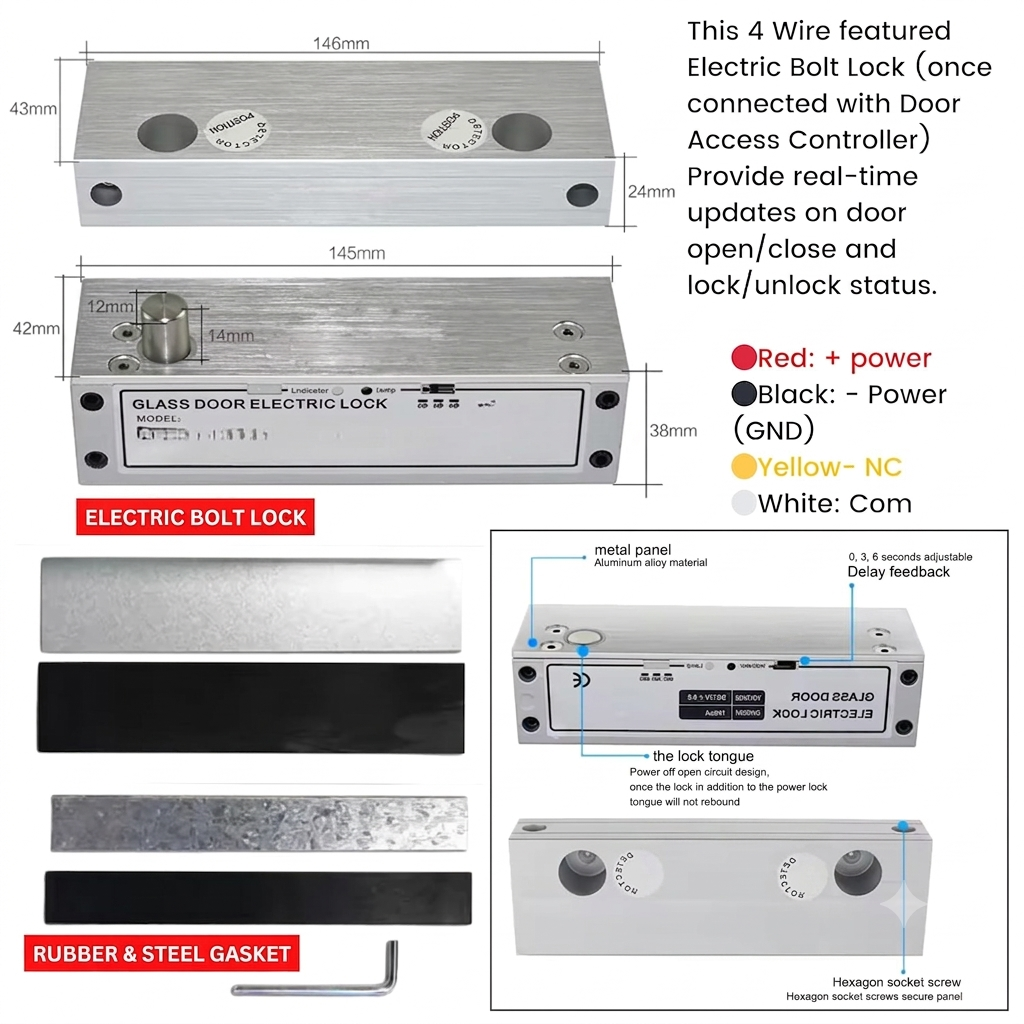

| Feature / Specification | Standard Details |
|---|---|
| Lock Type Options | Electric Drop-Bolt (with glass clamp) OR EM Lock (600 lbs with U-Bracket) |
| Glass Thickness Supported | 10mm to 14mm (Standard commercial tempered glass) |
| Input Voltage | 12V DC ($\pm10%$) |
| Current Consumption | Start Current: $\sim$900mAStandby Current: $\sim$120mA to 250mA |
| Holding Force / Strength | Up to 600 lbs (for EM layouts) / High axial shear resistance (for drop-bolts) |
| Locking Mode | Fail-Safe (Unlocks automatically when power is cut for emergency evacuation) |
| Auto-Relock Delay Timer | Adjustable: 0, 3, 6, or 9 seconds (prevents the bolt from dropping before the door settles) |
| Material Finish | Heavy-duty Anodized Aluminum / Stainless Steel faceplate |
| Protective Inserts | Included rubber/neoprene cushions to eliminate metal-on-glass friction |
