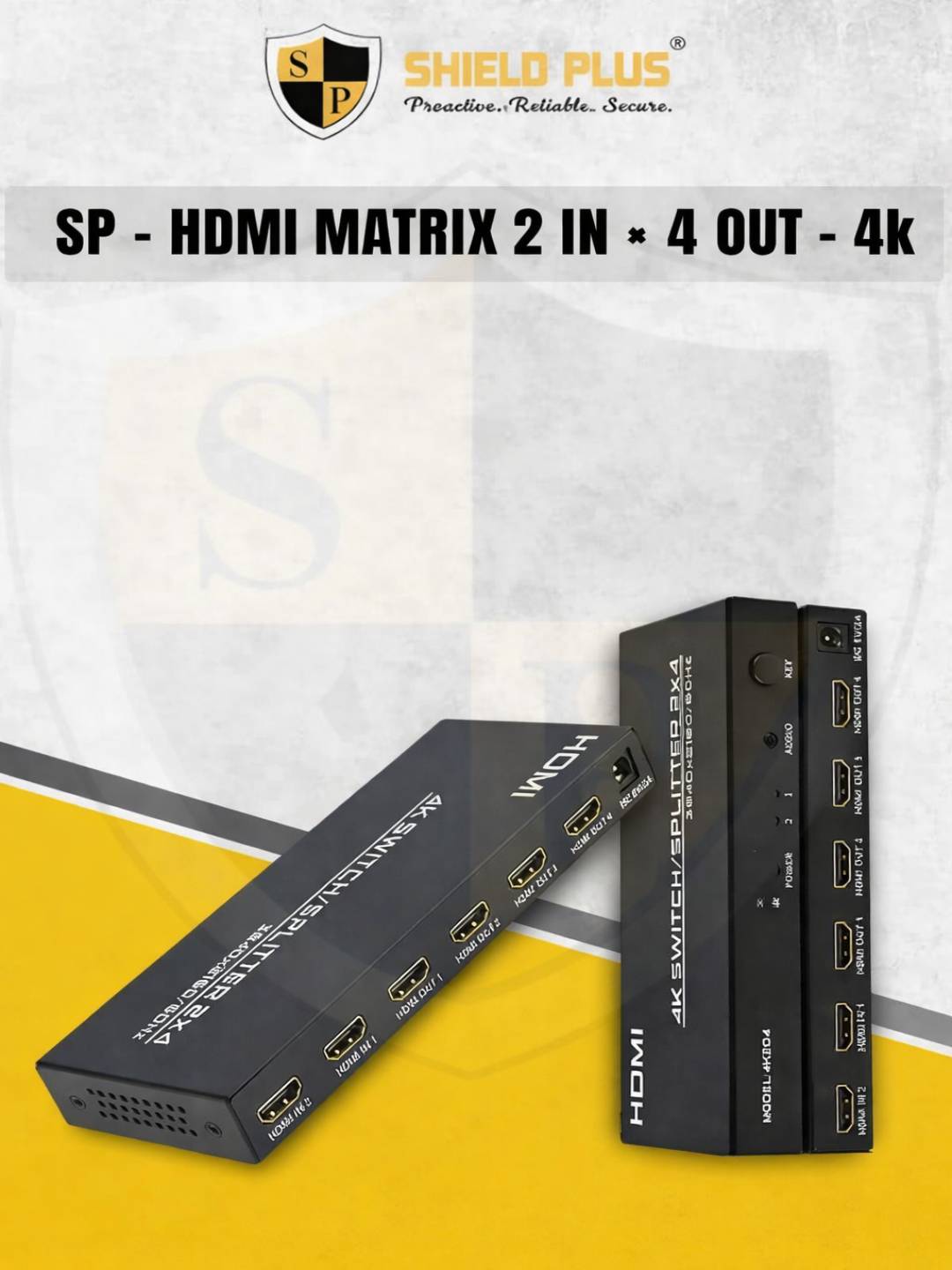

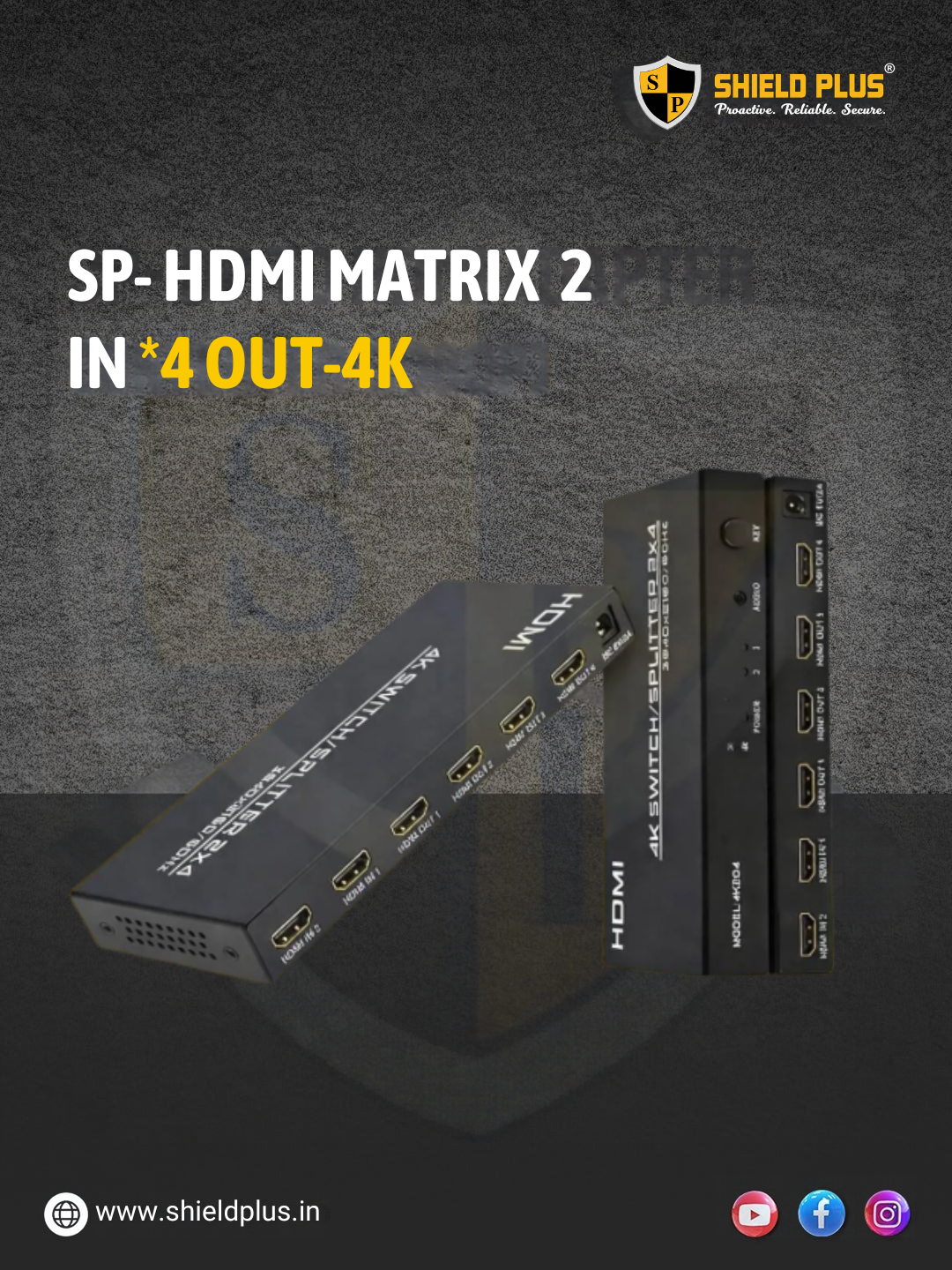

SP- HDMI MATRIX 2 IN *4 OUT-4K

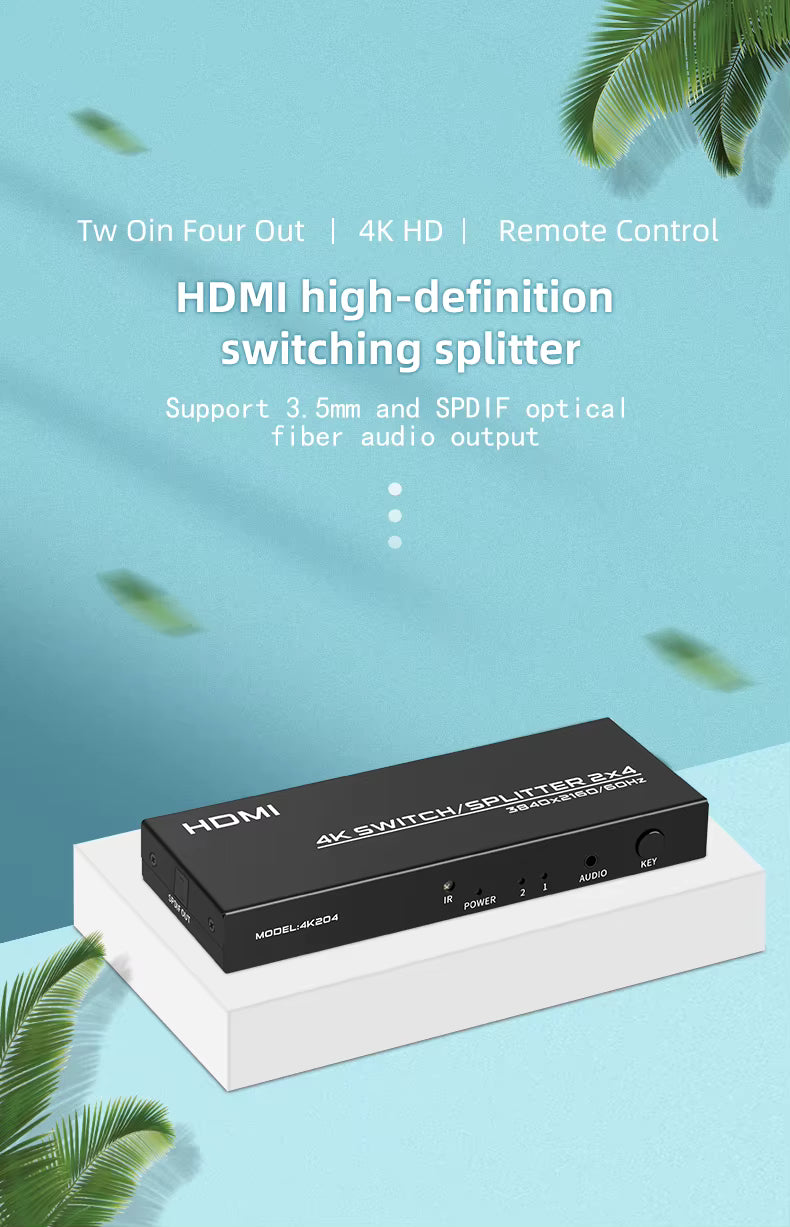

The SP HDMI Matrix 2×4 – 4K is a professional-grade HDMI switch/splitter that allows 2 HDMI input sources to be independently distributed to 4 HDMI output displays. Each output can select either of the two inputs, offering full matrix switching capability. Supporting Ultra HD 4K × 2K @ 60Hz resolution, this matrix ensures sharp video clarity and immersive audio performance.
| Specification | Details |
|---|---|
| Input Ports | 2 × HDMI (Type-A, 19-pin) |
| Output Ports | 4 × HDMI (Type-A, 19-pin) |
| Additional Ports | 1 × 3.5mm Stereo Audio Out, 1 × IR Receiver, 1 × DC 5V/2A Power Input |
| Video Resolution Support | 4K × 2K @ 60Hz (3840×2160), 1080p @ 60Hz, 720p, 480p compatible |
| Bandwidth | 18 Gbps |
| HDCP Support | HDCP 1.4 / 2.2 compliant |
| Audio Support | LPCM, Dolby Digital, DTS, DTS-HD, Dolby TrueHD |

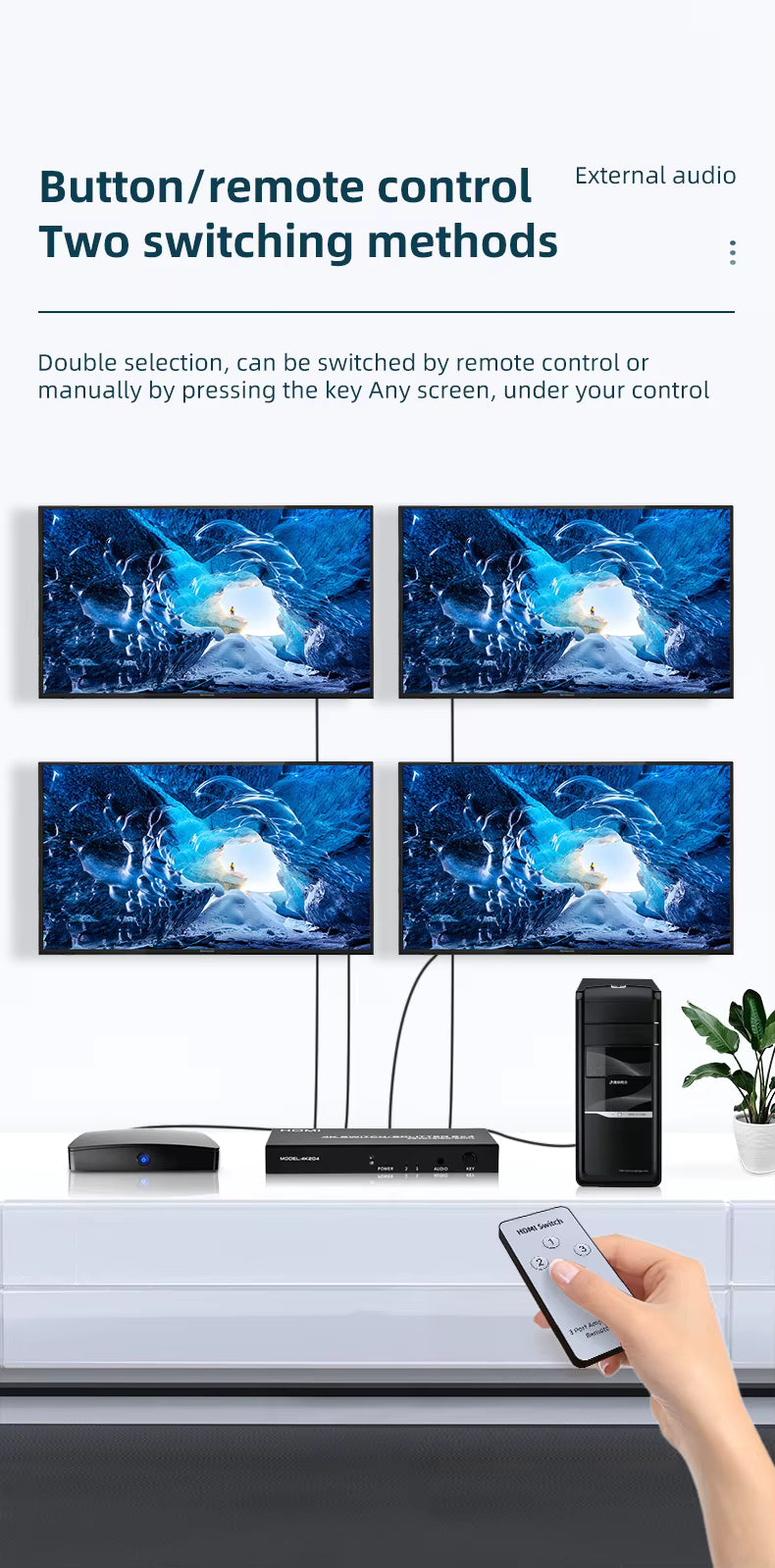

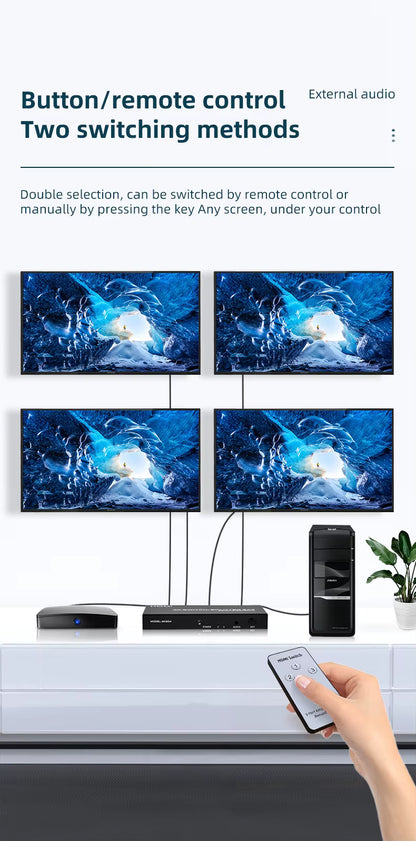

| Control Options | IR remote control, Front-panel buttons |

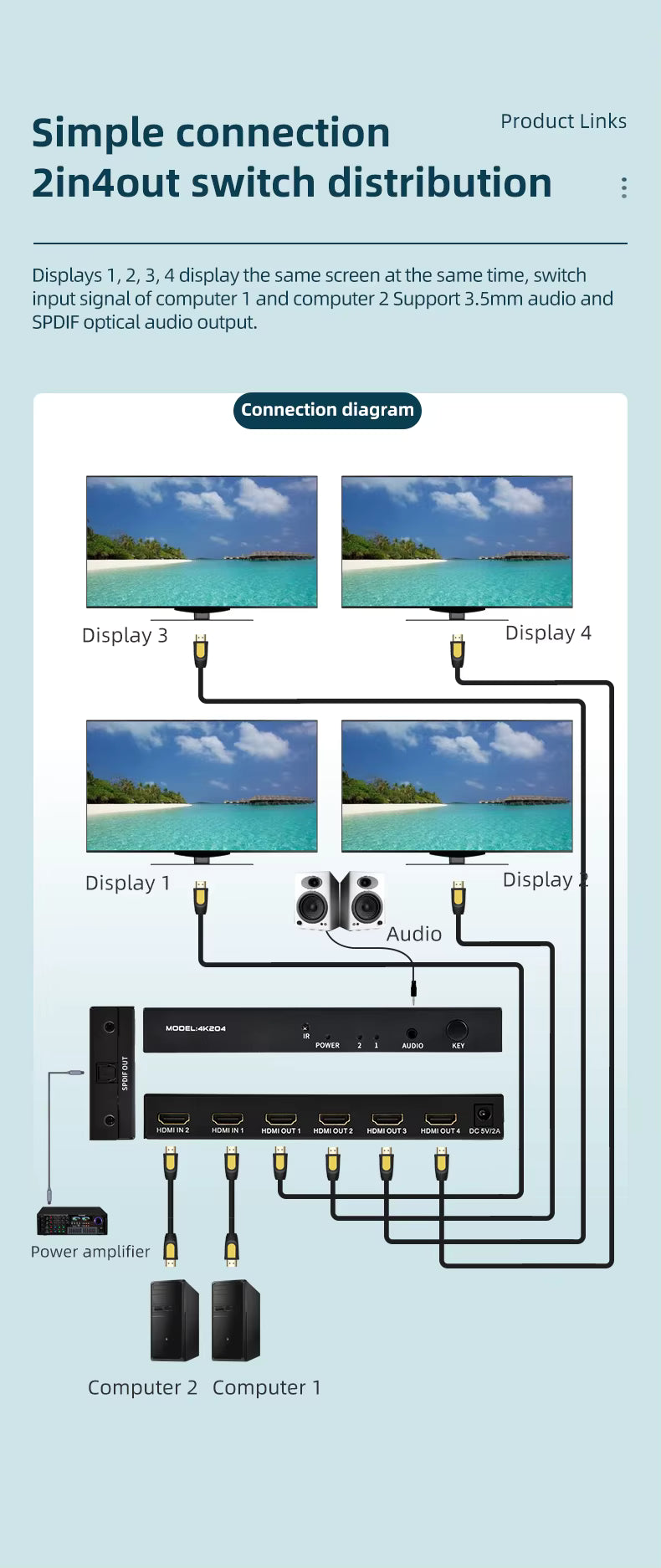

| Matrix Function | Any output can independently select Input 1 or Input 2 |
| Power Supply | DC 5V/2A |
| Material | High-quality metal casing for durability & heat dissipation |
| Applications | Home theater, digital signage, video conferencing, control centers, multimedia classrooms |
Key Benefits
- High-resolution support: 4K × 2K @ 60Hz for ultra-clear visuals
- Flexible matrix function: Each output independently selects any input
- Multiple audio formats: Supports LPCM, Dolby Digital, DTS, DTS-HD, Dolby TrueHD
- Easy control: Front-panel buttons and IR remote for convenience
- Durable design: Metal casing ensures heat dissipation and long-term reliability
- Wide application: Perfect for home theaters, digital signage, classrooms, and control rooms
