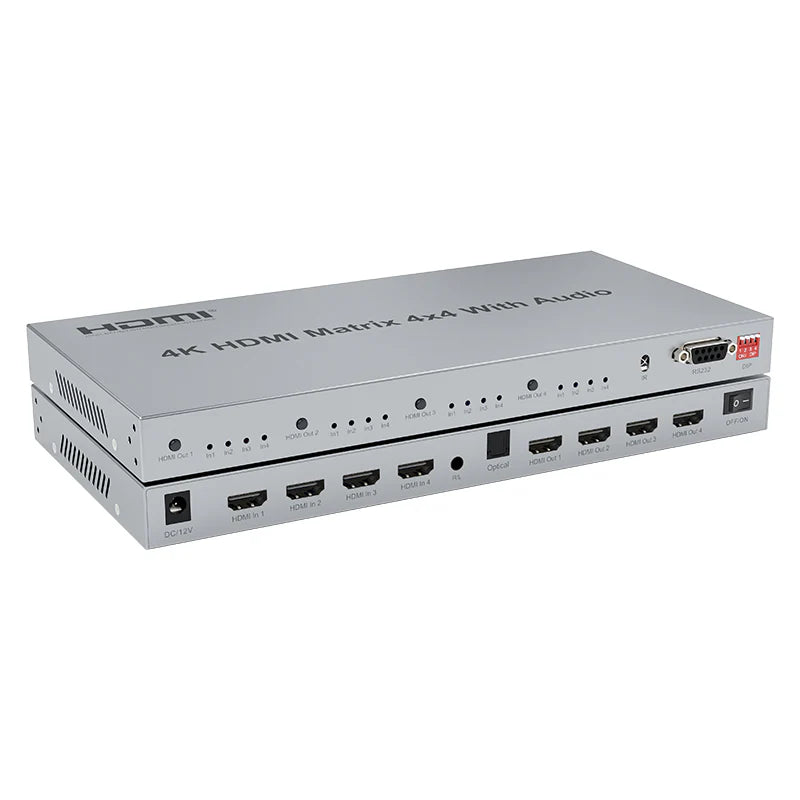

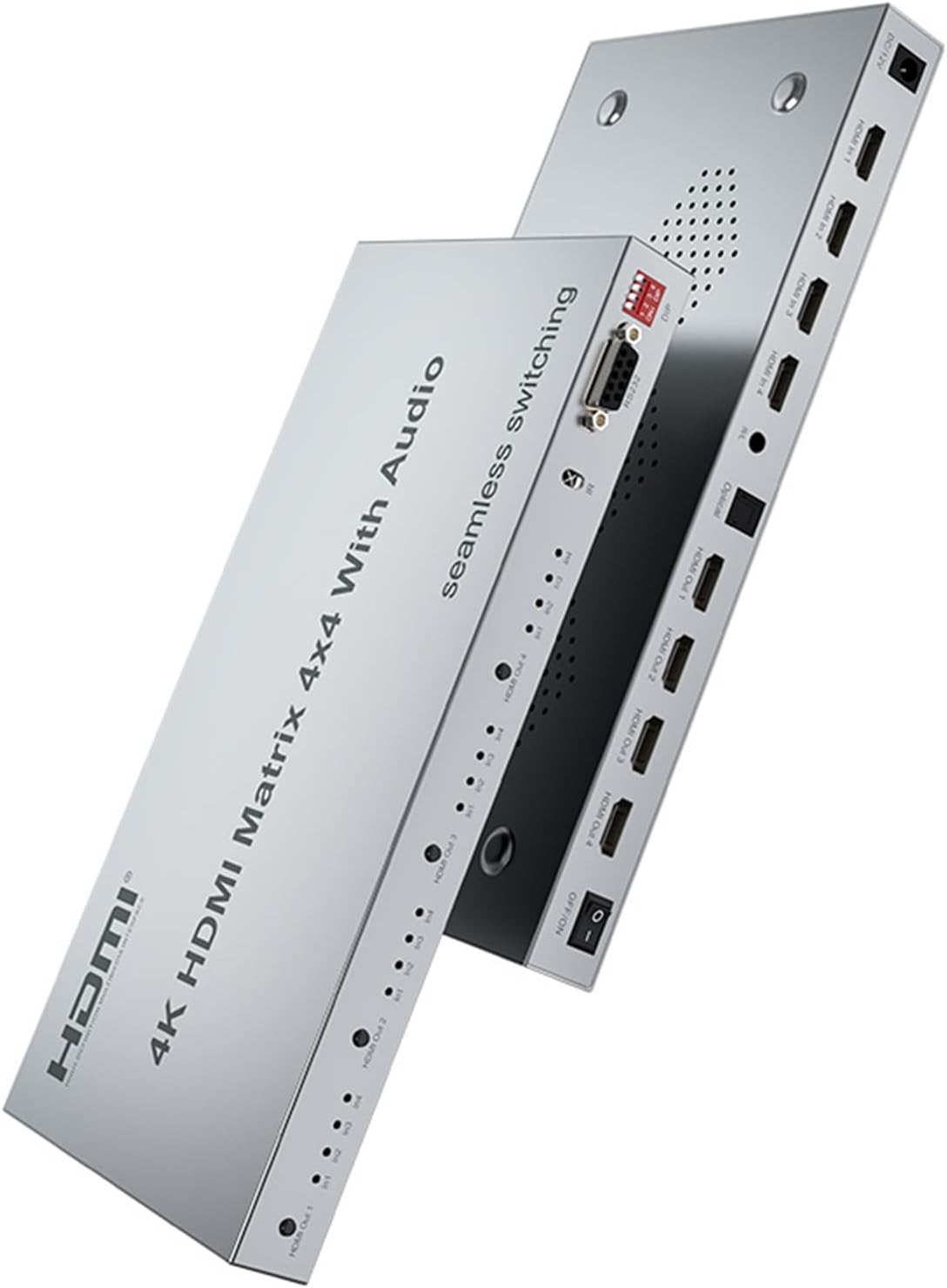

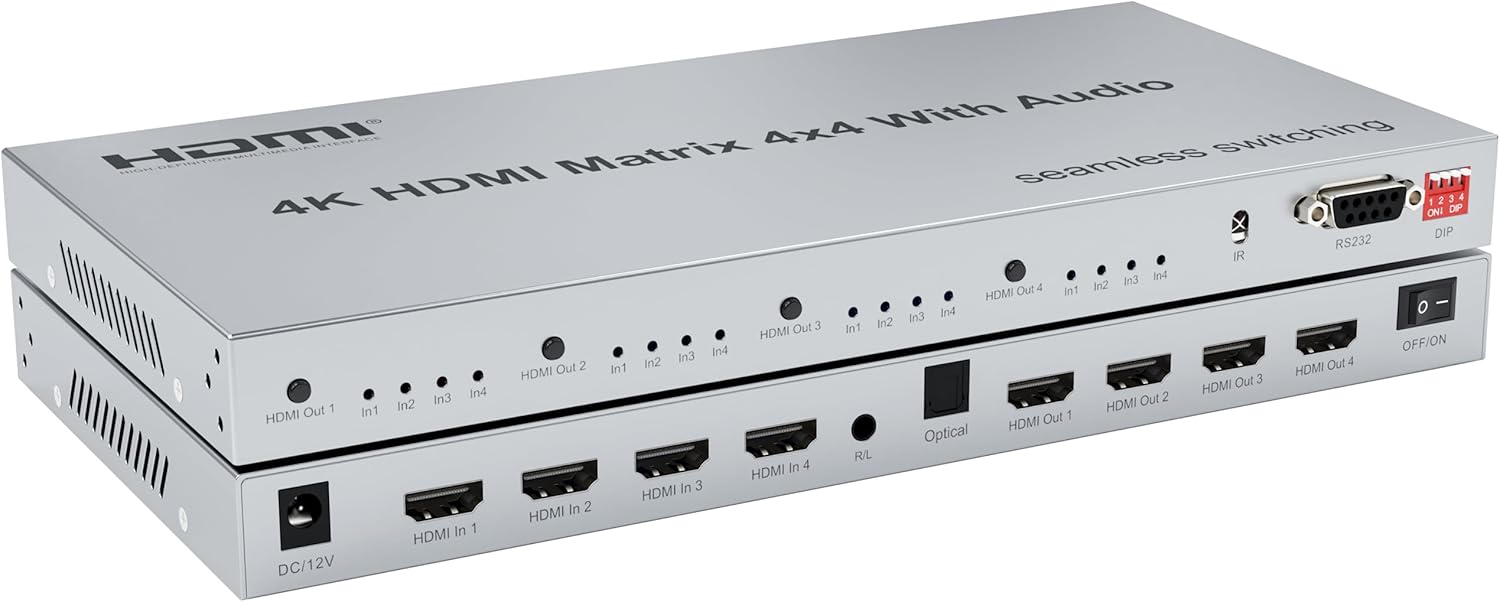

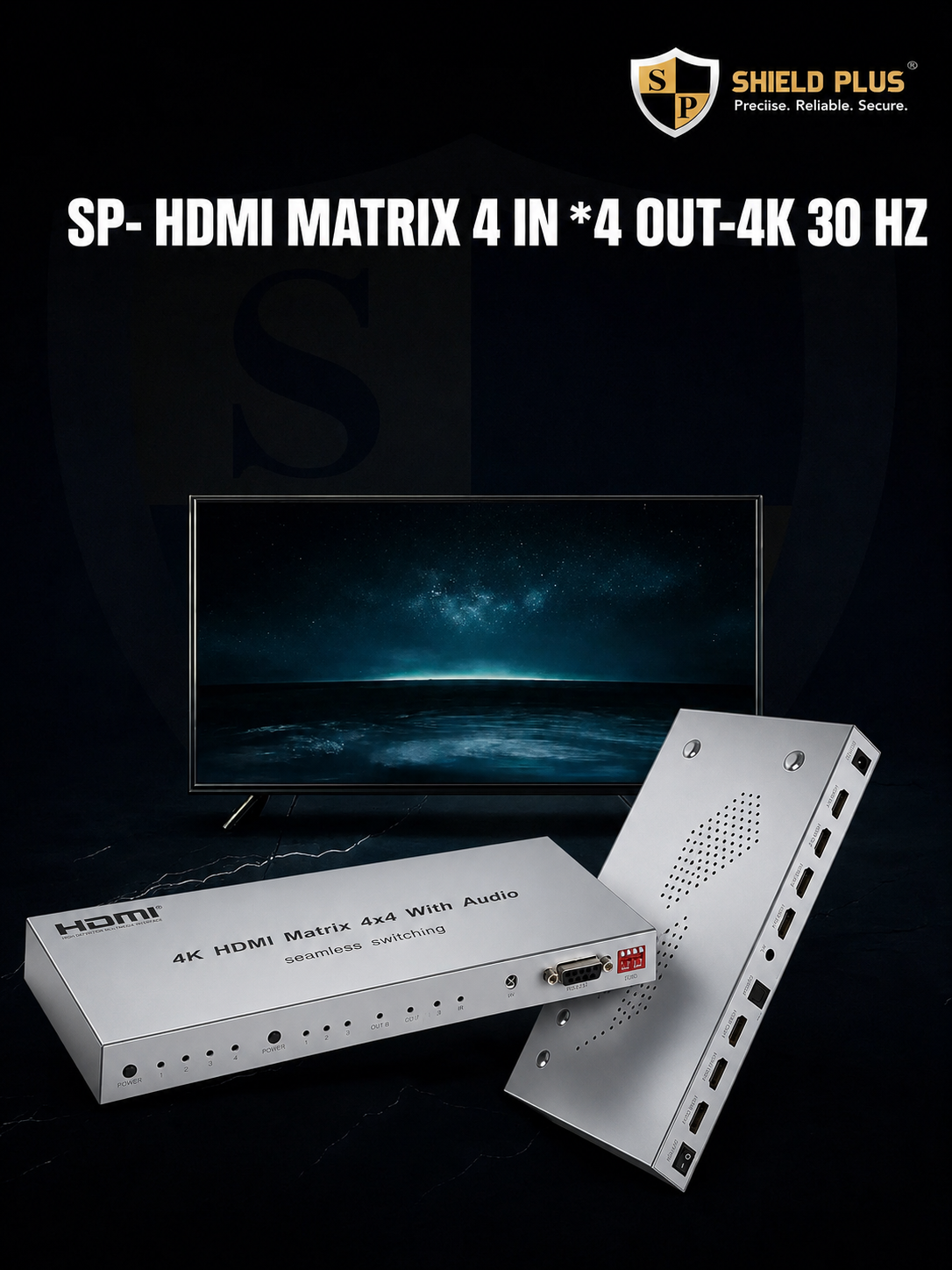

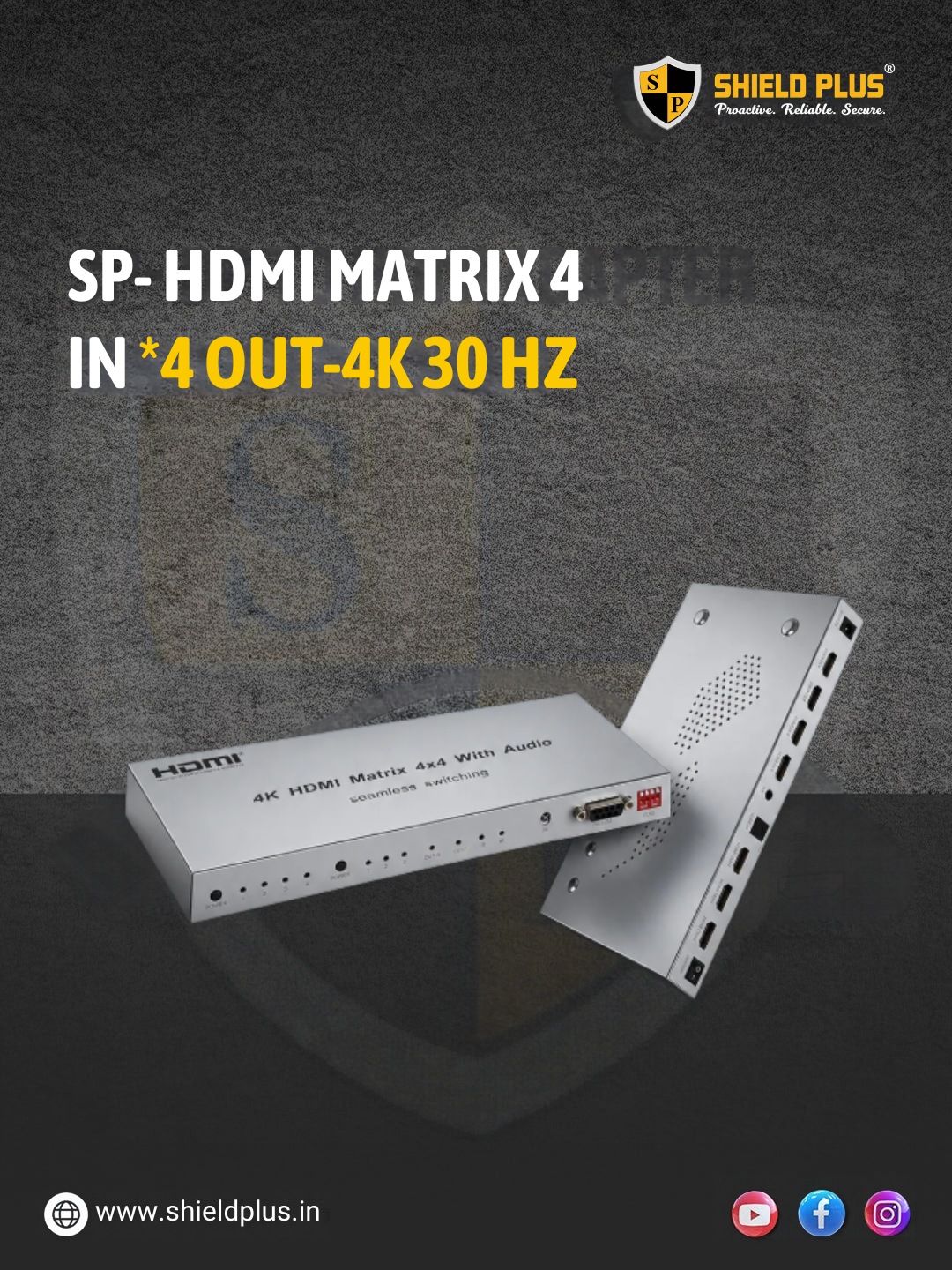

SP- HDMI MATRIX 4 IN *4 OUT-4K 30 HZ
SP- HDMI MATRIX 4 IN *4 OUT-4K 30 HZ
Regular price
Rs. 8,850.00
Regular price
Sale price
Rs. 8,850.00
Unit price
/
per
Taxes included.
Couldn't load pickup availability

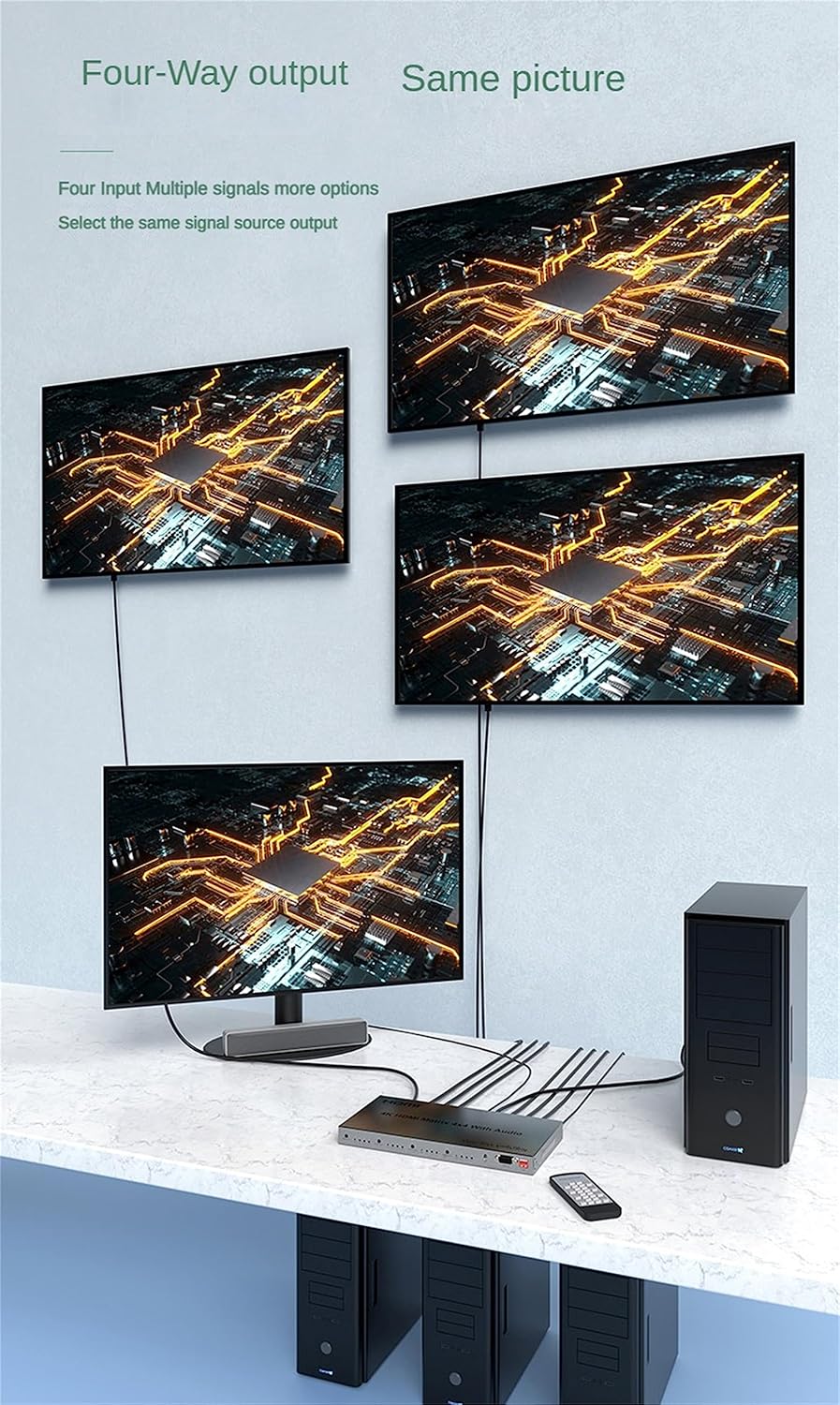

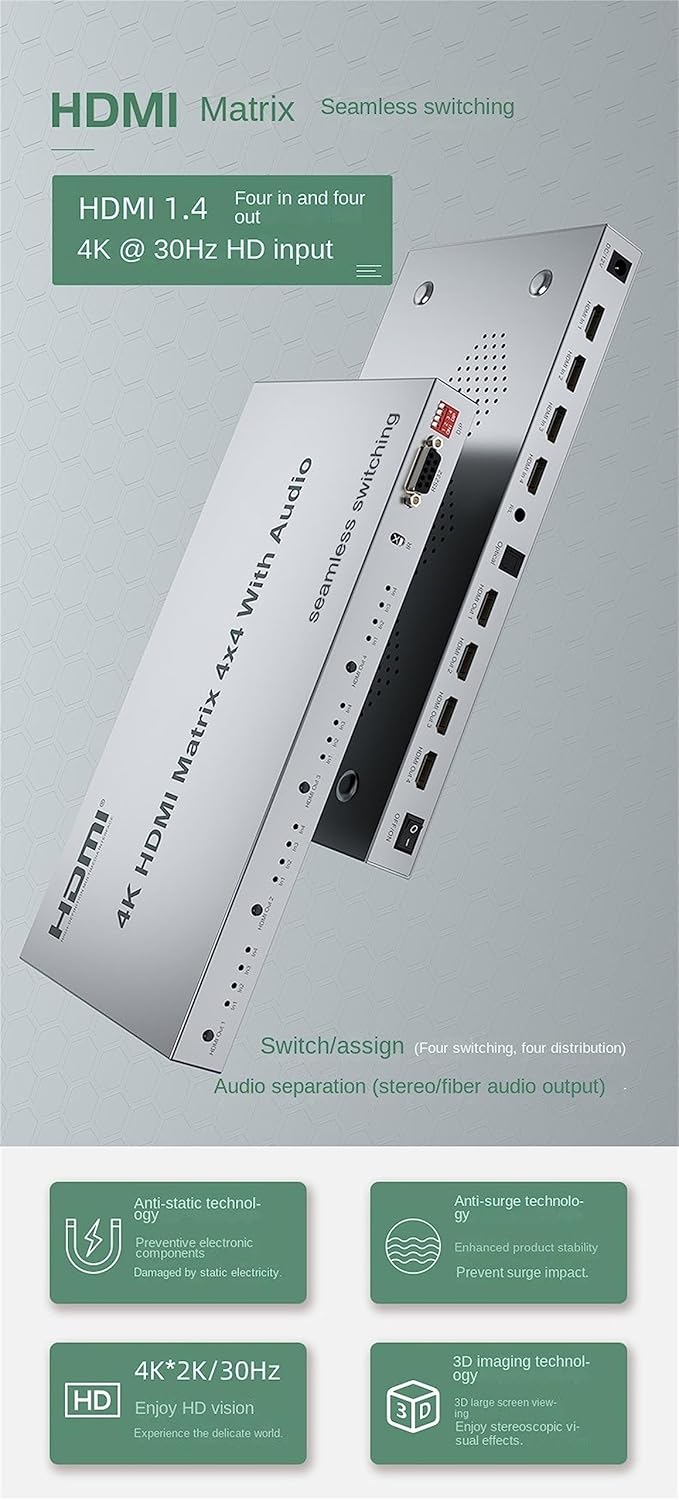

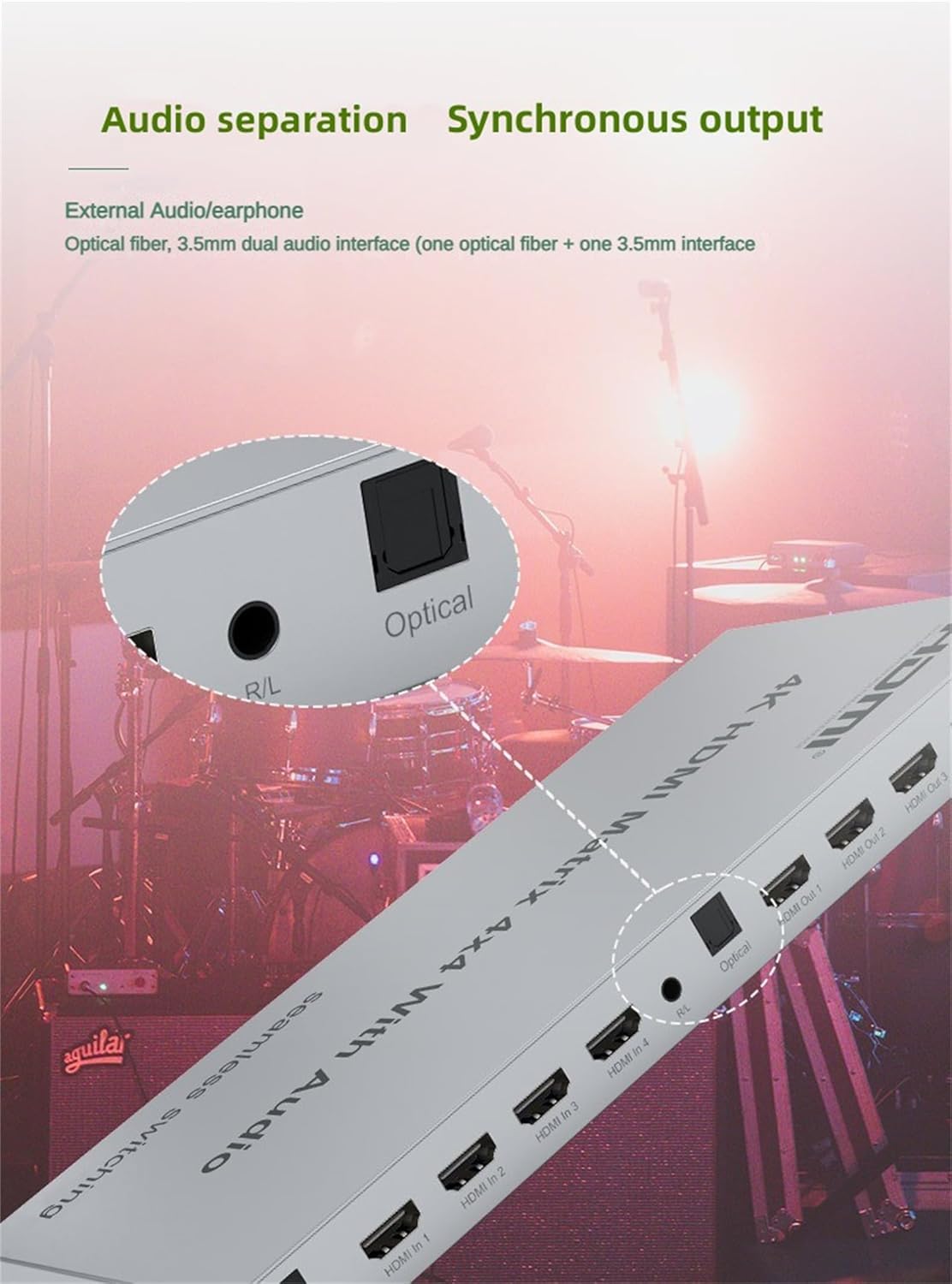

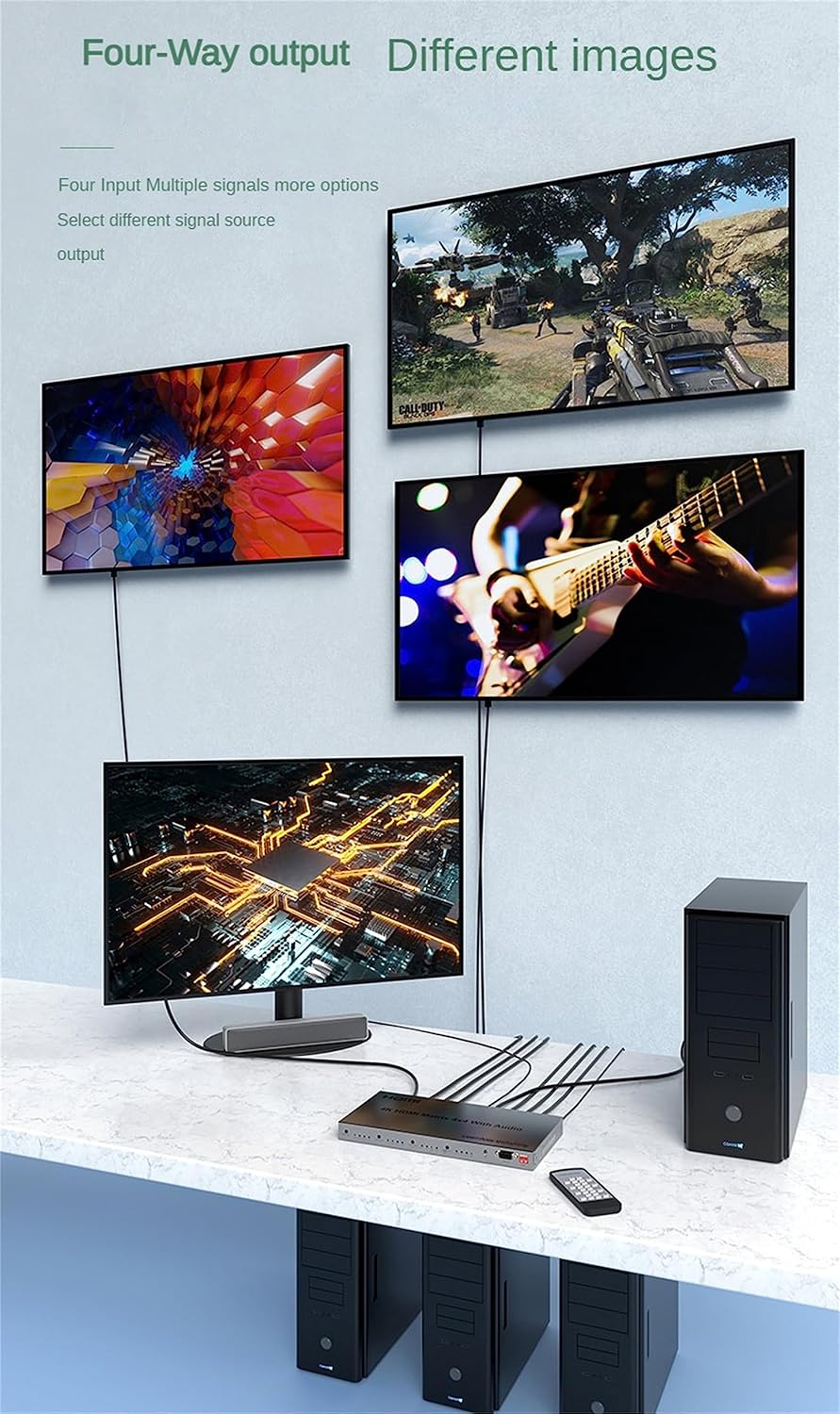

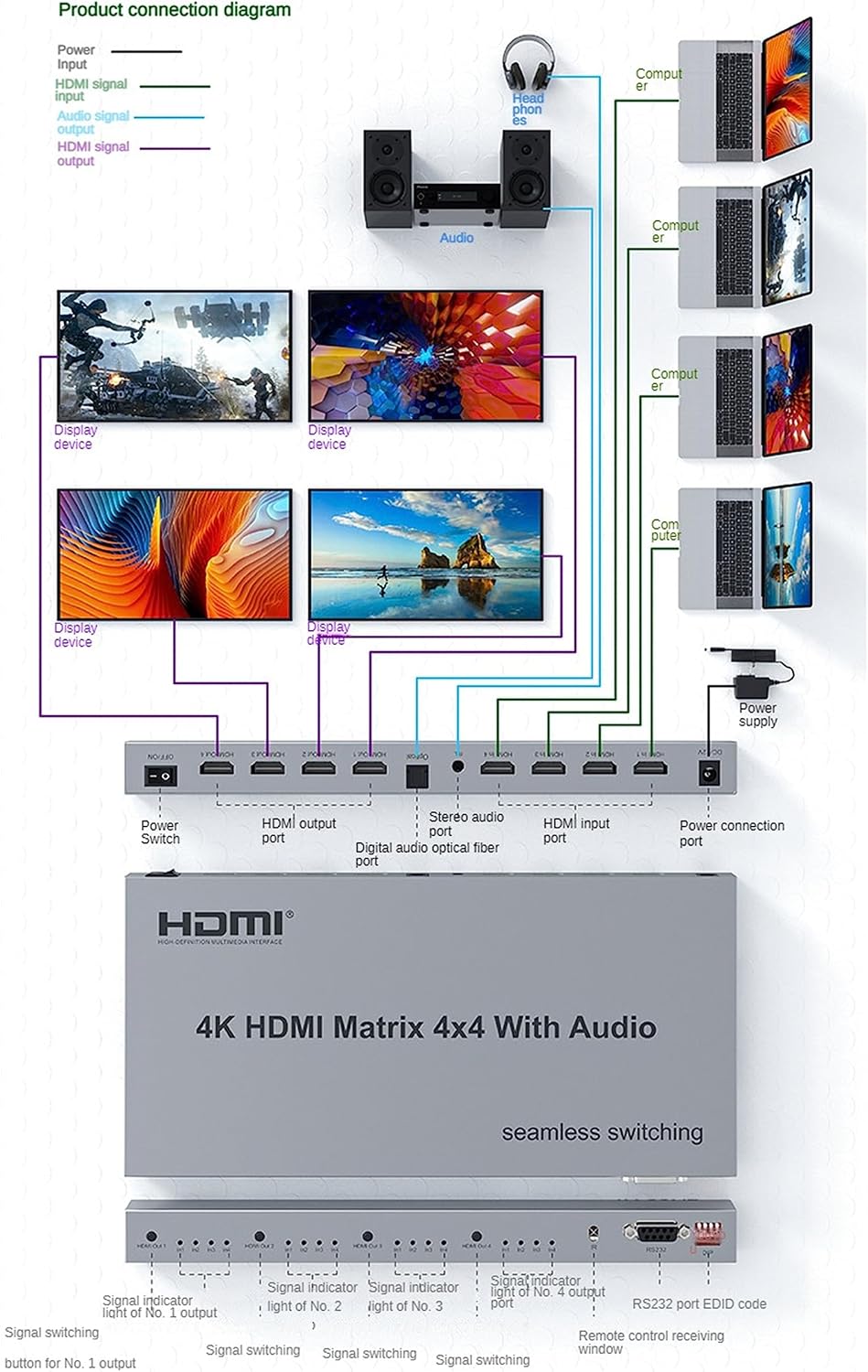

The SP- HDMI Matrix 4x4 is a high-performance professional switcher designed to manage up to four HDMI input sources and distribute them to any of the four HDMI displays. It supports seamless switching, allowing you to transition between video sources without delay or screen flickering.This device is perfect for home theaters, command centers, and conference rooms. It features integrated Audio Separation, allowing you to extract audio from HDMI sources to external speakers via Optical or 3.5mm (R/L) stereo ports. Built with Anti-static and Anti-surge technology, the matrix ensures long-term stability by protecting internal components from electrical damage.
Key Specifications
| Specification | Details |
|---|---|
| HDMI Version | HDMI 1.4 |
| Matrix Configuration | 4 HDMI Inputs × 4 HDMI Outputs |
| Maximum Resolution | 4K at 30Hz |
| Supported Resolution | Up to 3840 × 2160 |
| Color Depth | 8-bit / 10-bit / 12-bit |
| 3D Support | Yes |
| Audio Output | Stereo and Optical |
| Supported Audio Formats | DTS-HD, Dolby TrueHD, LPCM 7.1, DTS, Dolby AC-3, DSD |
| Maximum Data Rate | 3 × 3.4Gbps |
| Input Cable Distance | Up to 15m at 4K/30Hz using AWG26 HDMI cable |
| Output Cable Distance | Up to 15m at 4K/30Hz using AWG26 HDMI cable |
| Input Ports | 4 × HDMI |
| Output Ports | 4 × HDMI |
| Maximum Working Current | 0.6A |
| Power Input | AC 100V–240V, 50/60Hz |
| Power Output | DC 12V / 1A |
| Operating Temperature | -15°C to +45°C |
| Operating Humidity | 5%–90% RH, non-condensing |
| Dimensions | 275 × 135 × 25mm |
| Weight | 720g |
