Shieldplus
SP- INDOOR CAT-6 UTP 305M CABLE -24 AWG- COPPER
SP- INDOOR CAT-6 UTP 305M CABLE -24 AWG- COPPER
Couldn't load pickup availability

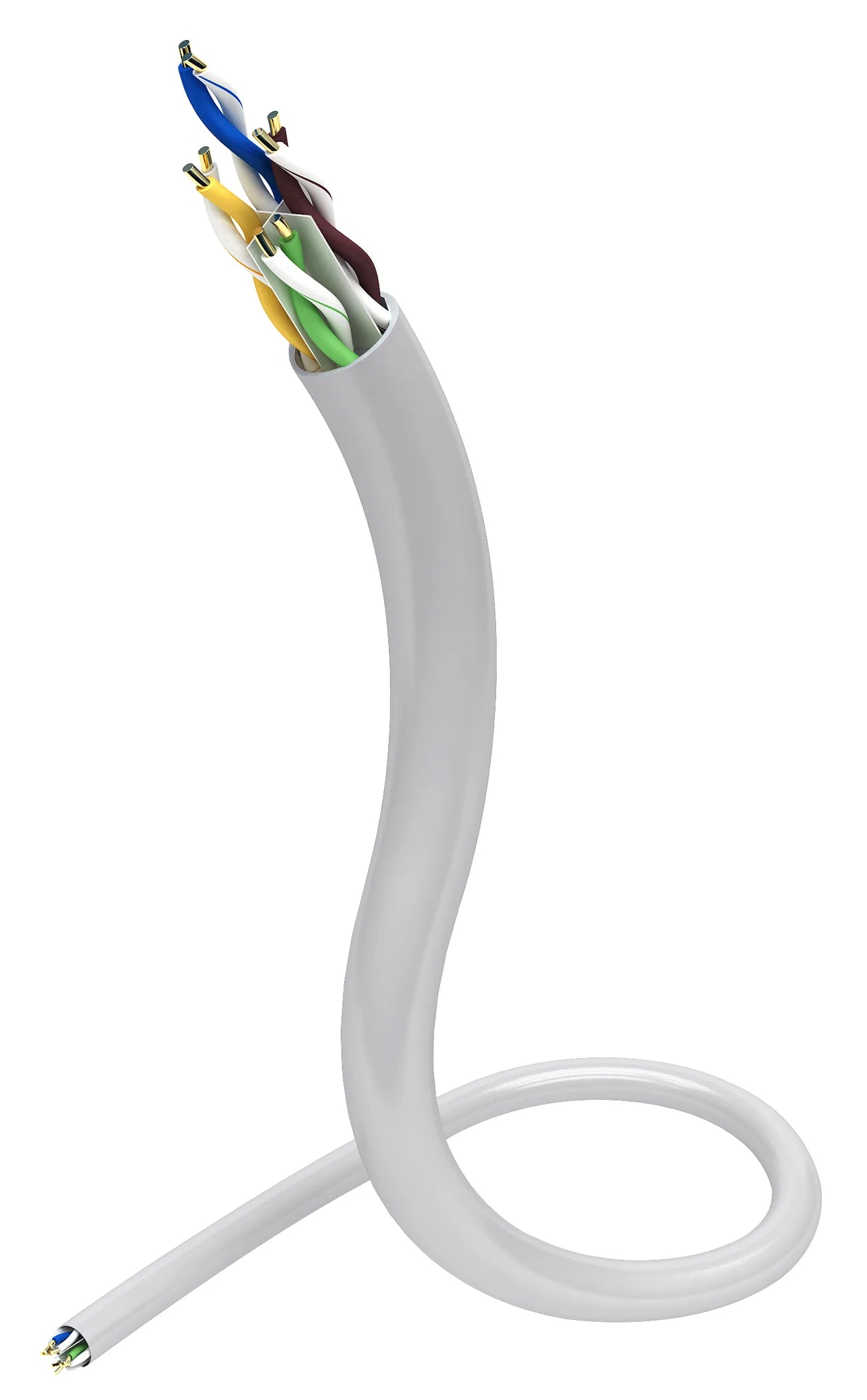

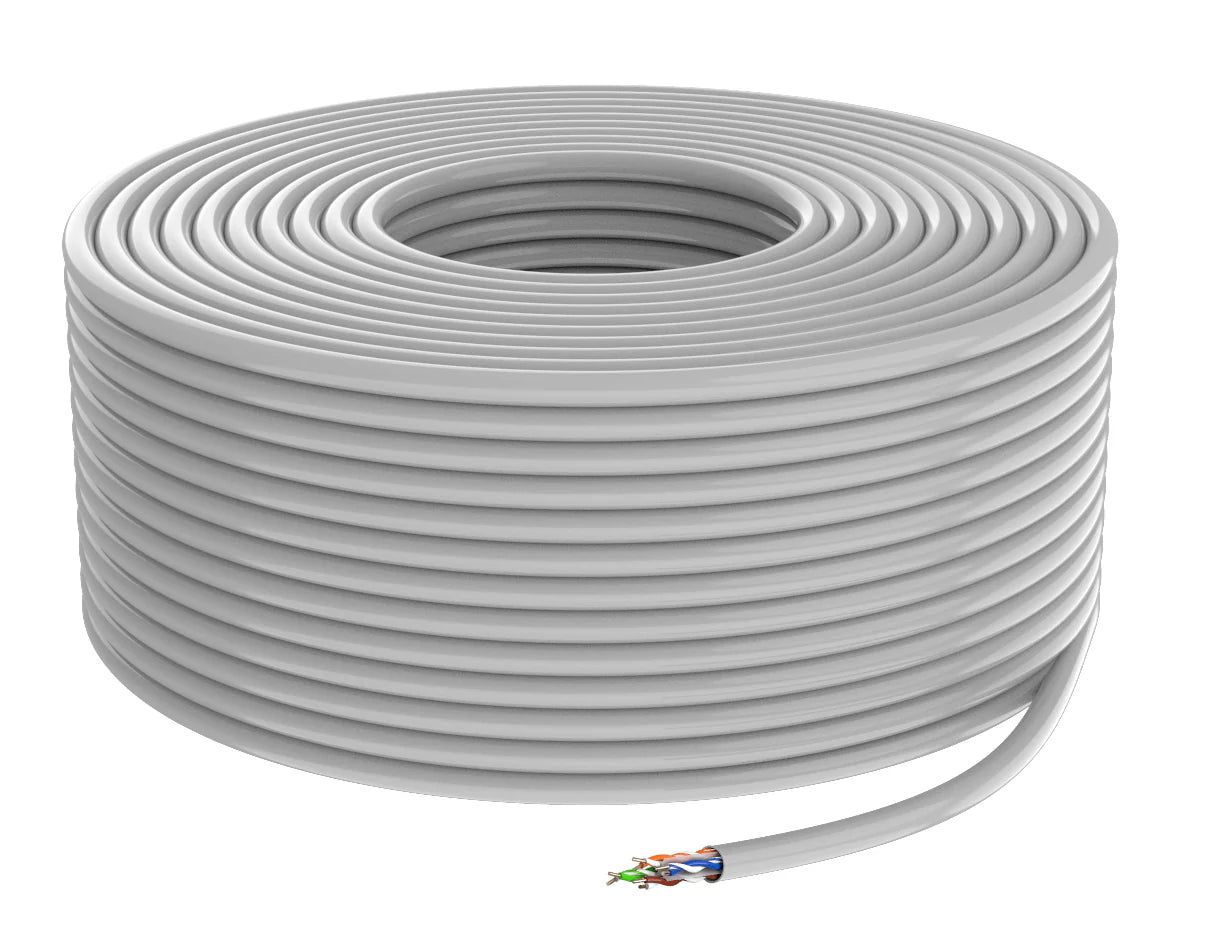

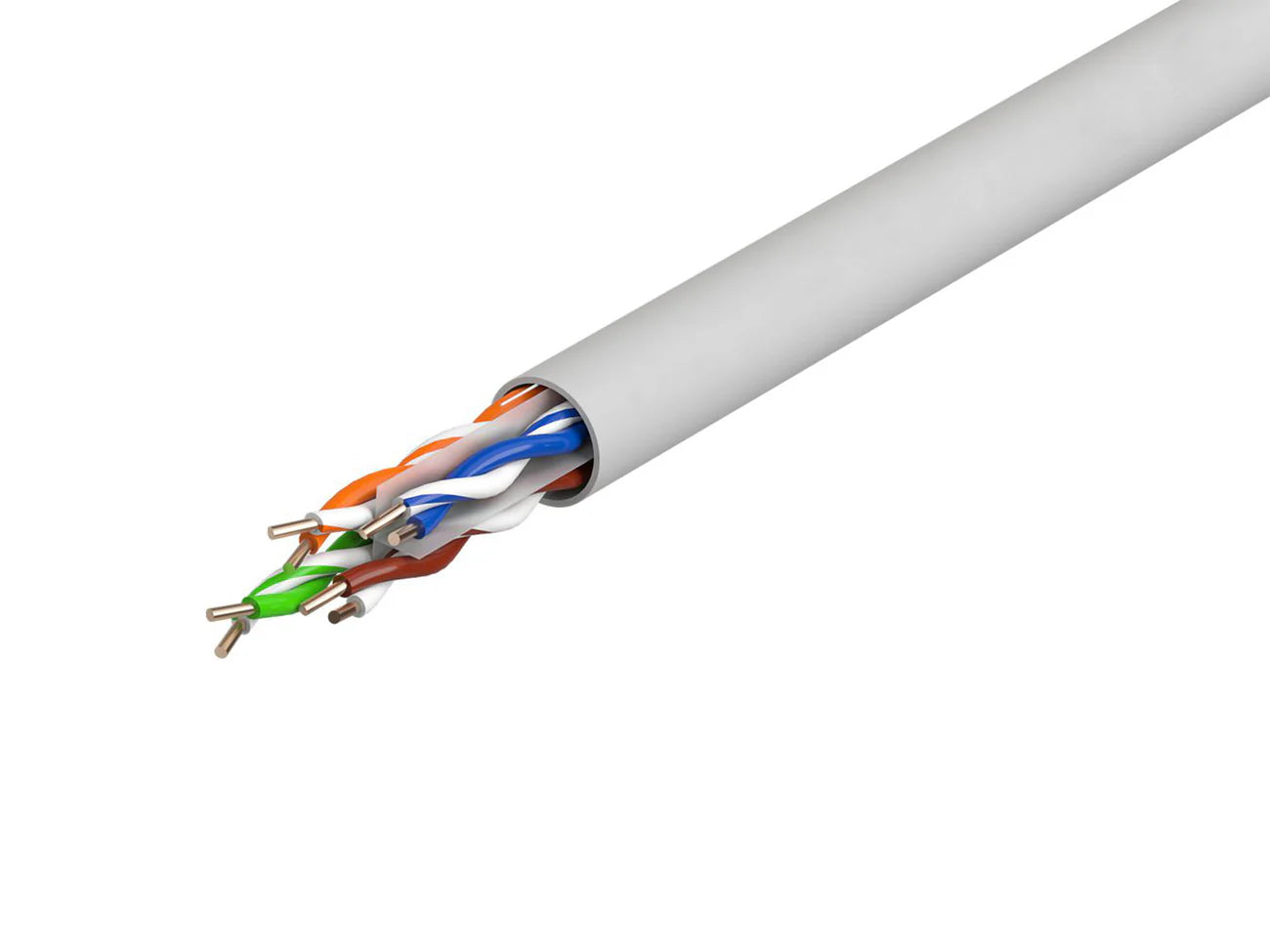

SP CAT-6 Indoor UTP Cable – 305 Meters (1000 Feet, 100% Pure Copper, 24 AWG)
The SP (Shield Plus) Indoor CAT-6 UTP Cable – 305 Meters is a high-performance Ethernet cable designed for reliable and high-speed indoor networking. Manufactured using 100% pure bare copper and Skin-Foam-Skin (SFS) polyolefin insulation, this cable ensures maximum conductivity, enhanced signal quality, and minimal signal attenuation.
This CAT-6 cable is ideal for structured cabling in data centers, offices, commercial buildings, and IT infrastructure requiring stable and consistent gigabit-speed connectivity.
Key Features
- 100% Pure Bare Copper Conductor for efficient signal transmission
- Supports bandwidth up to 250 MHz
- Data rate support up to 10/100/1000 Mbps (Gigabit Ethernet)
- Skin-Foam-Skin Polyolefin insulation for reduced crosstalk and improved performance
- 24 AWG conductor size for optimal indoor performance

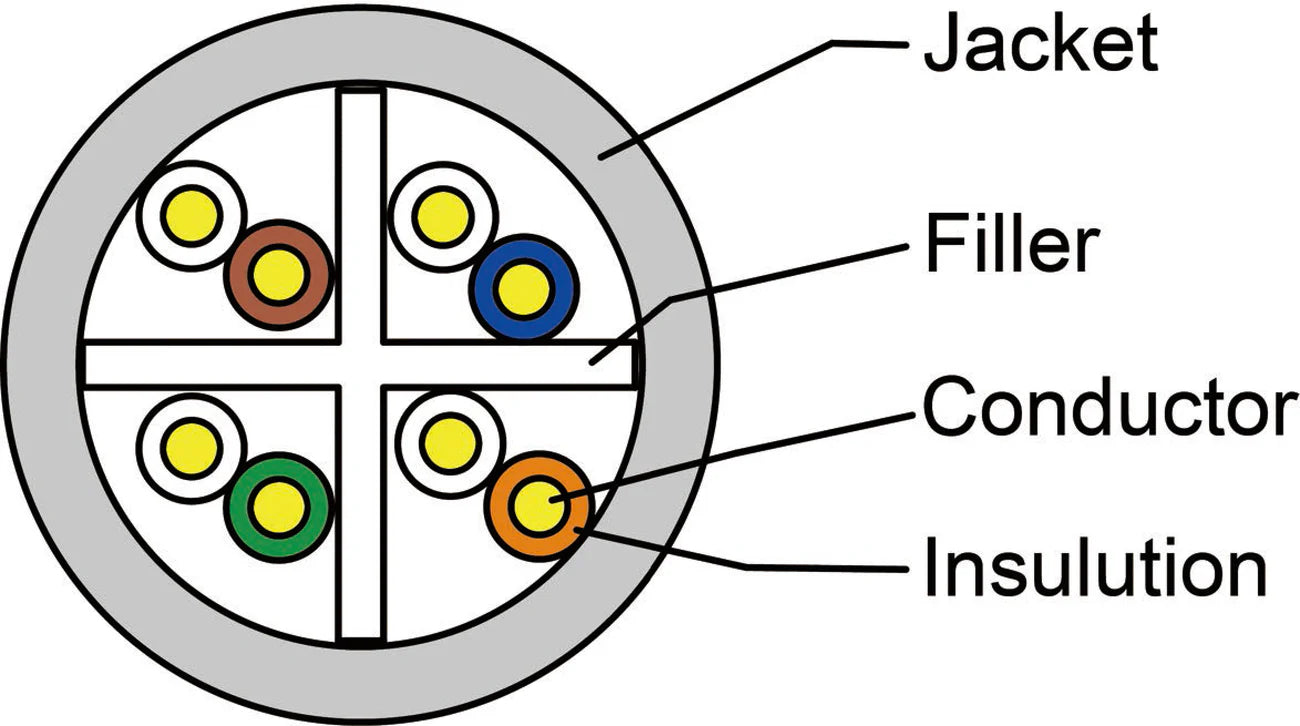

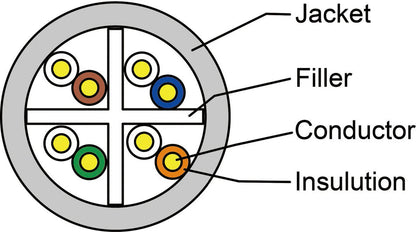

- UTP (Unshielded Twisted Pair) construction with 4 twisted pairs
- Durable indoor-grade PVC jacket
- Packaged in an Easy Pull Box for quick installation
- Complies with TIA/EIA-568-C.2, ISO/IEC 11801, and RoHS standards
Technical Specifications
| Specification | Details |
|---|---|
| Brand | SP (Shield Plus) |
| Cable Category | CAT-6 |
| Cable Type | UTP (Unshielded Twisted Pair) |
| Conductor Material | 100% Pure Bare Copper |
| Conductor Size | 24 AWG (0.51mm ± 0.005mm) |
| Number of Pairs | 4 Twisted Pairs (8 Conductors) |
| Insulation Type | Skin-Foam-Skin (SFS) Polyolefin |
| Jacket Material | PVC (Indoor Grade) |
| Cable Length | 305 Meters (1000 Feet) |
| Bandwidth Support | Up to 250 MHz |
| Data Rate | 10/100/1000 Mbps (Gigabit Ethernet) |
| Compliance Standards | TIA/EIA-568-C.2, ISO/IEC 11801, RoHS |
| Operating Temperature | -10°C to +60°C |
| Packaging | Easy Pull Box |
| Color | Grey / White (Customizable) |
Applications
Recommended for structured indoor cabling environments including data centers, offices, commercial buildings, and enterprise IT setups. It provides a reliable and long-term solution for high-speed LAN and internet connectivity.
