Shieldplus
SP- J154 NON HAND OPEN SUITABLE FOR DOOR
SP- J154 NON HAND OPEN SUITABLE FOR DOOR
Regular price
Rs. 944.00
Regular price
Sale price
Rs. 944.00
Unit price
/
per
Taxes included.
Couldn't load pickup availability

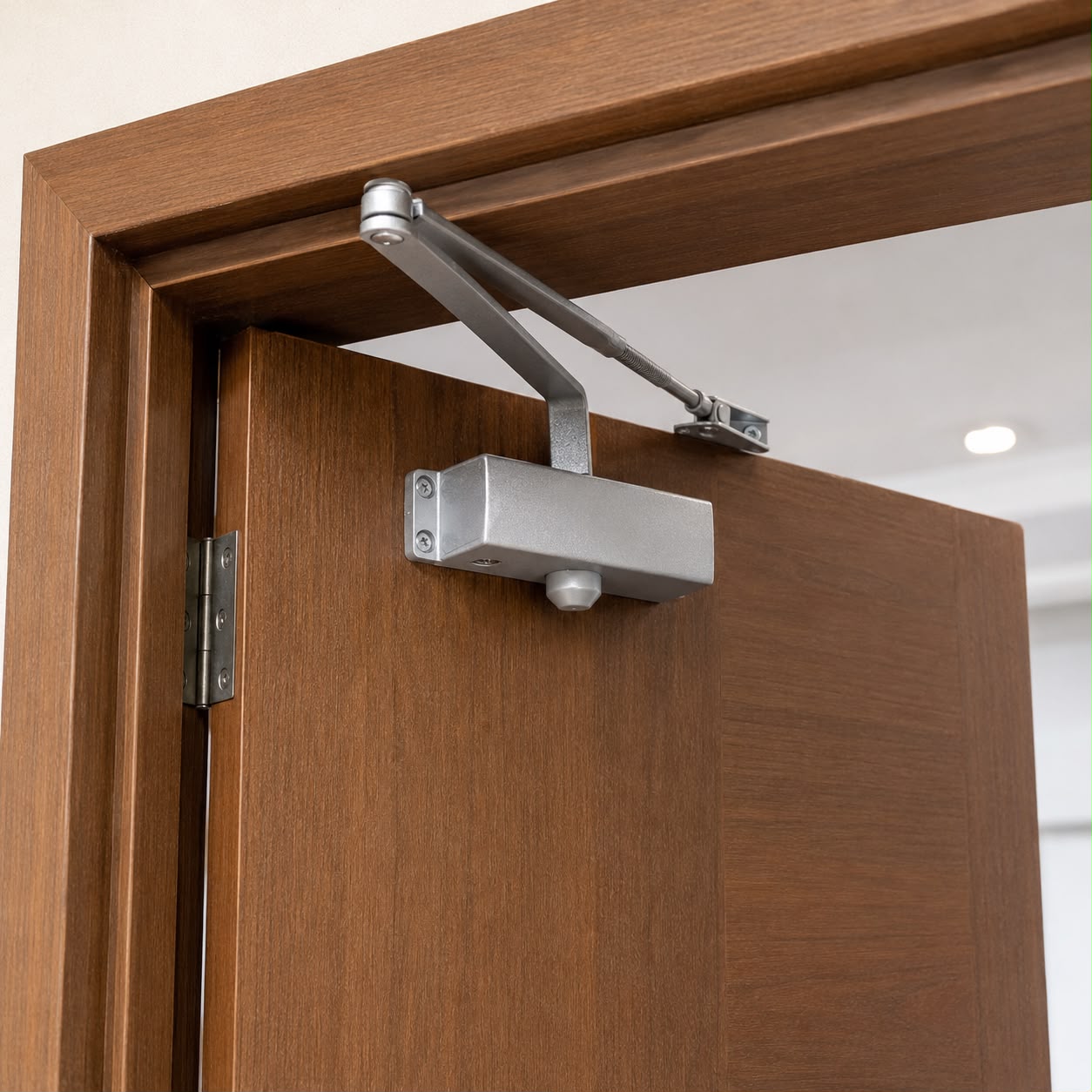

The SP-J154 features a non-handed design, meaning it can be installed on both left-handed and right-handed doors (inward or outward opening) without requiring modification or special ordering.
It utilizes a rack-and-pinion hydraulic mechanism filled with high-grade temperature-stable hydraulic fluid to ensure consistent operation across varying temperatures. Equipped with dual independent adjusting valves, it allows precise setting of both the closing speed (main swing area) and the latching speed (final closing action to ensure secure engagement with the lock striker).

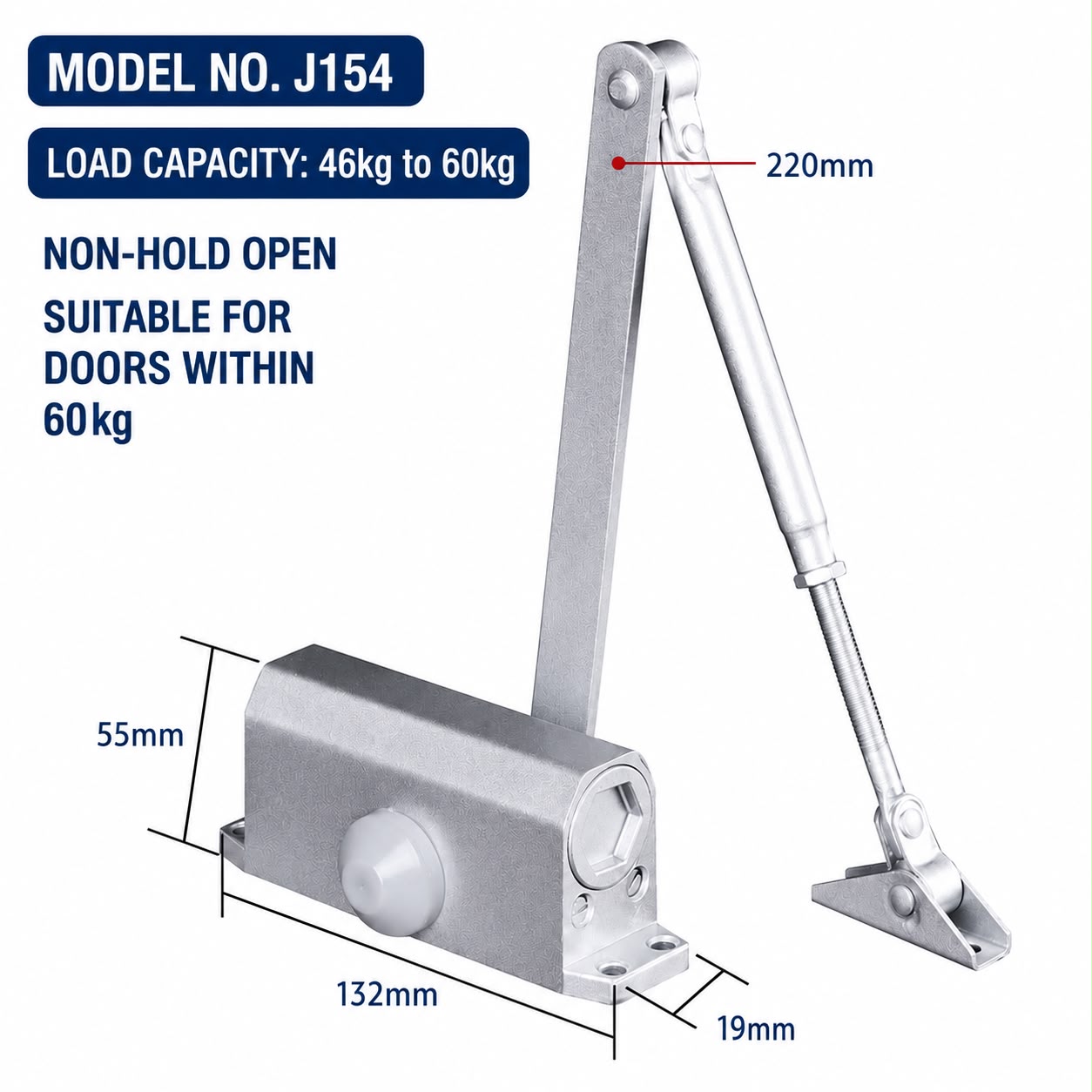

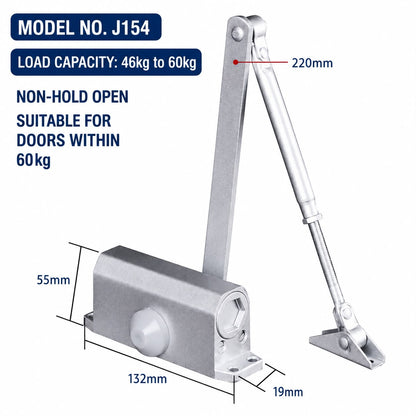

Specification Table
| Parameter | Specification Details |
|---|---|
| Model | SP-J154 |
| Product Type | Universal Non-Handed Automatic Door Closer |
| Handing / Opening Direction | Non-Handed (Suitable for Left-Hand & Right-Hand Doors) |
| Supported Door Weight | 45 kg to 65 kg (Standard Medium-Duty) |
| Max Door Width | Up to 950 mm |
| Body / Housing Material | High-strength Die-Cast Aluminum Alloy |
| Internal Mechanism | Heat-treated steel rack-and-pinion with hydraulic oil cylinder |
| Speed Adjustments | Dual Independent Valves (Closing Speed Valve & Latching Speed Valve) |
| Max Opening Angle | 180° |
| Applicable Door Types | Wooden Doors, Aluminum Frame Doors, Hollow Metal Doors, PVC Doors |
| Finish Options | Silver / Metallic Grey Coating |
