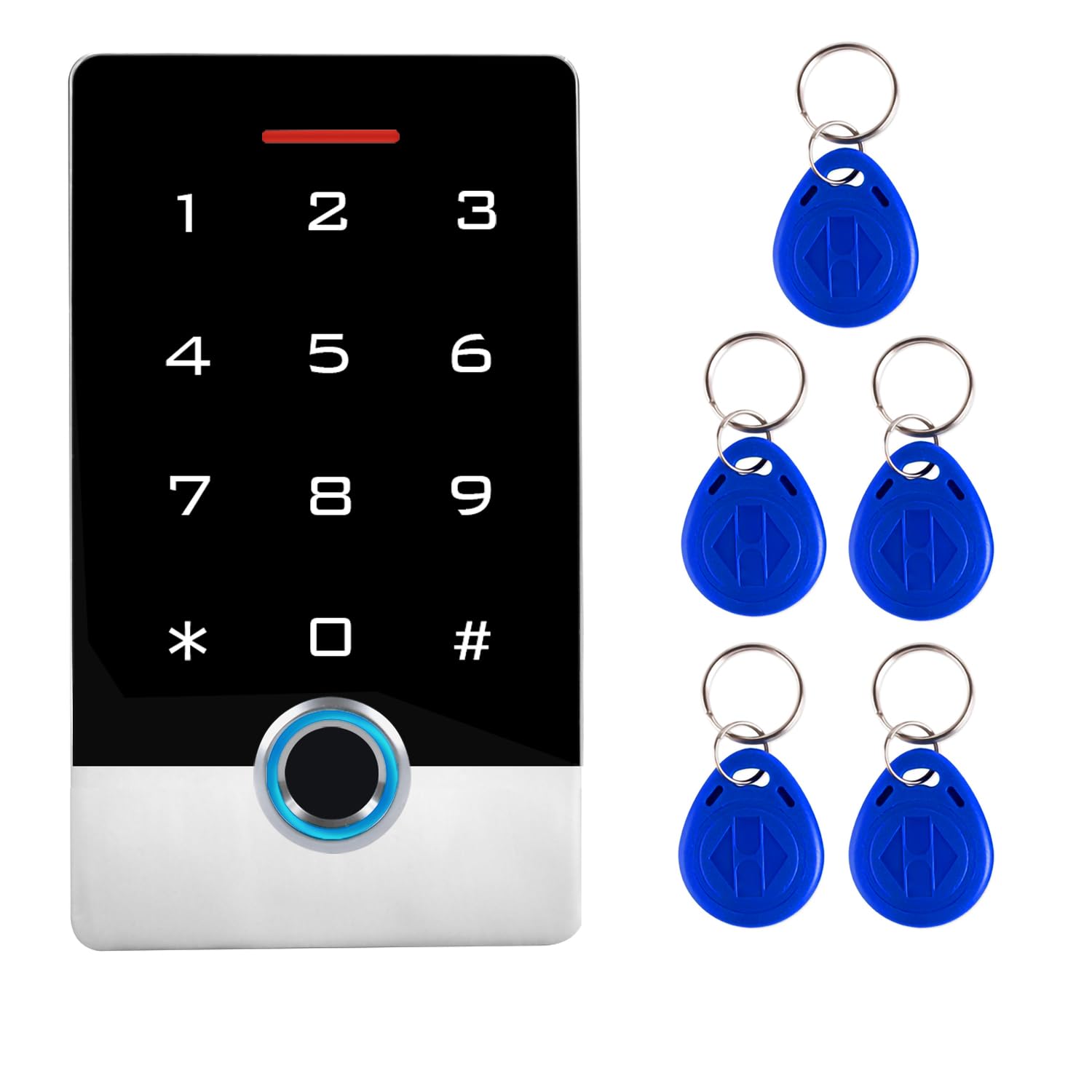

The SP-J155 is a compact, high-performance access control keypad terminal designed to manage access for authorized personnel via multiple verification methods, including RFID Cards / Key Fobs, PIN Codes, or a combination of Card + PIN.

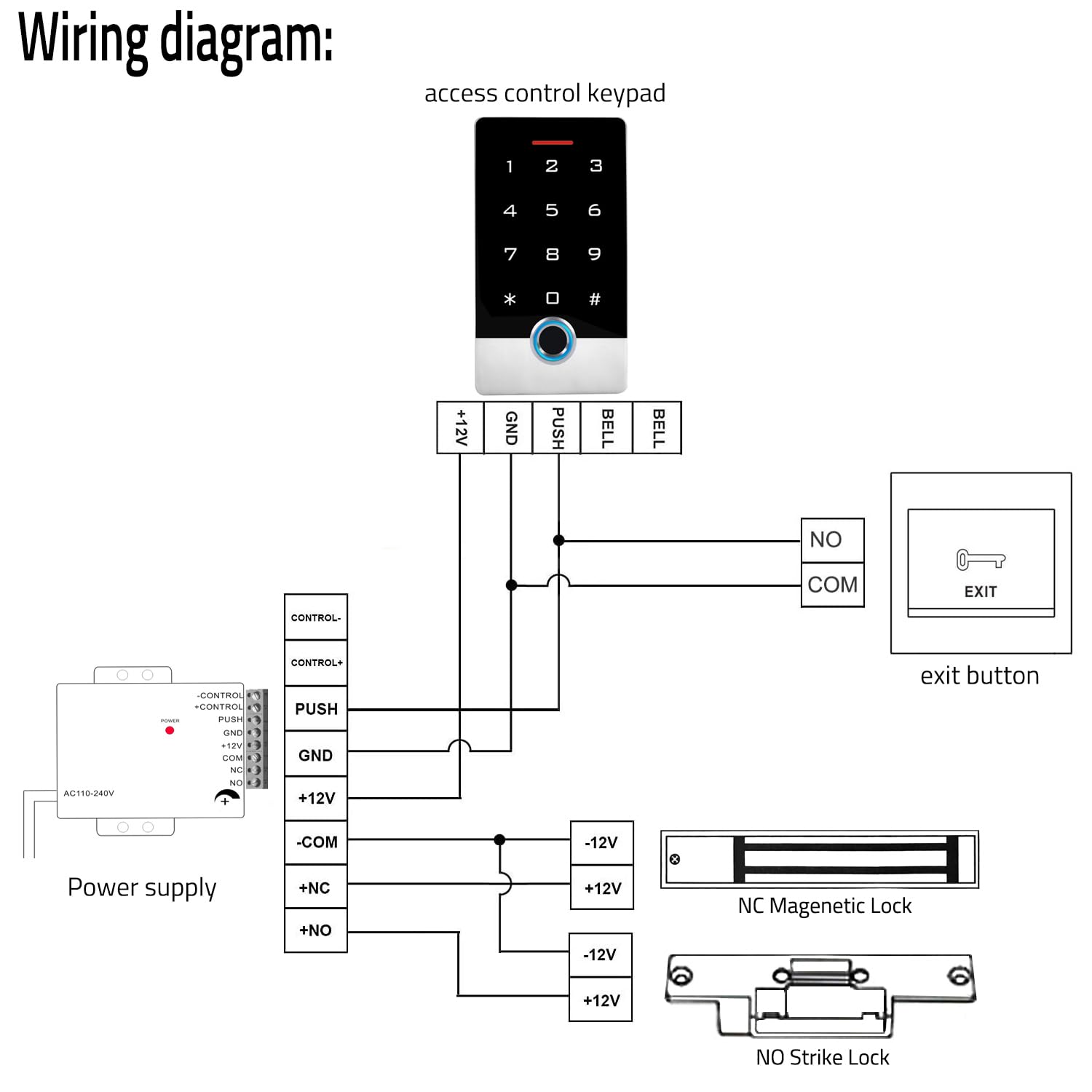

Built with a durable, tamper-resistant enclosure, it integrates seamlessly with electromagnetic locks (Mag-Locks), electric strike locks, exit switches, and door sensors. The device operates as a standalone unit, requiring no external computer connection for daily access management, making programming simple directly via the keypad.
Specification Table
Parameter
Specification Details
Model
SP-J155
Product Type
Standalone Door Access Controller / RFID Keypad Terminal
Authentication Modes
RFID Card / Key Fob, PIN Passcode, Card + PIN
User Capacity
1,000 to 2,000 Users / Cards (standard capacity)
RFID Frequency
125 kHz (EM-ID) or 13.56 MHz (Mifare)
Operating Voltage
12V DC ± 10%
Operating Current
< 100 mA
Lock Output Relay
NO / NC / COM Relay Output (3A Max)
Read Distance
3 – 8 cm
Interfaces / Terminals
Electric Lock Output, Exit Button, Door Bell Switch, External Alarm

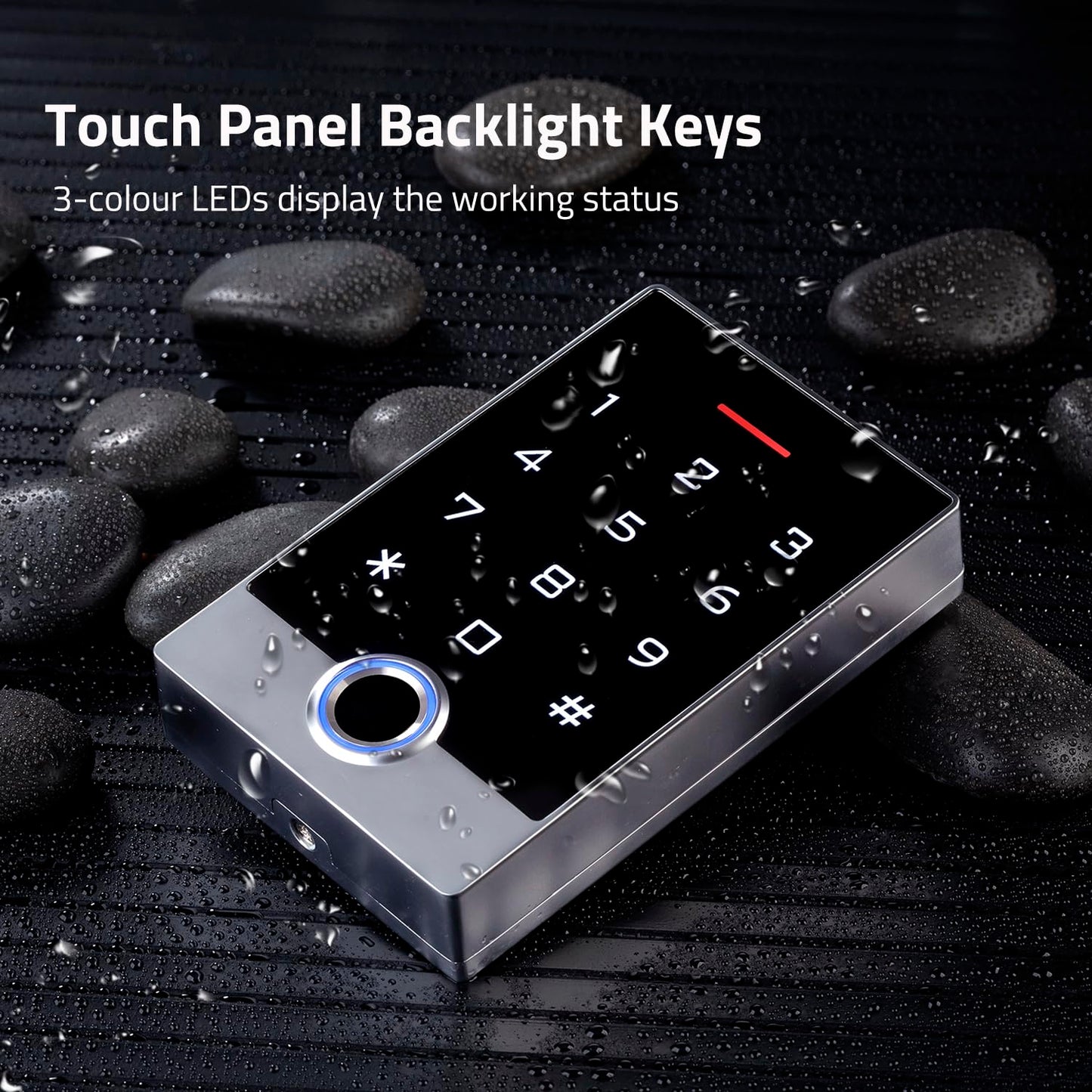

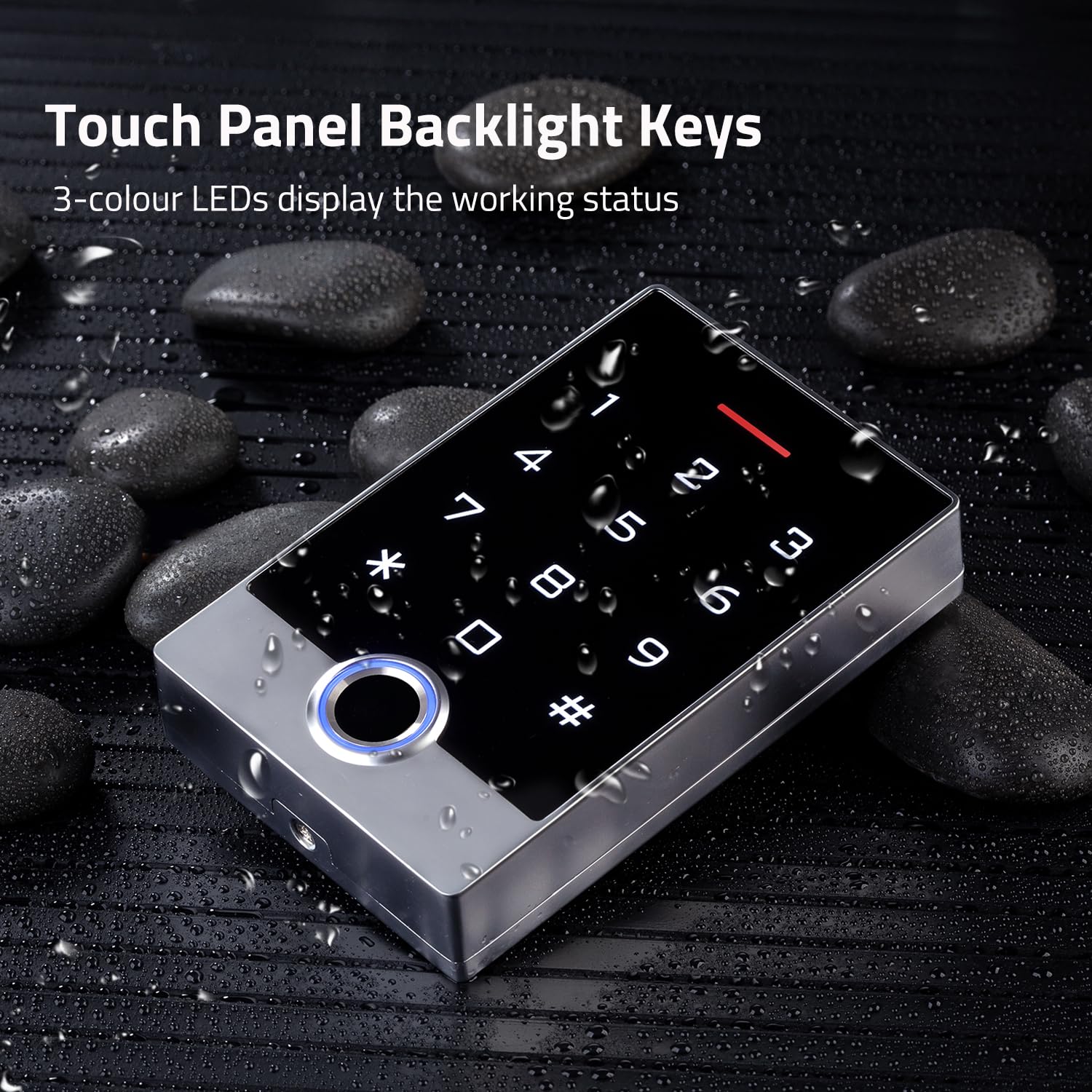

Keypad Type
Digital Keypad with LED Status Indicators / Backlight
