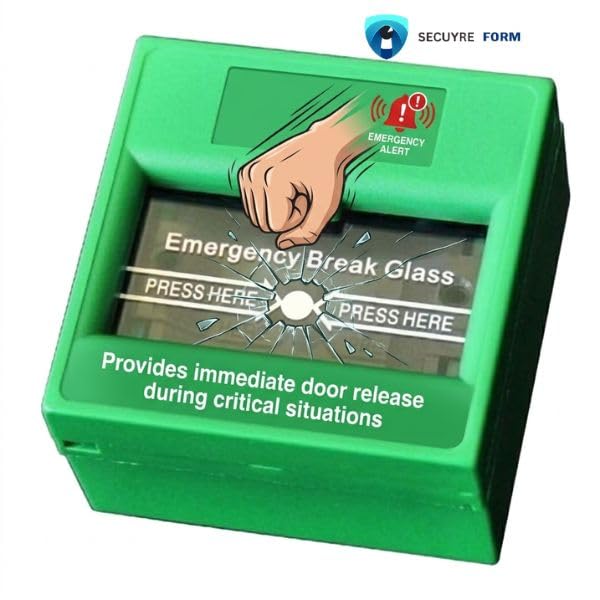

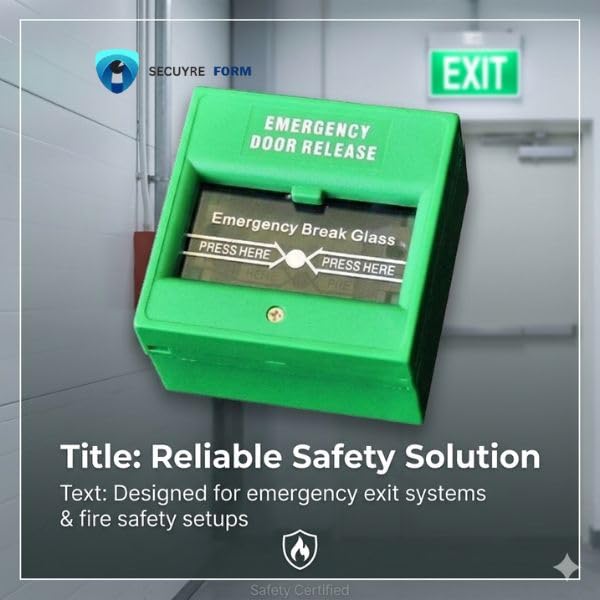

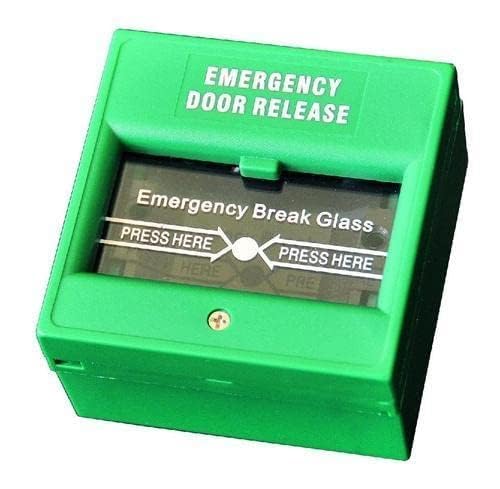

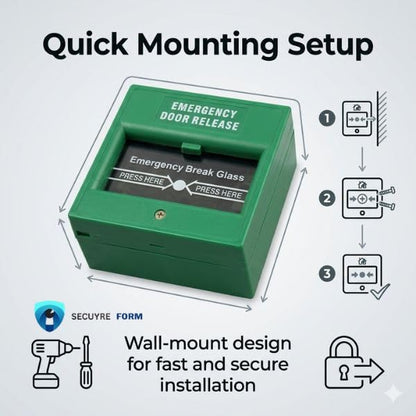

The SP-J156 Emergency Door Release (also known as a Break Glass / Resettable Emergency Call Point) acts as an essential safety switch for access control systems. Mounted near emergency exit doors, it allows occupants to override electric locks manually in the event of power failures, fires, or system malfunctions.

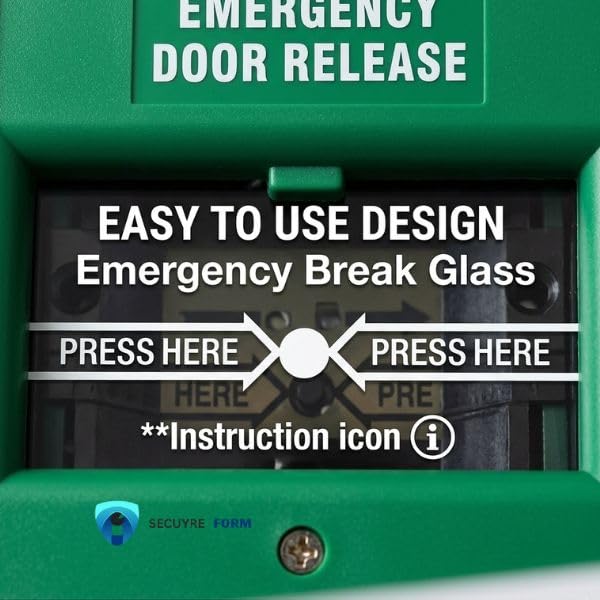

It typically features a high-impact plastic housing with a clear protective front cover and a trigger mechanism that either uses resettable plastic/glass or a breakable glass element to switch the electrical contact from NC (Normally Closed) to NO (Normally Open), immediately cutting power to the lock.
Specification
Details
Model
SP-J156
Product Type
Emergency Door Release / Emergency Call Point Switch
Operating Voltage
12V DC – 24V DC / 30V DC Max
Contact Rating
3A @ 36V DC Max
Output Contacts
NO / NC / COM (Changeover Contact)
Operating Mechanism
Resettable / Break-Glass push mechanism (includes key for manual reset)

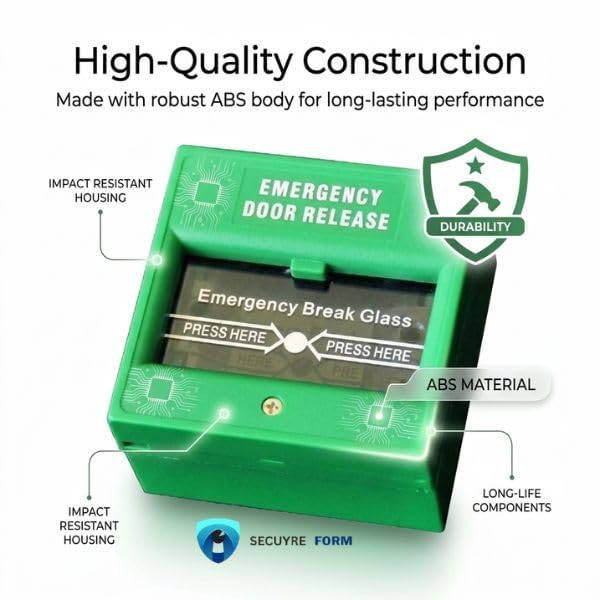

Material / Housing
Fire-retardant ABS Plastic
Color
Green (Standard for Emergency Exit) / Red (Fire Safety)

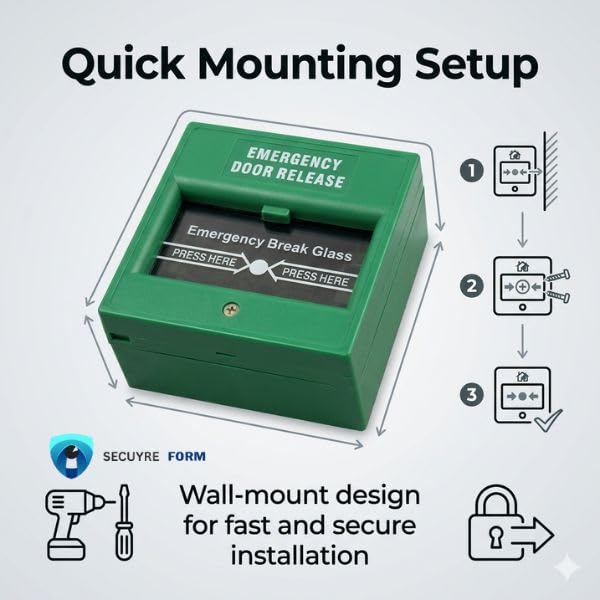

Installation / Mounting
Surface Mount or Flush Mount with standard back box
Dimensions
Approx. 86 × 86 × 50 mm

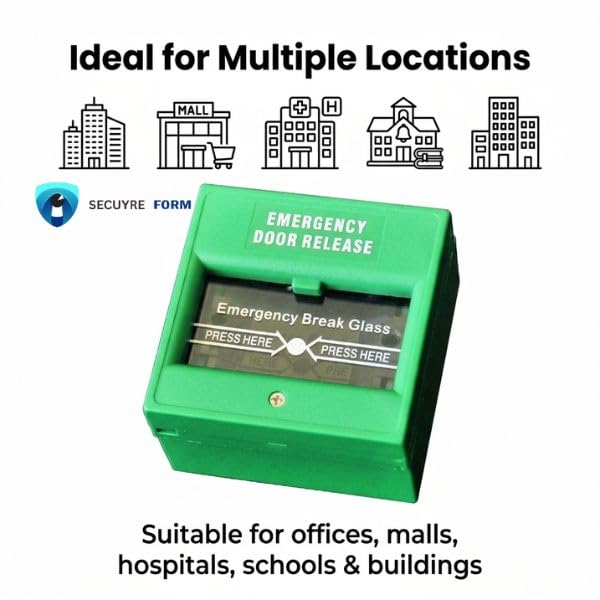

Application
Emergency Exit Doors, Access Control Systems, Mag-Lock Release
