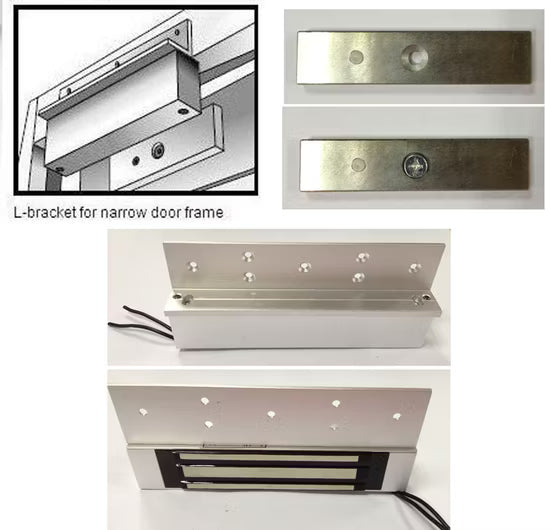

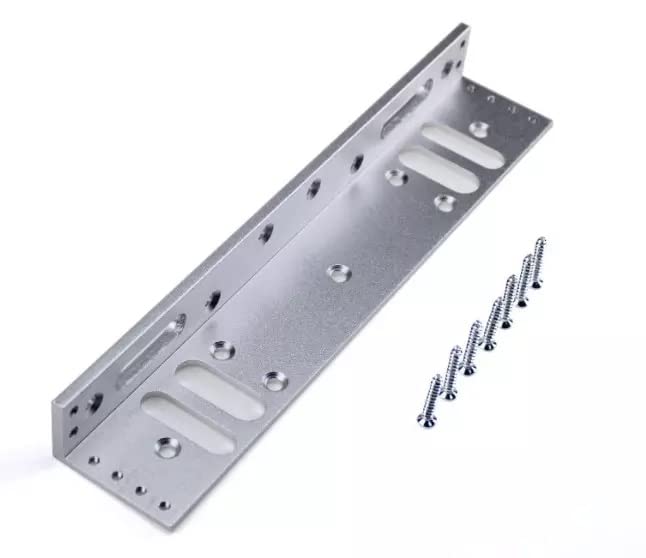

SP-L BRACKET LOCK
SP-L BRACKET LOCK
Couldn't load pickup availability
Heavy-Duty Construction: Fabricated from hardened aluminum alloy to prevent structural bowing, warping, or loosening under continuous magnetic tension or physical forced entry attempts.
Streamlined Installation: The bracket features pre-machined, factory-aligned screw tracks that correspond perfectly to the lock housing, drastically cutting down installation time and ensuring a level mount.

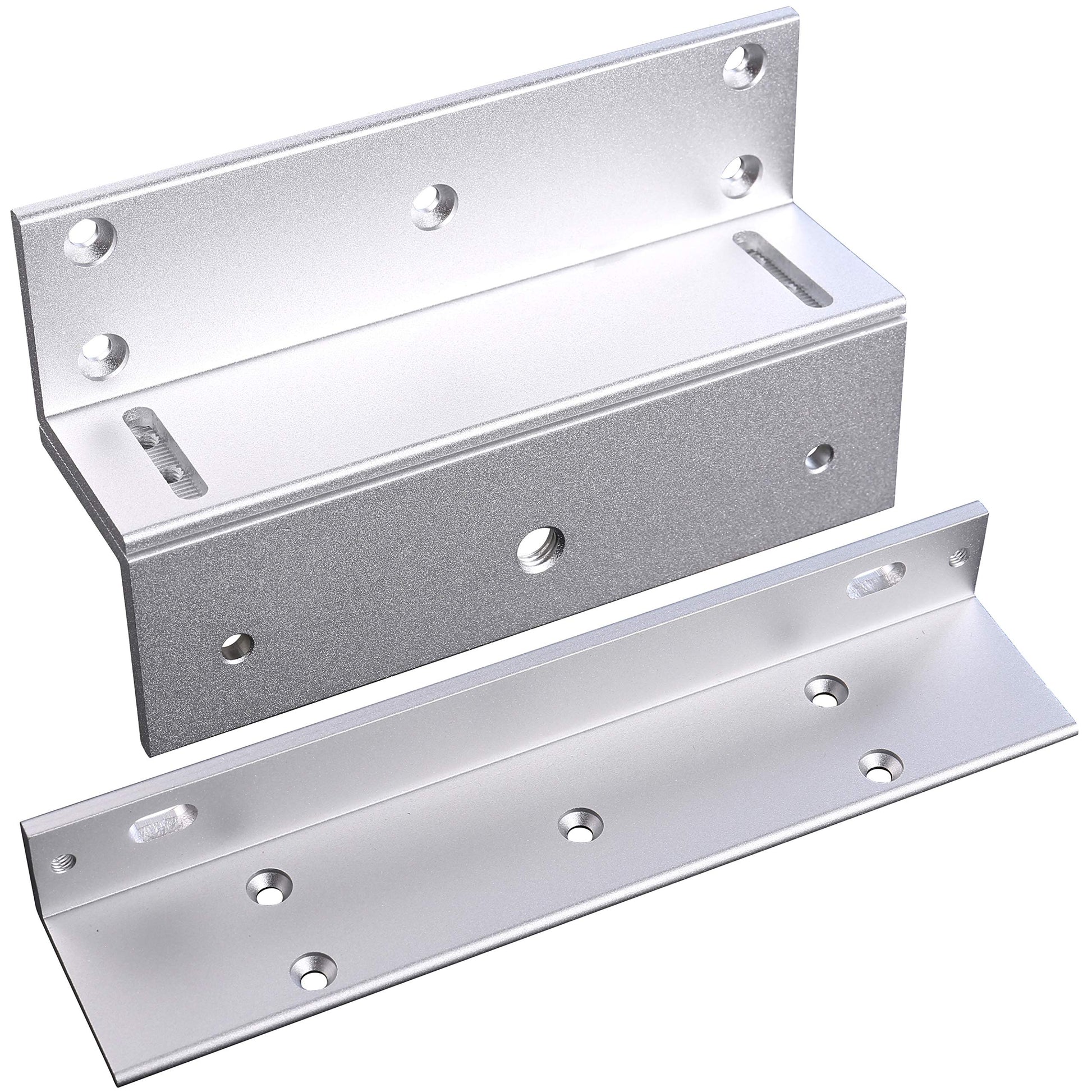

Adjustable Mounting Slots: The frame-side mounting points typically utilize slightly elongated oval slots, allowing installers to slide the bracket forward or backward to perfectly align with uneven or warped door frames.
Wire Management: Features a dedicated hollow pass-through channel to cleanly conceal and route power cables directly into the ceiling or frame, protecting wires from tampering or environmental damage.
| Feature / Specification | Standard Details |
|---|---|
| Holding Force Capacity | Supports up to 600 lbs / 272 kg magnetic locks |
| Material Composition | High-strength, architectural-grade Anodized Aluminum |
| Bracket Thickness | 3.5mm to 5mm (Heavy-gauge to eliminate flexing under load) |
| Surface Finish | Sandblasted Satin Aluminum / Matte Silver (corrosion-resistant) |
| Bracket Dimensions (Approx.) | 250mm (L) $\times$ 47mm (W) $\times$ 28mm (H)(Engineered to match standard 600 lbs lock chassis length) |
| Input Voltage (Lock) | 12V DC or 24V DC (Dual-voltage selectable) |
| Current Draw (Lock) | $\sim$500mA @ 12V DC / $\sim$250mA @ 24V DC |
| Pre-drilled Channels | Includes precise screw holes, guide-pin slots, and wire-routing cutouts |
