Shieldplus

SP- SINGLE MODE SINGLE FIBER GIGA MEDIA CONVERTER- 10/100/1000 MBPS

SP- SINGLE MODE SINGLE FIBER GIGA MEDIA CONVERTER- 10/100/1000 MBPS

Rs. 1,475.00
Rs. 1,475.00
Sale Sold out
Taxes included.
No. of pcs.

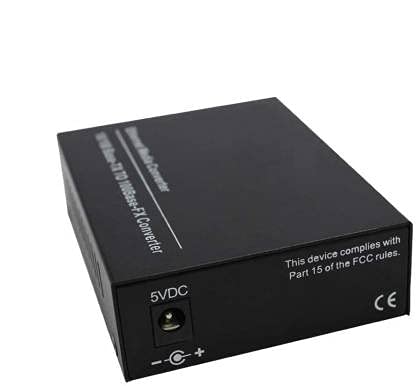

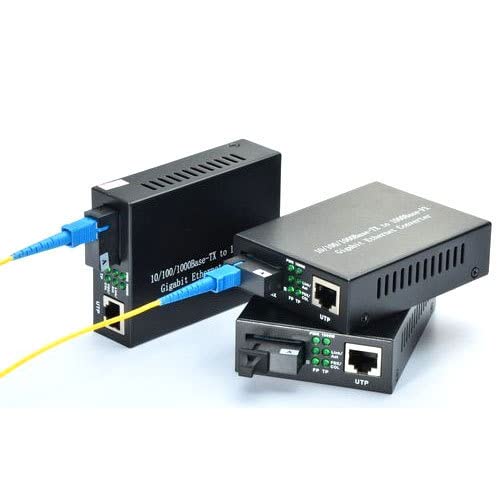

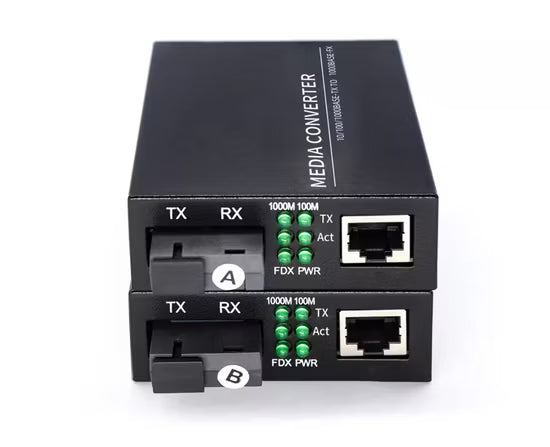

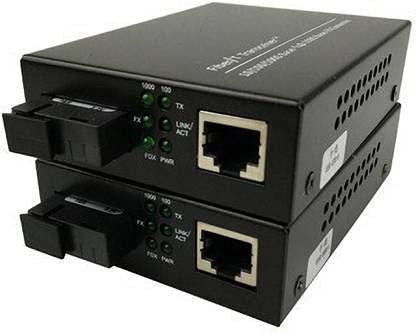

Single Mode Single Fiber Giga Media Converter – 10/100/1000 Mbps

This media converter converts 10/100/1000 Mbps Ethernet signals to single-mode single-fiber, ideal for backbone networking, data centers, IP CCTV, ISPs, and telecom applications. It is plug-and-play with LED indicators for easy monitoring and comes in a rugged metal casing for durability.

Key Features

  • Converts 10/100/1000 Mbps Ethernet to single-mode single-fiber
  • Saves fiber cost using single-fiber technology (transmit & receive on one strand)
  • Extends networks up to 20 km (expandable models up to 80 km available)
  • Auto-negotiation for speed and duplex ensures compatibility with all Ethernet devices
  • Plug-and-play operation with LED status indicators
  • Rugged metal casing ensures stability and durability

Specifications

Feature Specification
Model SP - Single Mode Single Fiber Giga Media Converter – 10/100/1000 Mbps
Standards IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-LX
Data Rate 10/100/1000 Mbps auto-negotiation
Transmission Medium Copper: Cat5/5e/6 UTP cable (up to 100m)
Fiber: Single-mode, single fiber
Fiber Port Connector SC / FC / ST (model dependent)
Transmission Distance Up to 20 km (standard), higher options available: 40/60/80 km
Wavelength Tx: 1310 nm, Rx: 1550 nm (and vice versa on paired unit)
Duplex Mode Full duplex / Half duplex (auto)
Auto MDI/MDIX Supported
LED Indicators Power, FX Link/Act, TX Link/Act, Speed, Duplex
Power Supply DC 5V external power adapter
Housing Durable metal enclosure for heat dissipation and EMI protection
Operating Temperature 0°C ~ 50°C
Storage Temperature -20°C ~ 70°C
Humidity 10% ~ 90% non-condensing
Dimensions Compact desktop or rack-mount design (model dependent)
