Shieldplus
SP-U BRACKET LOCK
SP-U BRACKET LOCK
Regular price
Rs. 236.00
Regular price
Sale price
Rs. 236.00
Unit price
/
per
Taxes included.
Couldn't load pickup availability
No-Drill Installation: Provides a completely non-destructive mounting option for delicate tempered glass doors, preserving the aesthetic and structural integrity of the glass.
Heavy-Duty Clamping Force: Engineered to distribute clamping pressure evenly across the glass surface, ensuring the bracket will not slide or pull off under the lock's 600 lbs of holding tension.
Glass Protection: Thick rubber gaskets cushion the glass pane, dampening the vibrations and impact force generated every time the door closes and the magnet engages.
Clean Visual Appearance: The brushed aluminum finish mirrors the clean, modern look of high-end corporate glass partitions.
| Feature / Specification | Standard Details |
|---|---|
| Compatible Lock Size | Standard 600 lbs (272 kg) EM Locks |
| Glass Thickness Supported | 10mm to 14mm (Standard commercial tempered glass) |
| Material Composition | High-strength, architectural-grade Anodized Aluminum |

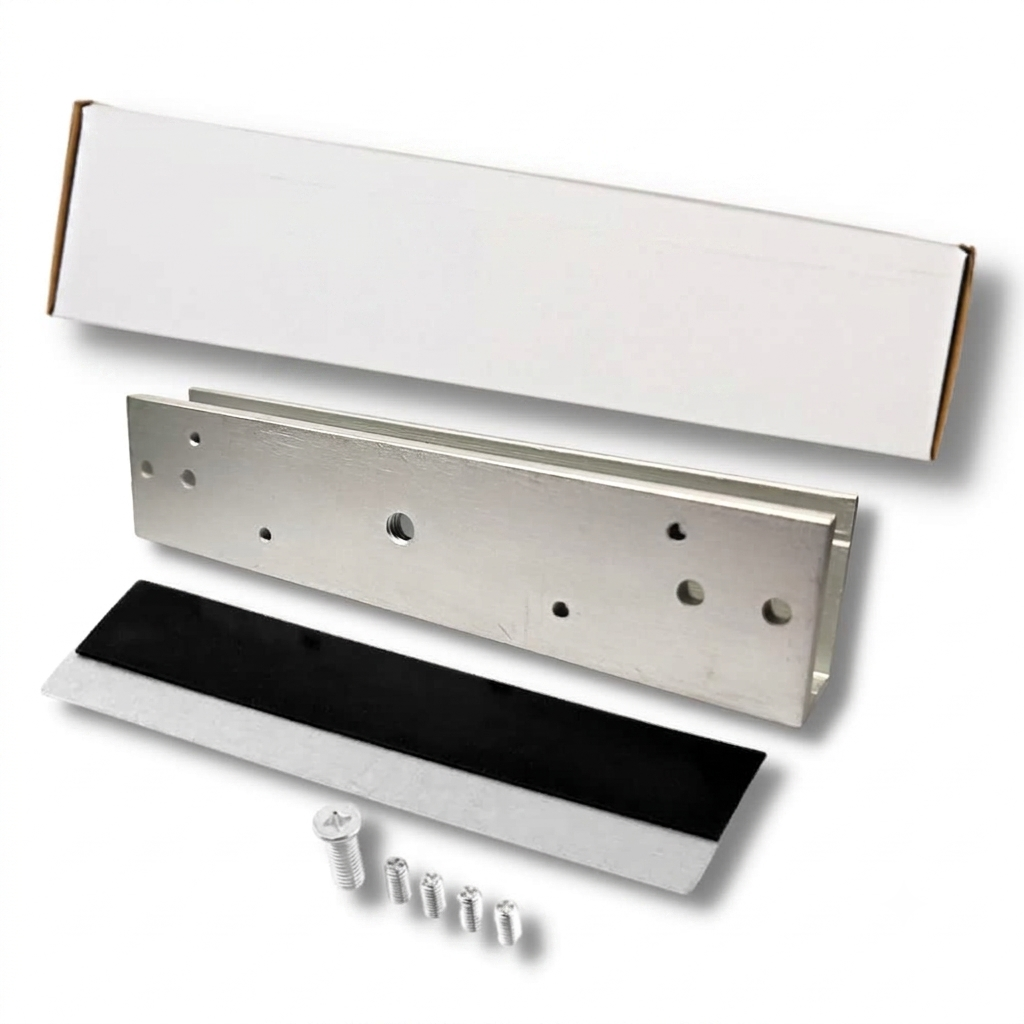

| Protective Inserts | Included rubber/neoprene padding cushions to prevent glass-to-metal contact |
| Bracket Dimensions (Approx.) | 180mm (L) $\times$ 45mm (W) $\times$ 28mm (H)(Matches the length and footprint of a standard 600 lbs armature plate) |
| Input Voltage (Lock) | 12V DC or 24V DC (Dual-voltage selectable) |
| Current Draw (Lock) | $\sim$500mA @ 12V DC / $\sim$250mA @ 24V DC |
| Finish | Sandblasted Satin Aluminum / Matte Silver |
