Shieldplus

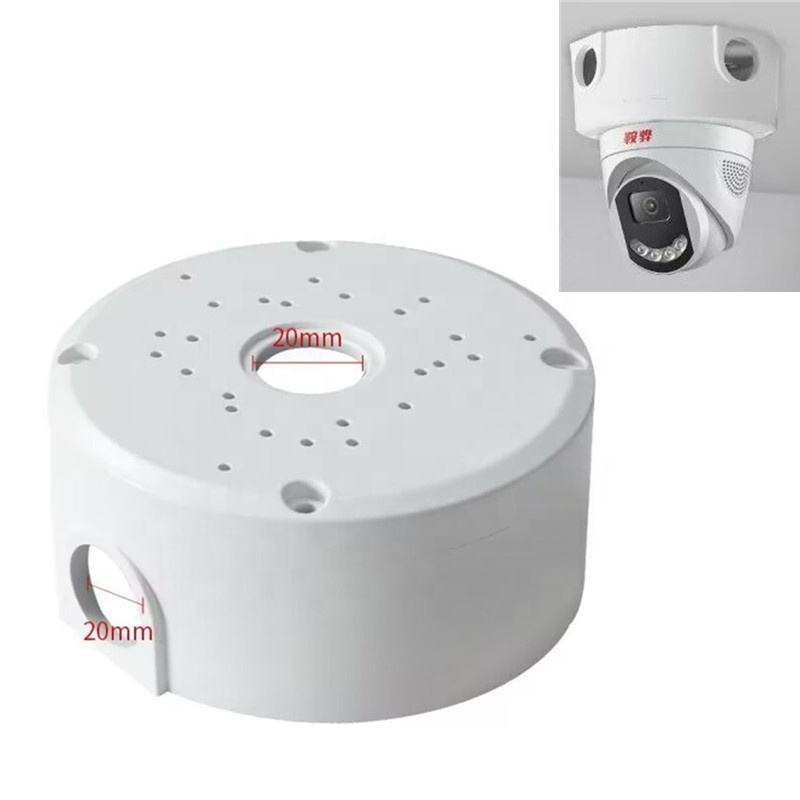

SP- WD135 PLASTIC JUNCTION BOX ROUND WITH LOCK
SP- WD135 PLASTIC JUNCTION BOX ROUND WITH LOCK
Couldn't load pickup availability
Secure Key Lock Mechanism: Equipped with an integrated key-lock feature that secures the cover base to prevent cable cutting, unplugging, or unauthorized access to camera connections.
Compact Round Design: Matches the circular footprint of standard CCTV dome, turret, and bullet camera bases, providing a neat and flush installation.
Weatherproof Protection: Features a rubber sealing ring along the lid edge and rubber grommets on cable knockouts to shield internal wiring from rain, moisture, and dust.
Durable Construction: Built from UV-stabilized ABS plastic to withstand prolonged exposure to sunlight, heat, and physical impacts without warping or deteriorating.
Concealed Cable Routing: Hides excess wire length, DC power plugs, and BNC/RJ45 connectors directly beneath the camera base, improving both security and overall aesthetic appearance.
| Feature | Specification |
|---|---|
| Material | High-Impact ABS Plastic (UV-Resistant) |
| Shape / Form Factor | Round / Circular |
| Lock Type | Integrated Keyed Lock |
| Protection Rating | IP65 (Outdoor Waterproof & Dustproof) |

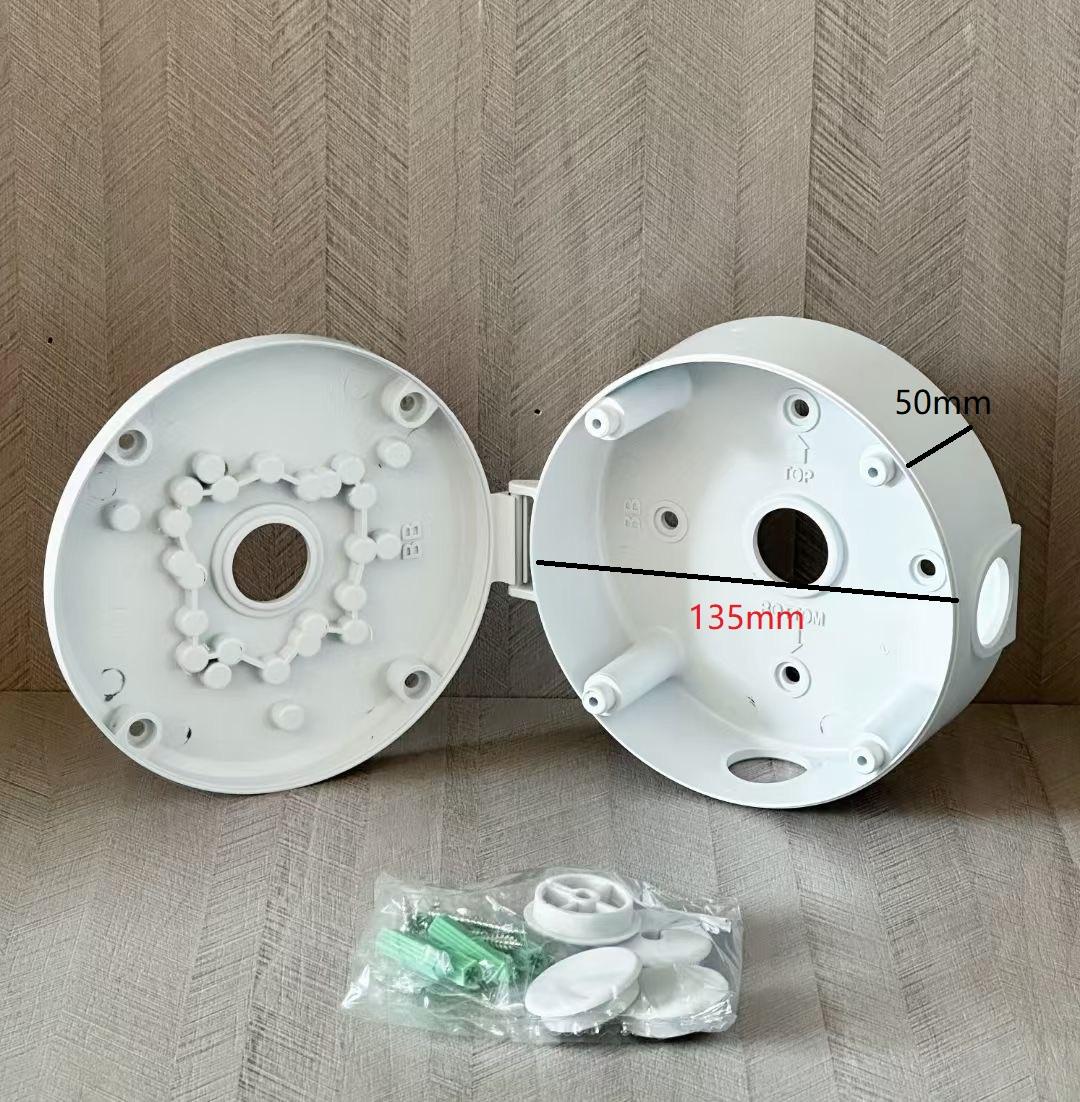

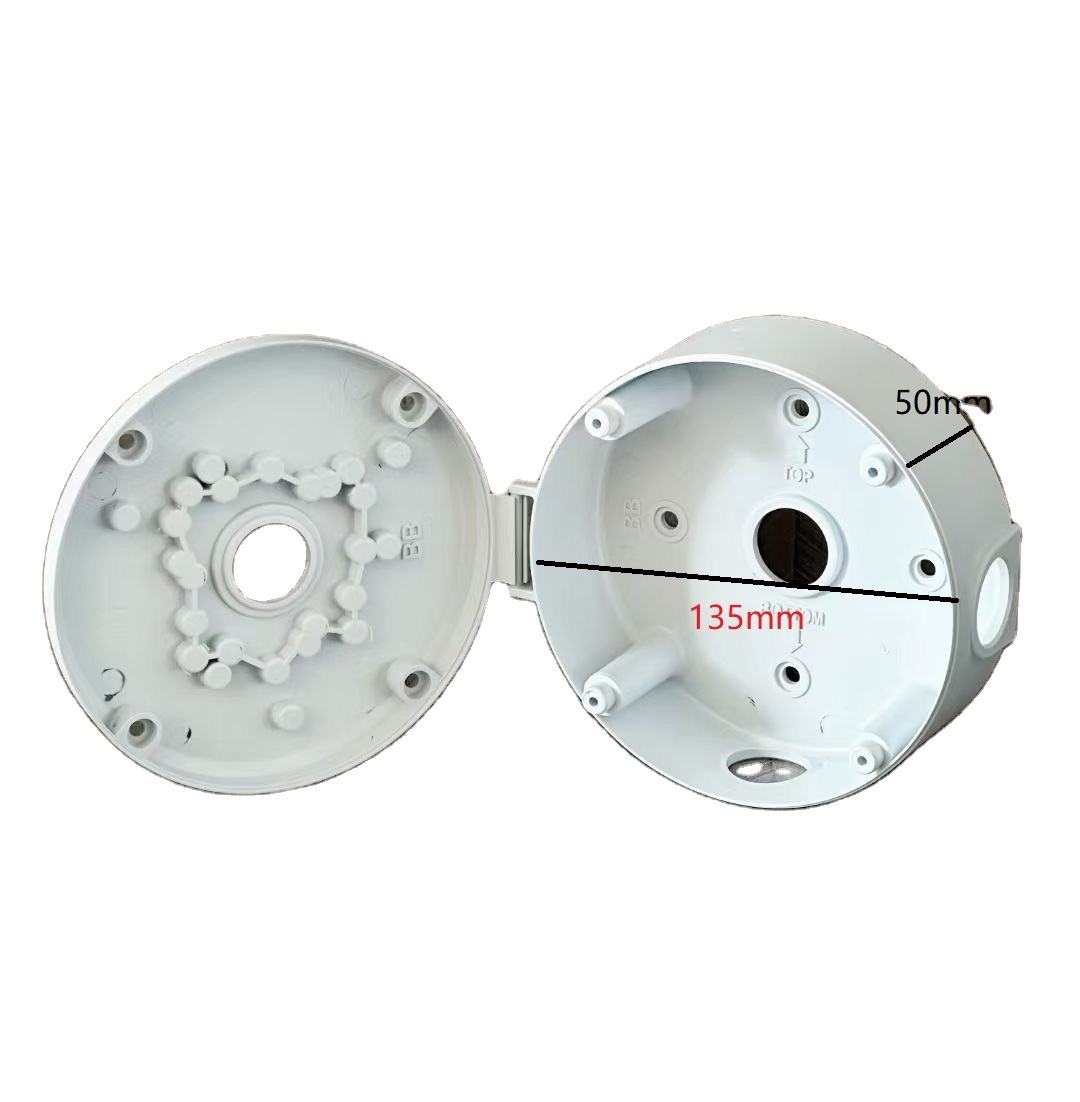

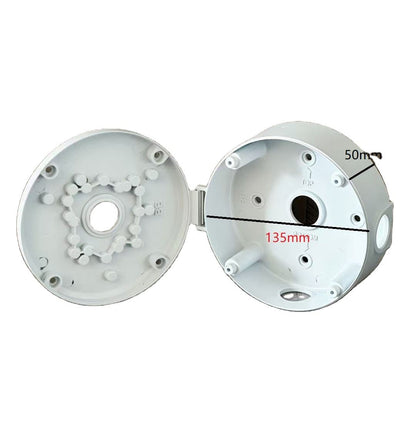

| Dimensions (Diameter × Depth) | Approx. 135 mm × 50 mm (5.3" × 2.0") |
| Color | White / Off-White |
| Mounting Style | Surface Wall / Ceiling Mount |
| Cable Entry Points | Rear Knockout & Side Threaded Entry with Rubber Grommets |
| Load Capacity | Up to 3.0 kg (6.6 lbs) |
| Operating Temperature | -30°C to +60°C (-22°F to +140°F) |
