Shieldplus

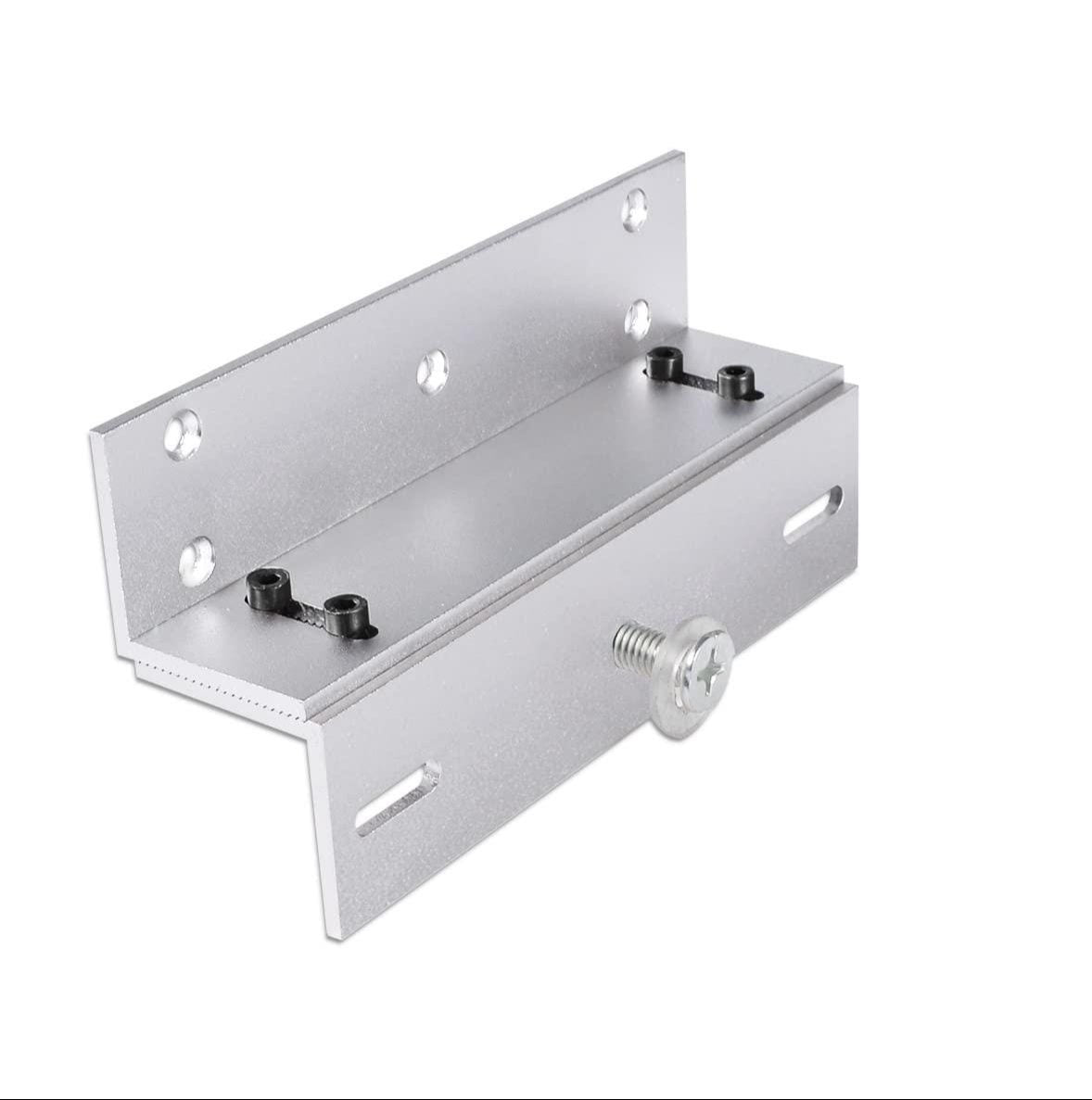

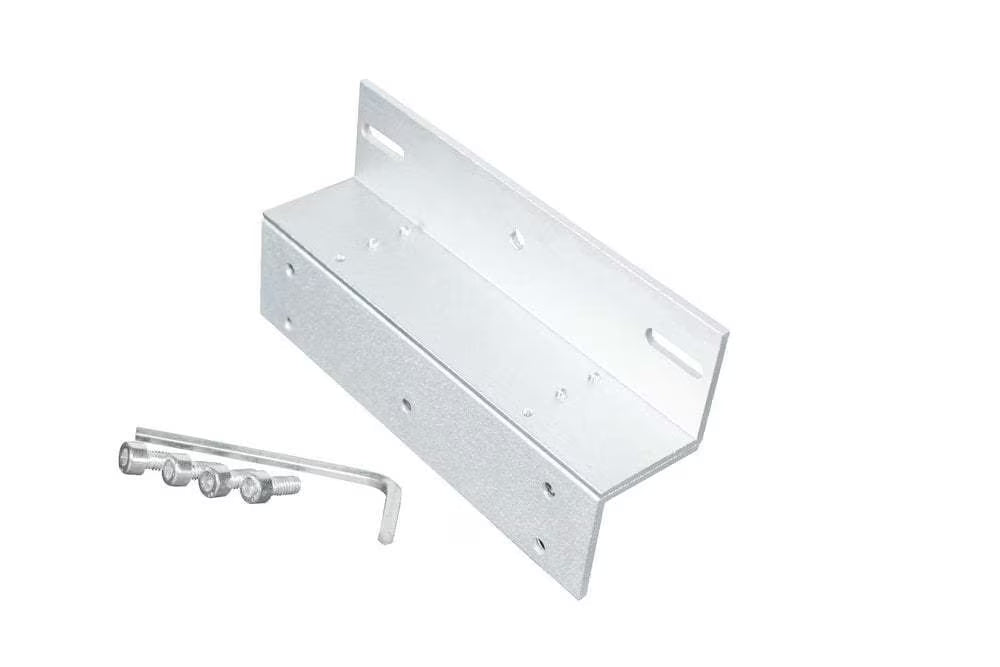

SP-Z BRACKET LOCK
SP-Z BRACKET LOCK
Regular price
Rs. 472.00
Regular price
Sale price
Rs. 472.00
Unit price
/
per
Taxes included.
Couldn't load pickup availability

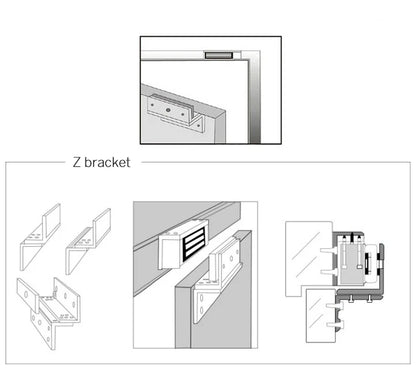

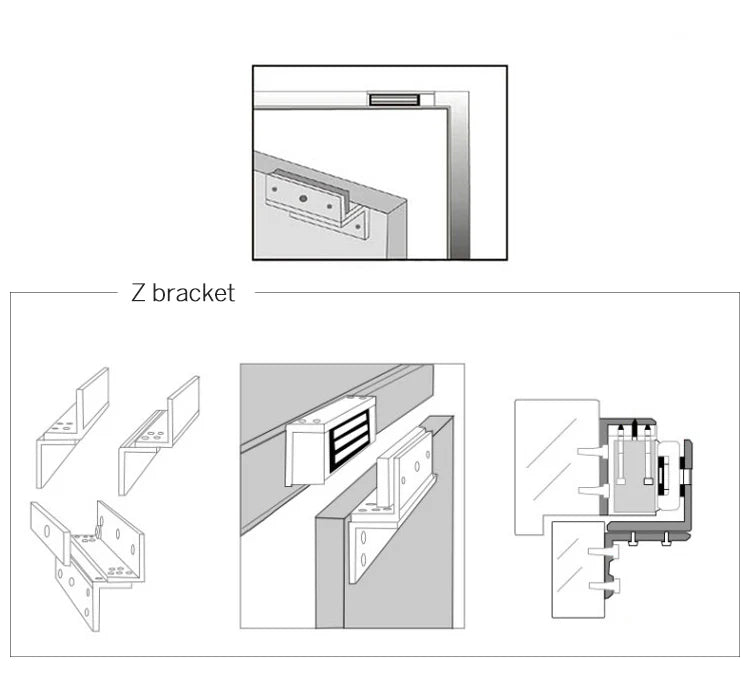

Enables In-Swing Security: Provides the necessary structural offset so that inward-opening doors can utilize the clean security benefits of magnetic locks.
Fully Adjustable Depth: Features slotted, sliding adjustment channels that let installers shift the plate forward or backward to accommodate different door thicknesses and frame depths.
Anti-Twist Rigid Build: Made from heavy-duty hardened aluminum alloy to prevent the bracket from bending, flexing, or working loose when subjected to the regular 600 lbs pulling force.
Clean Aesthetics: Designed with a matching satin finish that blends seamlessly with standard commercial door hardware and aluminum frames.
| Feature / Specification | Standard Details |
|---|---|
| Compatible Lock Size | Standard 600 lbs (272 kg) EM Lock Armature Plates |
| Material Composition | High-strength, architectural-grade Anodized Aluminum |
| Structure | Multi-piece adjustable design (to fit various door thicknesses) |
| Bracket Thickness | 3.5mm to 5mm (Heavy-gauge to prevent bending under pressure) |
| Dimensions (Approx.) | 180mm (L) $\times$ 50mm (W) $\times$ 50mm (H)(Matches the length of a standard 600 lbs armature plate) |
| Finish | Sandblasted Satin Aluminum / Matte Silver |
| Adjustability | Slotted mounting tracks for depth and alignment fine-tuning |
